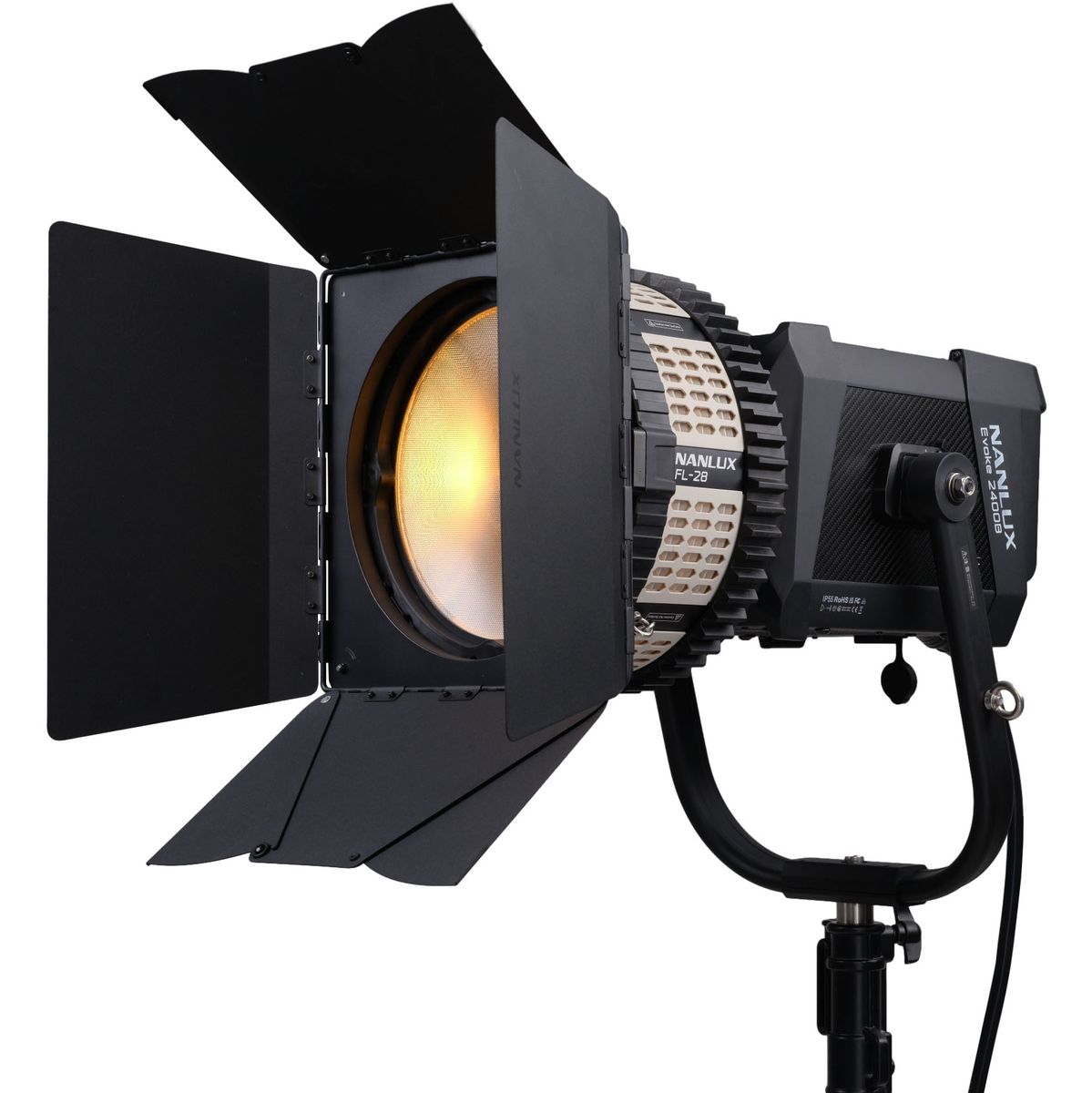

Nanlux FL-28 Fresnel Lens

Nanlux FL-28 Fresnel Lens

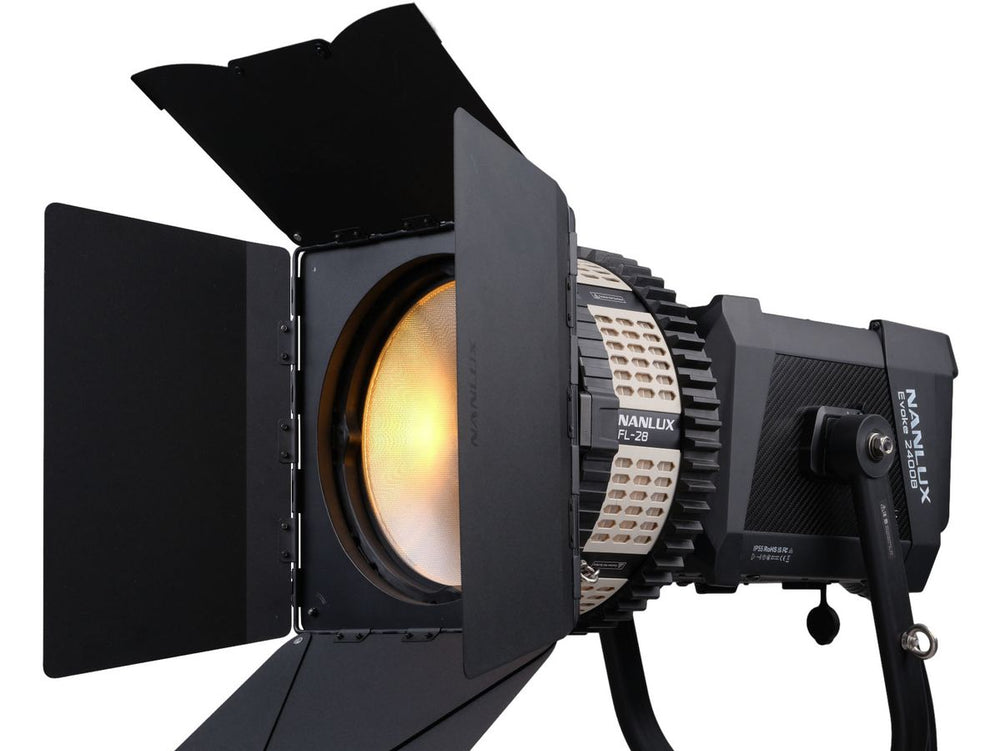

The Nanlux FL-28 Fresnel Lens is a lightweight and compact solution equipped with an NL-mount, specifically designed for the Evoke series of LED lights. This lens is ideal for those looking for a portable and efficient Fresnel option that simplifies both transport and setup, making it particularly advantageous for smaller production teams or for use in confined spaces such as trucks.

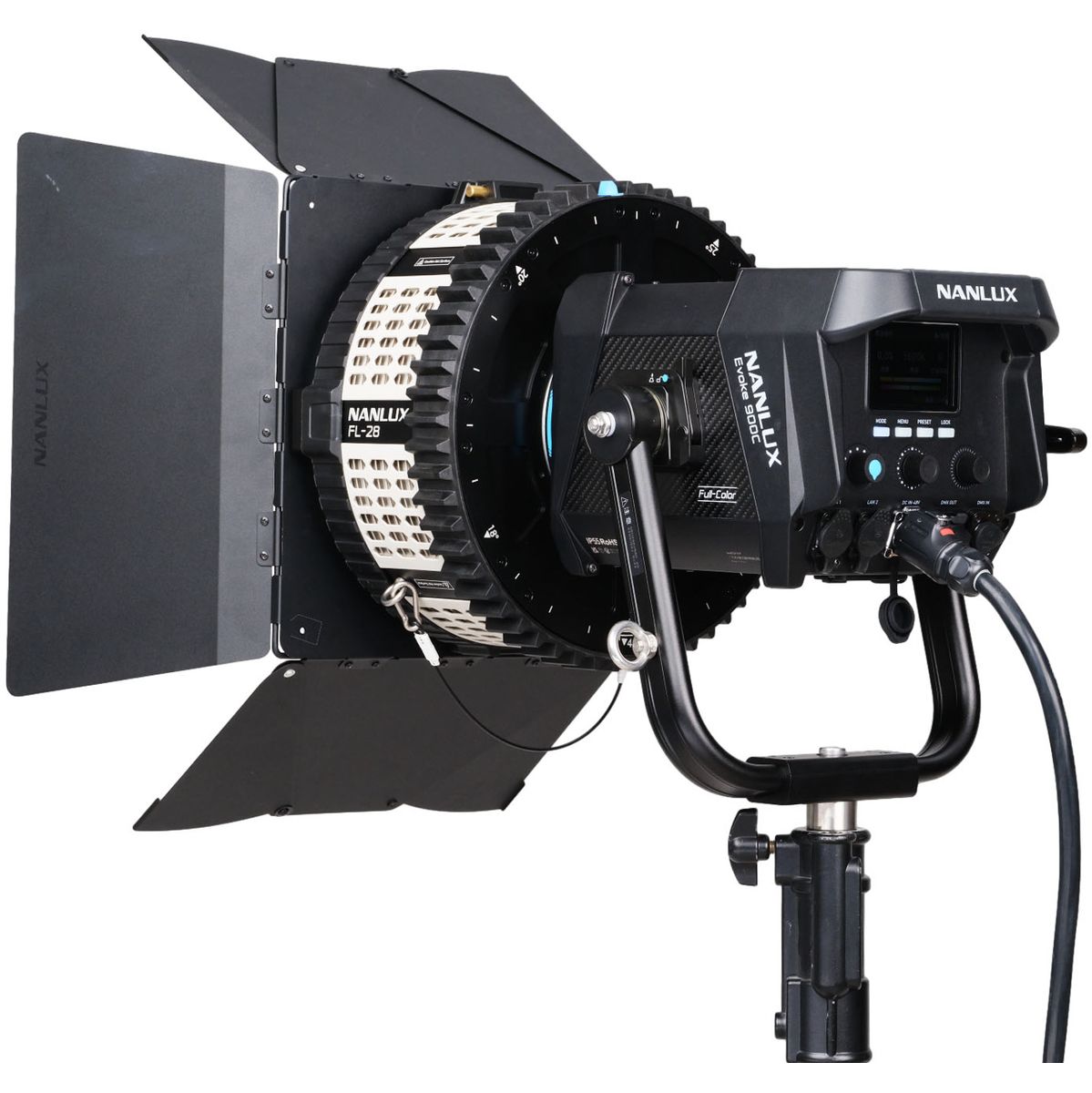

The FL-28 features an adjustable beam angle ranging from 17° to 43° and weighs only 3.86 kg (excluding the barndoor set). When paired with the available Evoke 1200B LED light, it can produce an impressive output of 50,330 lux at a distance of 3 meters (5600K, 17° beam angle). Similarly, when used with the Evoke 900C, the FL-28 achieves an output of 38,580 lux at the same distance and conditions.

This lens utilizes the advanced Nanlux NL mount system, which is designed to optimize communication between the lens and the Evoke fixture, allowing for precise performance adjustments. The FL-28 is mainly crafted for the Evoke 1200, Evoke 1200B, and Evoke 900C lights, and it is compatible with the latest Evoke 2400B as well. However, when attached to the 2400B, the Fresnel lens will limit its output to approximately 25,610 lux at 3 meters (5600K, 17° beam angle) for safe operation.

Key Features of the Nanlux FL-28 Fresnel Lens

• Lightweight and compact design with NL-mount
• Easy to transport and set up
• Optimally designed for Evoke series LED lights

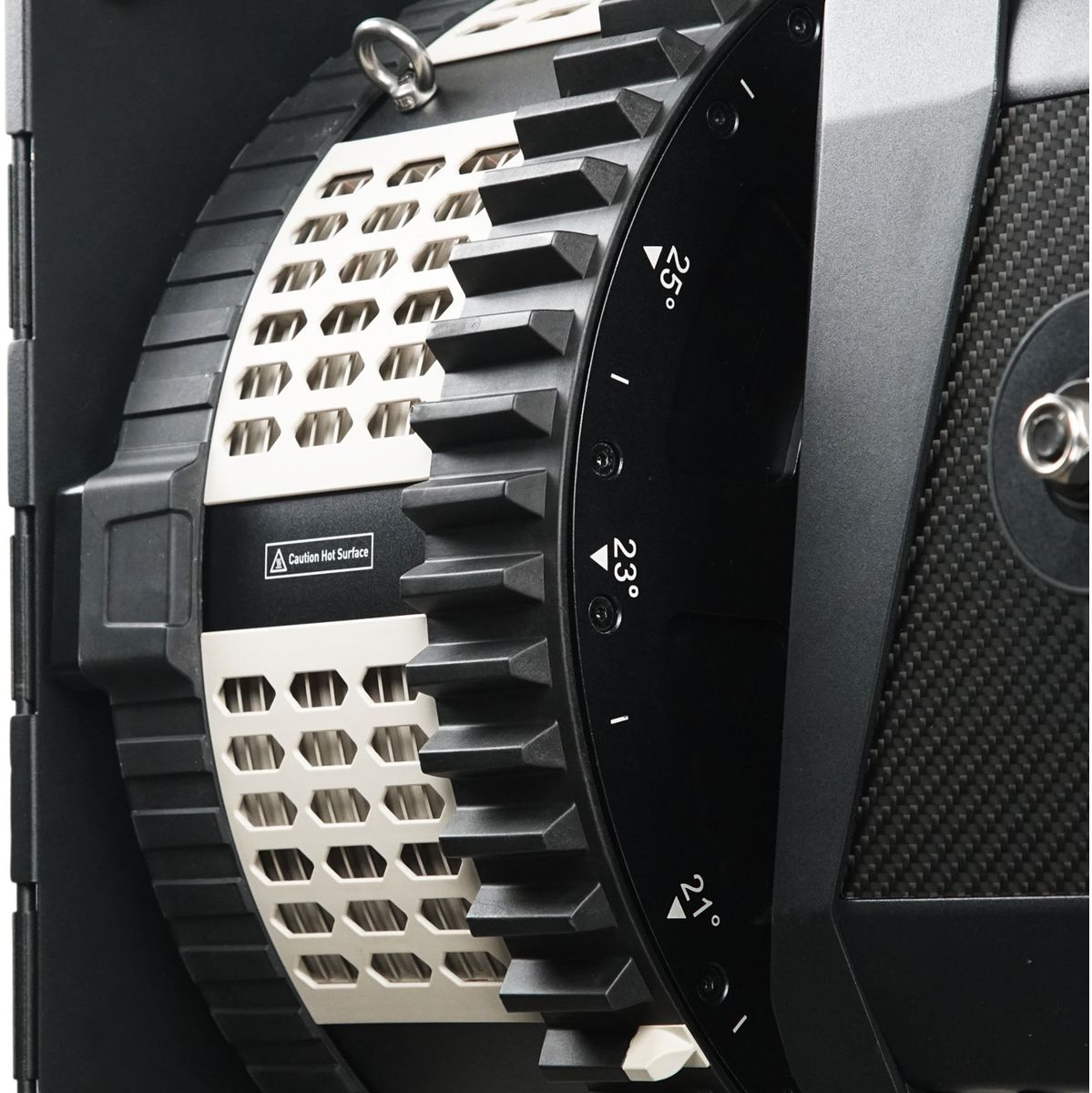

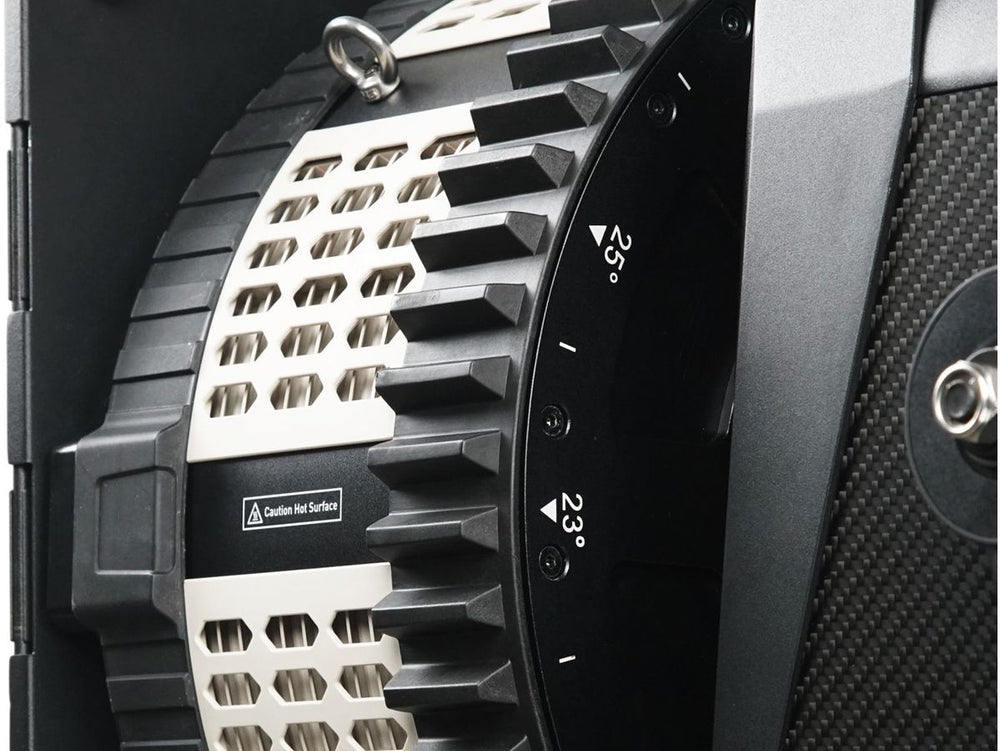

• Adjustable beam angle from 17° to 43°

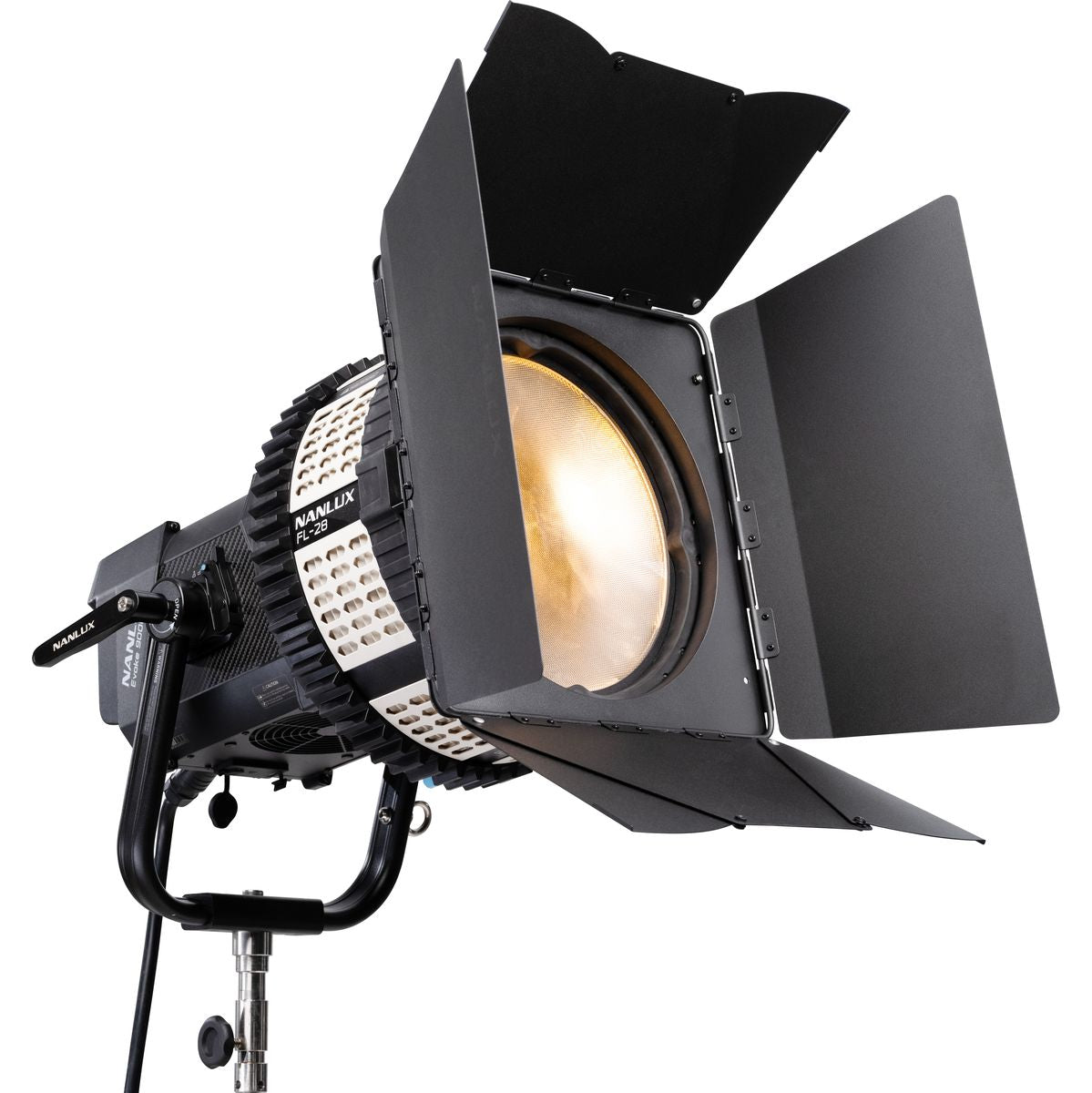

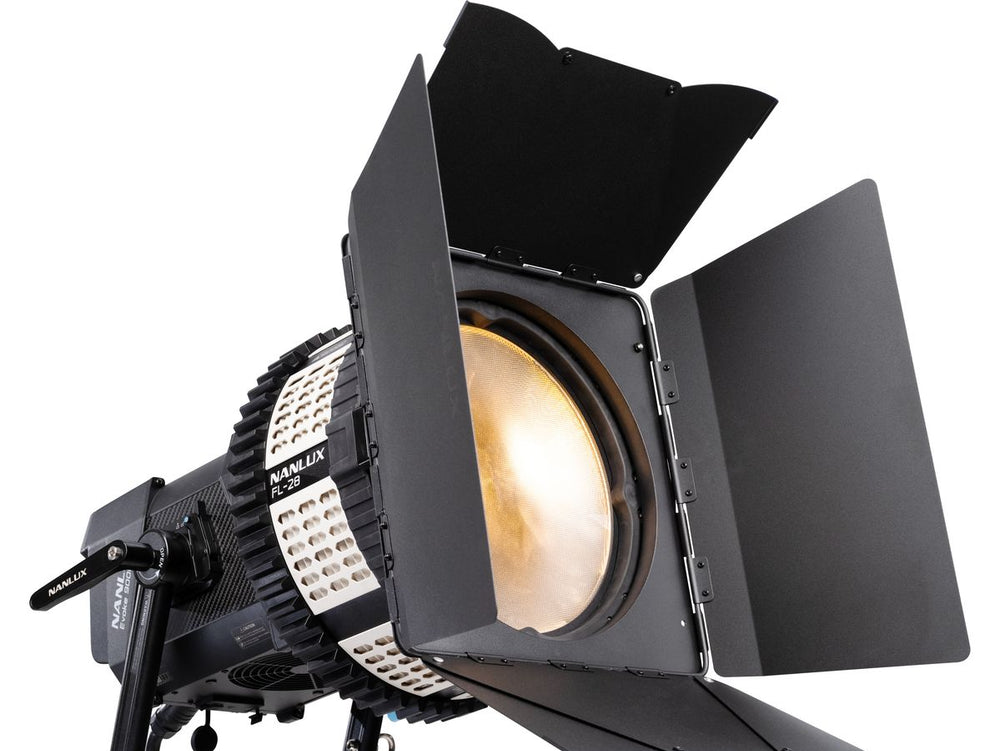

• Includes a barndoor set for light control
• Dimensions: 422.3 x 360.6 x 226.4 mm (lens + barndoor set)
• Lens weight: 3.86 kg
• Weight of the barndoor set: 1.83 kg

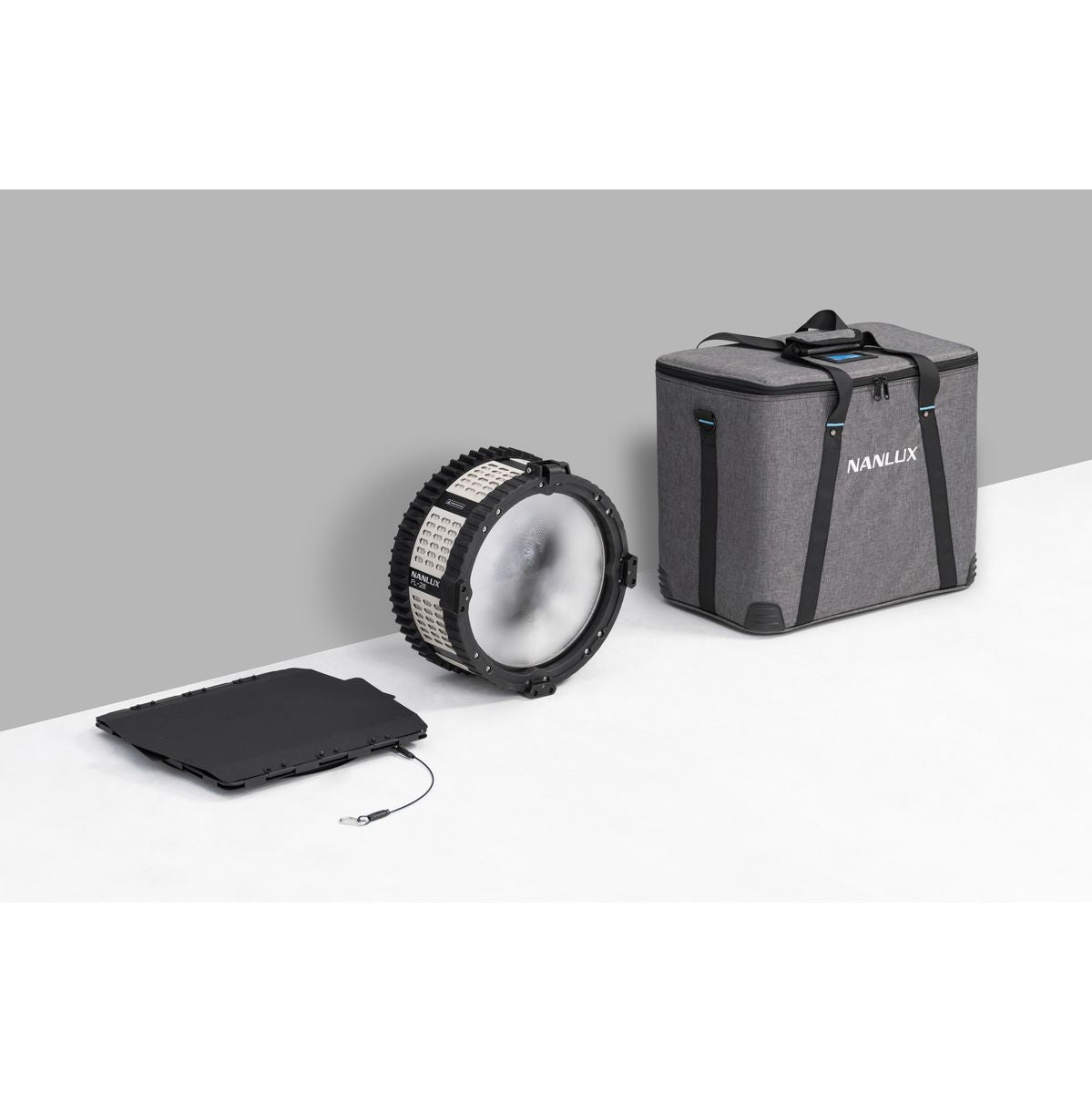

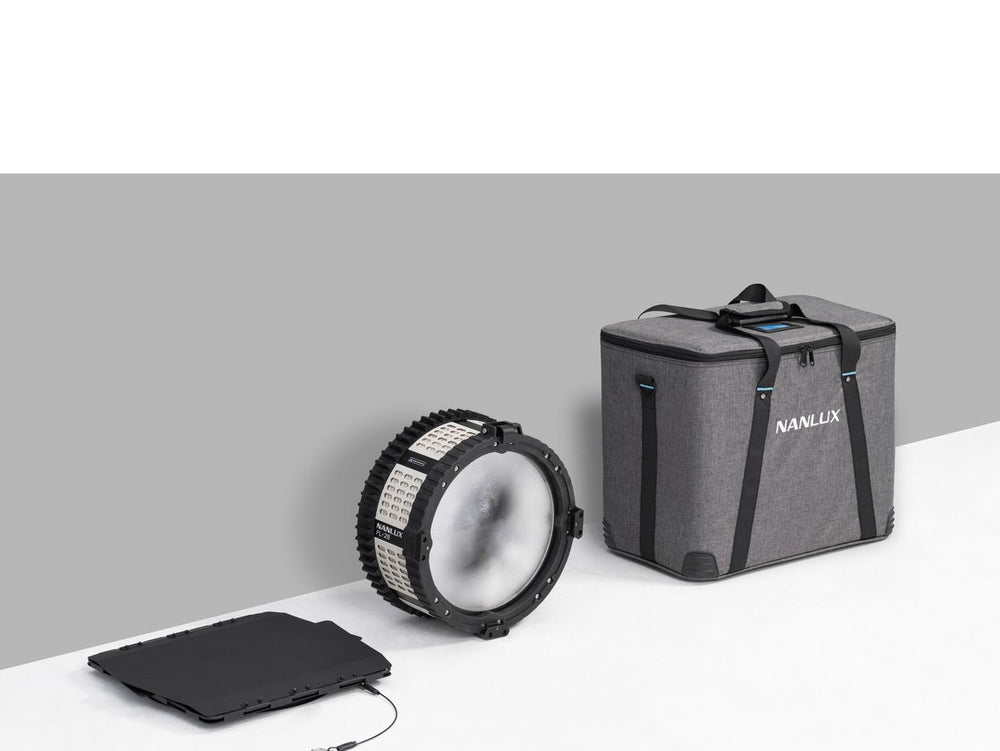

Package Contents

• 1 x Nanlux FL-28 Fresnel Lens
• 1 x Barndoor Set
• 1 x Carrying Case
