SWIT CIMO-290S CIMO-290S | 290WH 250W High Load V-Mount Battery w/ USB-C OLED

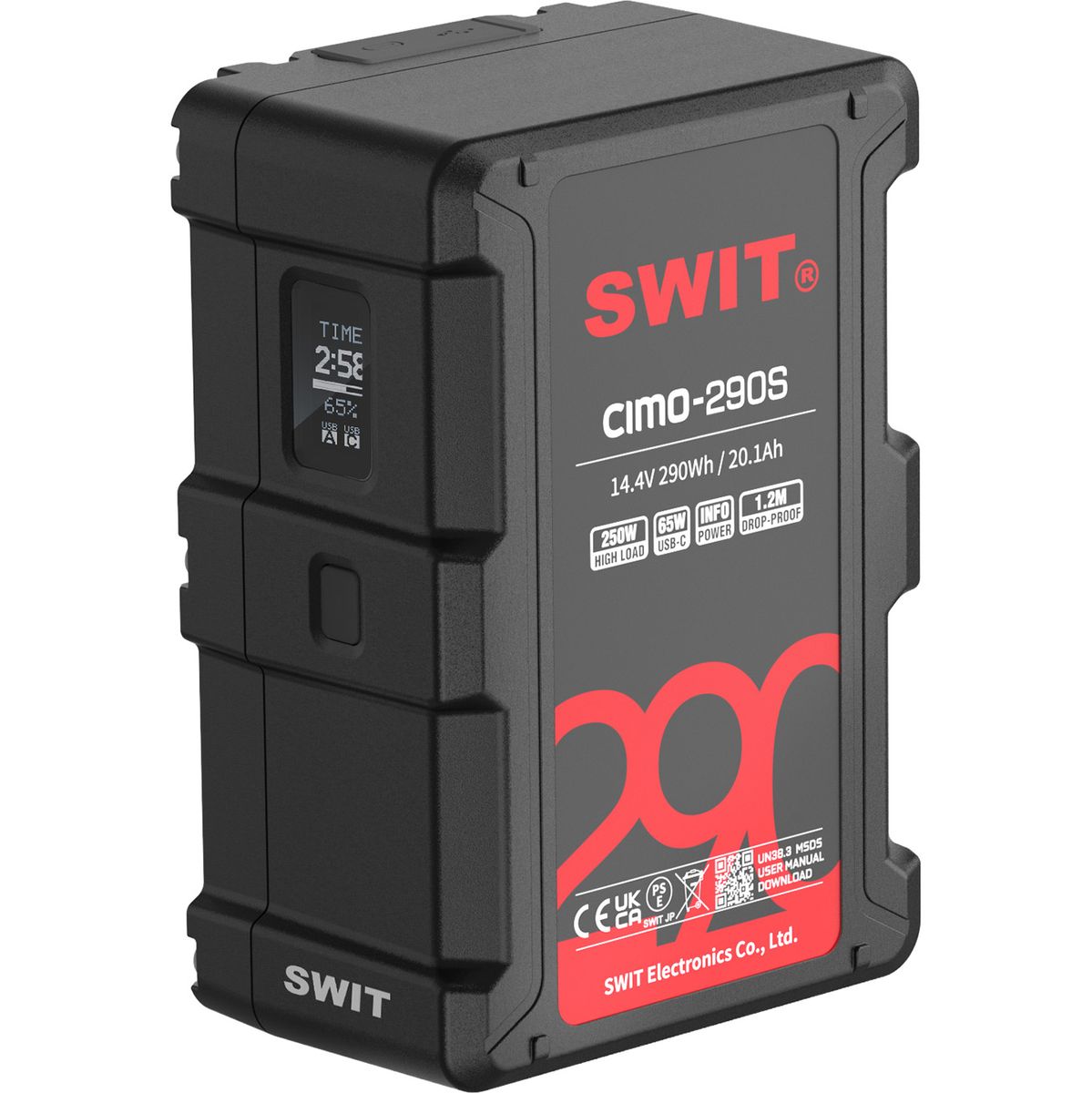

SWIT CIMO-290S 290Wh High-Load V-Mount Battery with USB-C

Built for demanding cinema productions, this 290Wh V-mount battery combines high output, versatile charging options, and a rugged design in one reliable power solution. With a 250W continuous load and 335W peak output, it is ready to power professional cameras and multiple on-camera accessories at the same time.

High Capacity, Strong Performance

The battery uses 24 high-density ternary lithium cells with a nominal voltage of 14.4V, delivering 290Wh / 20.1Ah of power. Thanks to its cell chemistry, it offers excellent efficiency in compact form and dependable performance in colder environments, operating down to -20°C.

Even at just 1% remaining capacity, it can still provide a minimum 250W / 20A load, making it a solid choice for power-hungry cine cameras and accessory setups. The high-load design also helps maintain longer service life under heavy use.

Fast Charging and Power Options

• 2x D-tap ports with a combined 250W output
• 1x USB-A output: 5V / 9V 2A (18W)
• 1x USB-C port: 65W output / 60W input
• Supports 100W / 6A fast charging with compatible SWIT chargers
• Can recharge from 0 to 80% in about 2.5 hours
• Full recharge time of approximately 3.8 hours with supported chargers

The USB-C port is ideal for powering laptops, monitors, and other smart devices, supporting multiple common fast-charging protocols including BC1.2, QC2.0/3.0, FCP, SCP, and PD2.0/3.0. When used with a USB-C charger of 60W or more, the battery can also be charged through the USB-C input.

Clear Status Monitoring

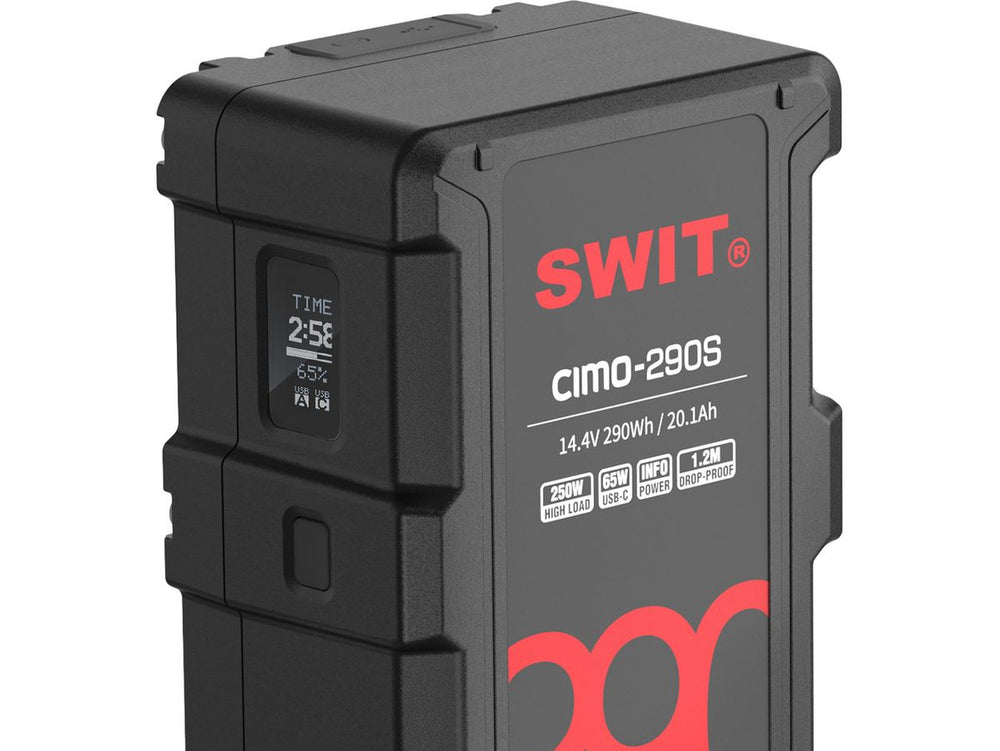

An integrated OLED display shows key battery information at a glance, including charge level, remaining runtime, and other power details. A long press of the power check button lets you view the battery cycle and capacity status.

Built for the Field

• Integrated LED flashlight on the rear for use in dark environments
• Double-shell housing for added durability
• Impact-resistant design tested to withstand drops from up to 1.2 m
• Multi-circuit BMS protection for safer operation

Compact, tough, and designed for professional workflows, the SWIT CIMO-290S is a dependable V-mount power source for filmmakers who need strong output and flexible connectivity on set.

Specifications

• Battery type: Cine-style V-mount battery
• Capacity: 290Wh / 20.1Ah
• Nominal voltage: 14.4V
• Continuous load: 250W / 20A
• Peak load: 335W
• Charging temperature: 0 - 40°C
• Discharge temperature: -20 - 50°C
• Dimensions: 144 x 100 x 67 mm
• Weight: 1.509 kg

In the Box

• 1x SWIT CIMO-290S 290Wh 250W High Load V-Mount Battery with USB-C
