SWIT CL-100D CL-100D | 100W Bi-Colour Fanless Studio 3300LUX TLCI99

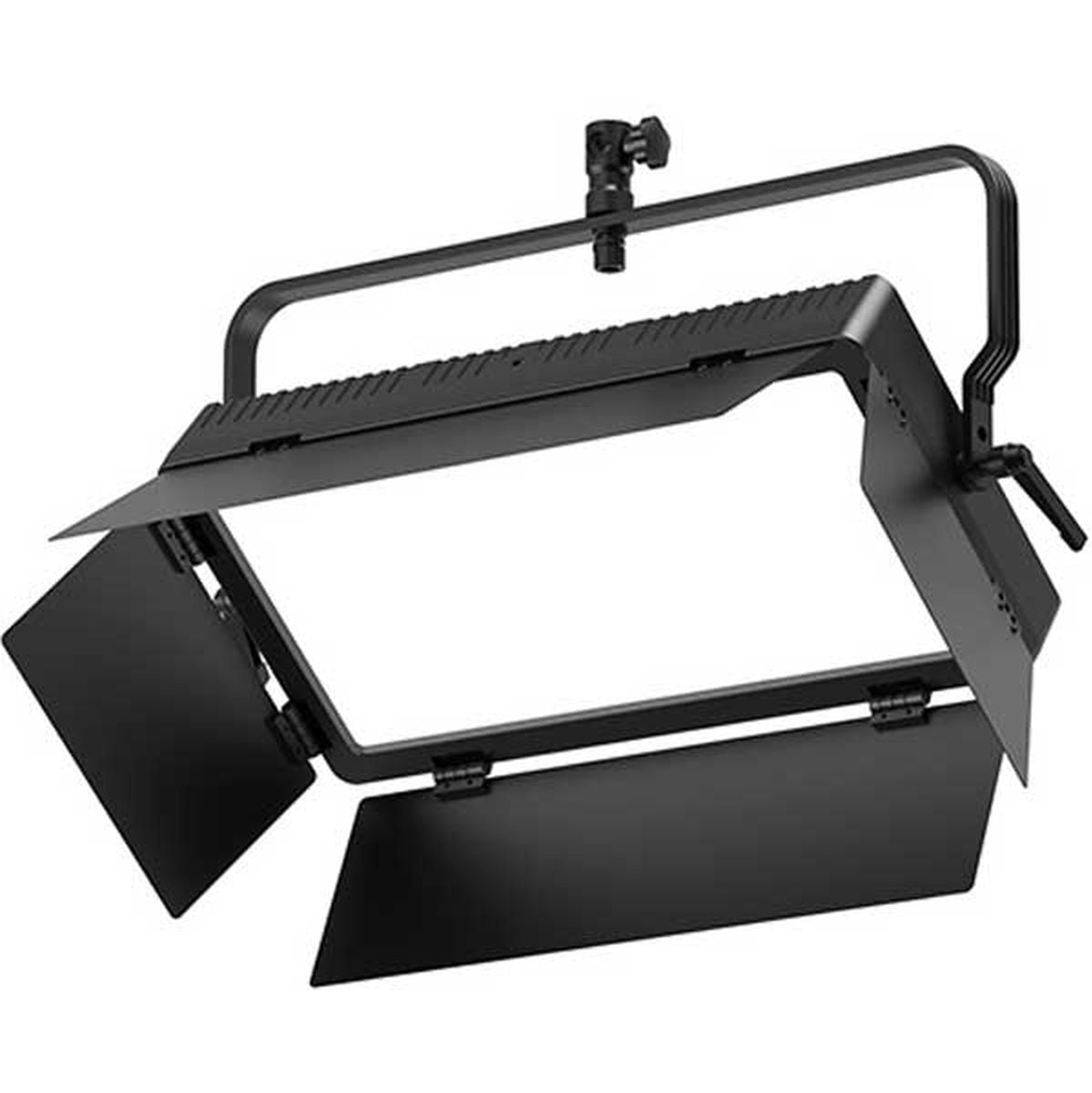

SWIT CL-100D 100W Bi-Colour Fanless Studio LED Panel

The SWIT CL-100D is a powerful, high-quality bi-colour LED panel designed for professional studio work, broadcast production, green screen setups, and livestreaming. With 1440 SMD LEDs, 100W output, and a centre output of 3300 lux at 1 metre, it delivers bright, even illumination with a soft look that flatters subjects on camera.

Its fanless design keeps operation completely silent, making it ideal for sound-sensitive environments. The wide 65° beam angle produces a smooth spread of light across the scene, reducing harsh hotspots and creating a more natural lighting environment.

Flexible colour and dimming control

The CL-100D offers continuous colour temperature adjustment from 2700K to 6500K, allowing you to move easily from warm tungsten tones to clean daylight balance. Thanks to 0–100% PWM digital dimming, brightness changes remain smooth and flicker-free throughout the range.

With a CRI of 97 and TLCI of 99, this panel is built to reproduce colours with exceptional accuracy. That means skin tones, costumes, props, and sets appear true to life both to the eye and on camera.

Built for professional integration

This panel includes 5-pin XLR DMX512 in and out connections for reliable control in studio installations. It also features a 5V USB-A power output, making it easy to power a wireless DMX receiver directly from the fixture.

PowerCON TRUE1 AC input and link output connections simplify larger setups, allowing multiple units to be chained together efficiently. The CL-100D also supports separate DMX addressing for dimmer and colour temperature, helping save console channels and streamline programming.

Key features

• 1440 surface-mounted LEDs
• 100W output with 3300 lux at 1 metre
• Silent fanless operation
• Wide 65° beam angle
• Continuously adjustable from 2700K to 6500K
• Flicker-free 0–100% dimming
• CRI 97, TLCI 99, SSI (D55) 75
• DMX512 control for colour and dimming
• Independent DMX addressing for dimmer and colour temperature
• USB power output for wireless DMX receiver
• LCD display for colour, dimmer, and DMX settings
• PowerCON TRUE1 AC input and link output
• 4-leaf metal barn doors and yoke bracket
• Optional 40° honeycomb filter available separately

Specifications

• Light-emitting surface: 435 x 195 mm
• Dimensions: 480 x 240 x 87 mm
• Weight: 3.2 kg

Box contents

• 1x SWIT CL-100D 100W Bi-Colour Fanless Studio LED Panel
• 1x Safety cable
• 1x PowerCON TRUE1 power cable
