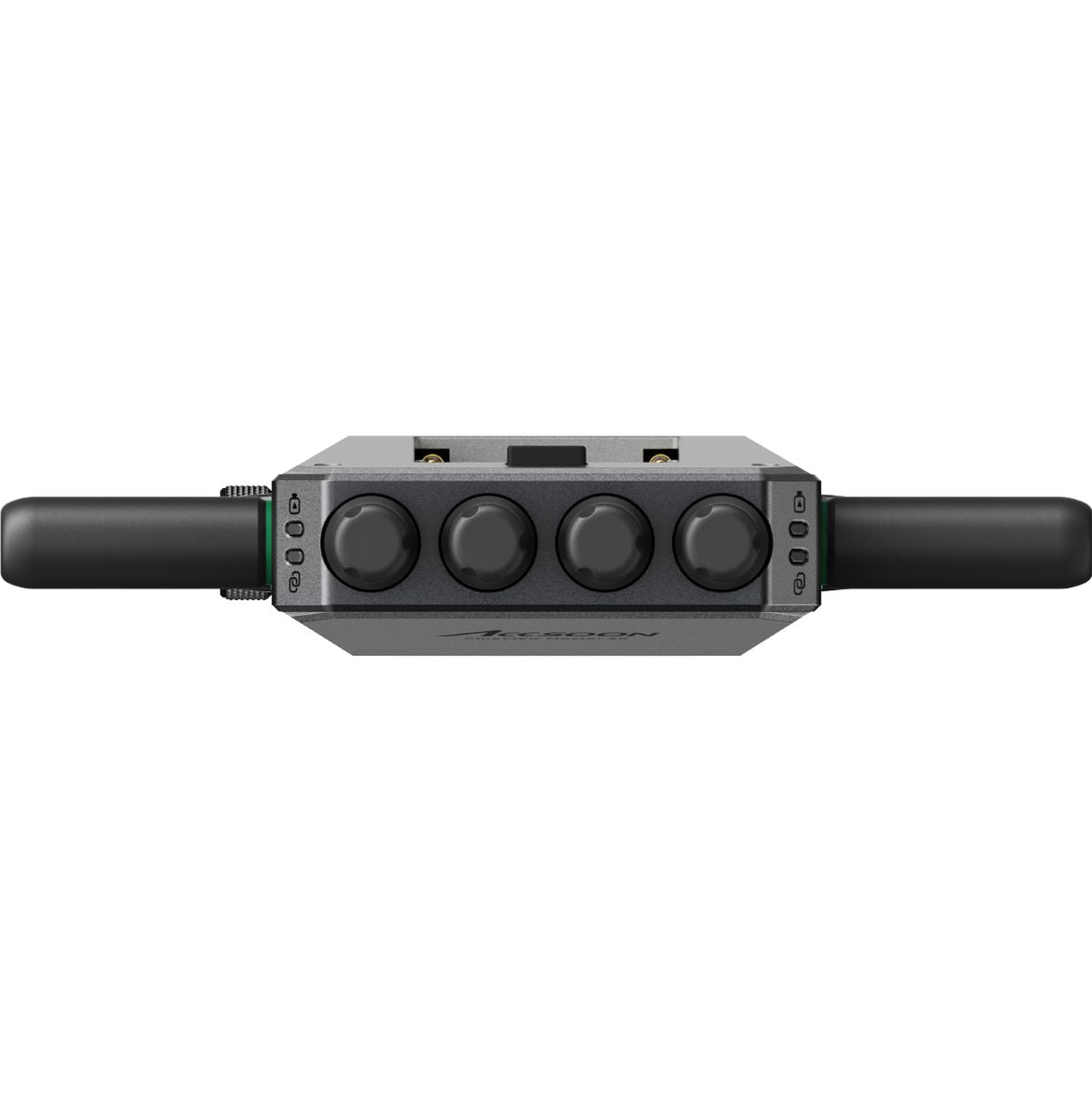

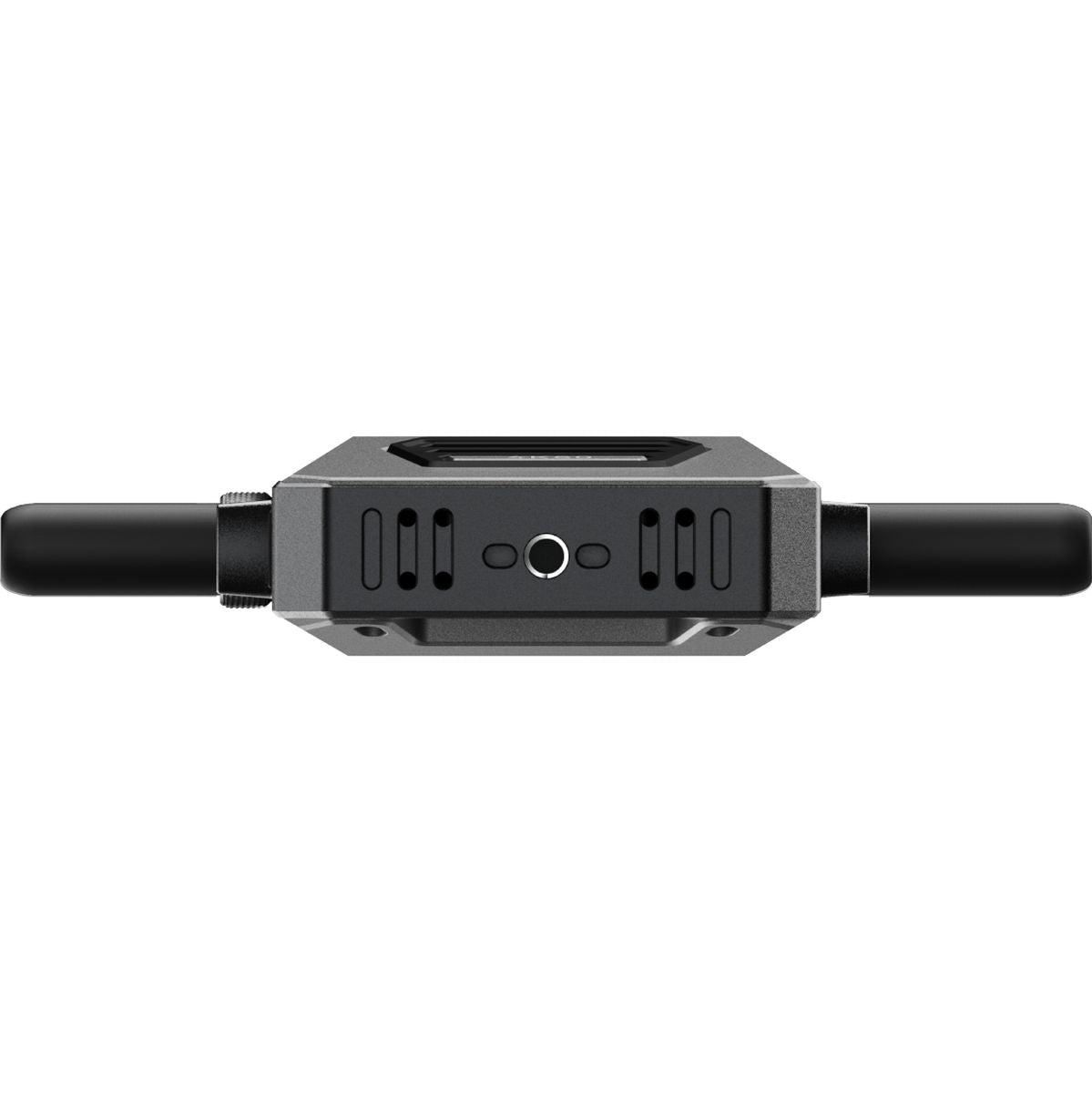

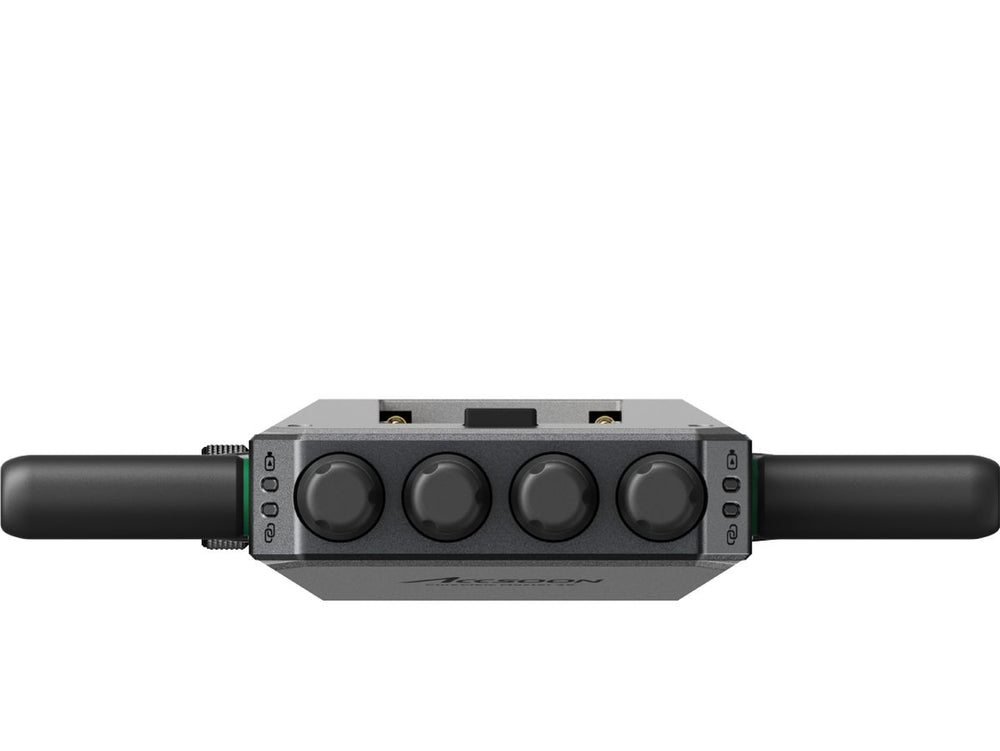

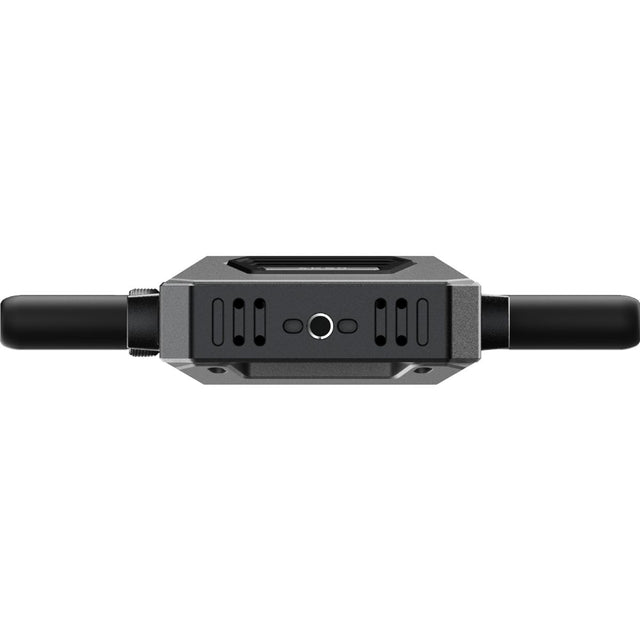

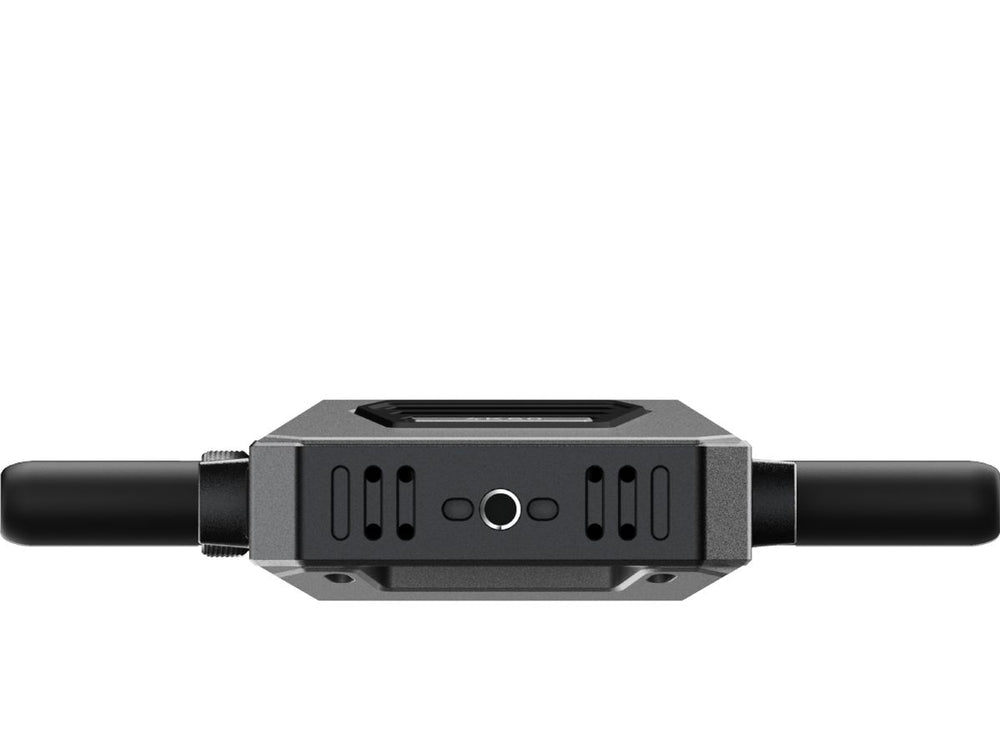

Accsoon CineView Master 4K Transmitter

Take your on-set wireless monitoring to a new level with the Accsoon CineView Master 4K transmitter. Designed for demanding productions, this TX unit delivers true 4K 60P transmission with ultra-low latency and a powerful tri-band wireless system for stable performance across a wide range of shooting environments.

Built for professional workflows, it supports both HDMI and 3G-SDI input, along with HDMI loop-out and USB video output for iPhone and iPad via MFi-certified connection. Whether you are monitoring on multiple devices or streaming a live production, this transmitter offers the flexibility and reliability needed on set.

Key Features

• True 4K 60P wireless video transmission
• Tri-band operation: 2.4 GHz, 5 GHz and 6 GHz, plus DFS support
• Latency as low as 25 ms in 1080p
• Transmission range up to 2.5 km in ideal conditions
• Monitor on up to 5 devices simultaneously
• HDMI and SDI input with HDMI loop-out
• MFi-certified USB video output for iPhone and iPad
• 8K high-performance A/V processor
• DC or NP-F battery powered
• Aluminium alloy housing with quiet, intelligent cooling

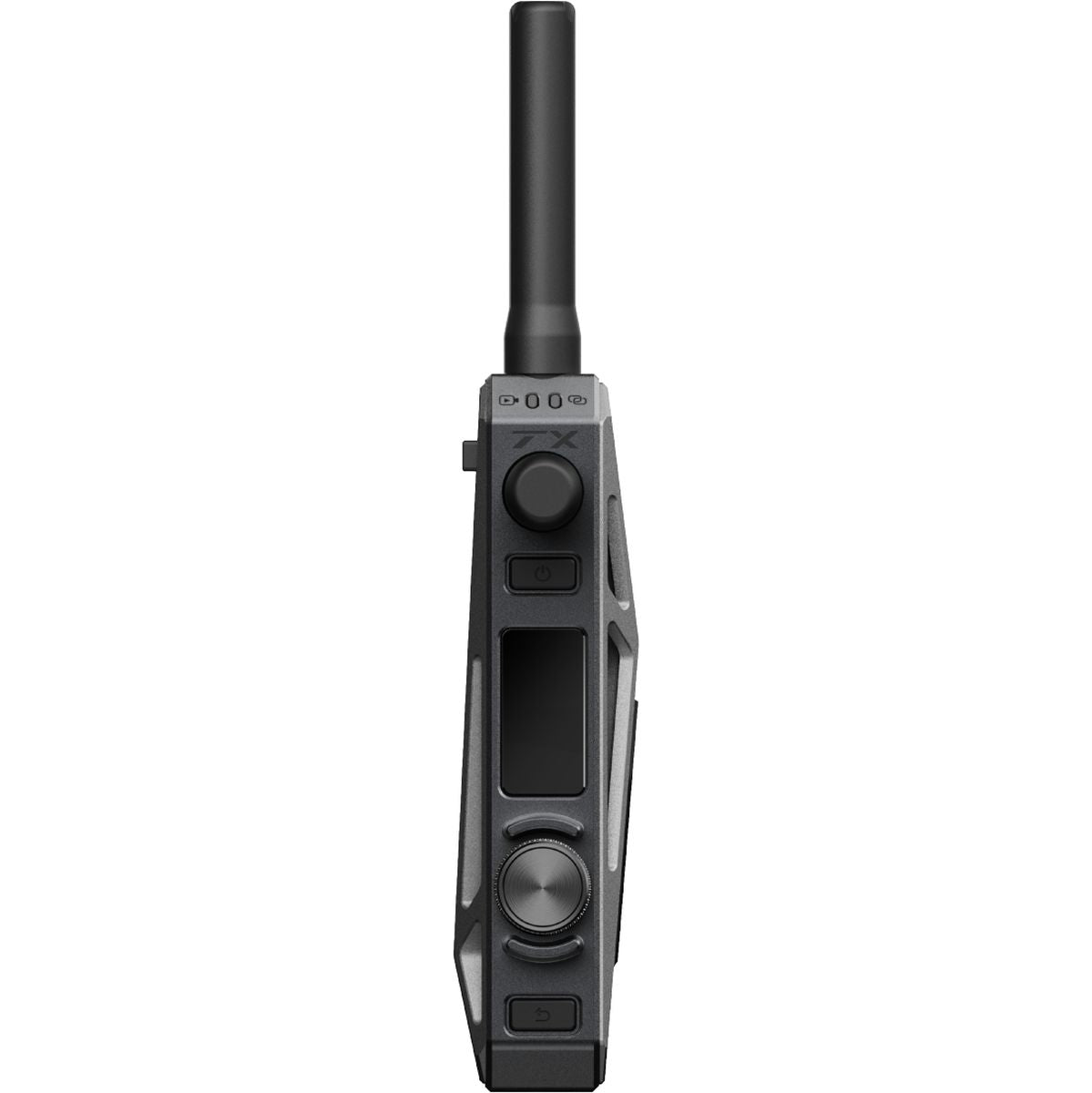

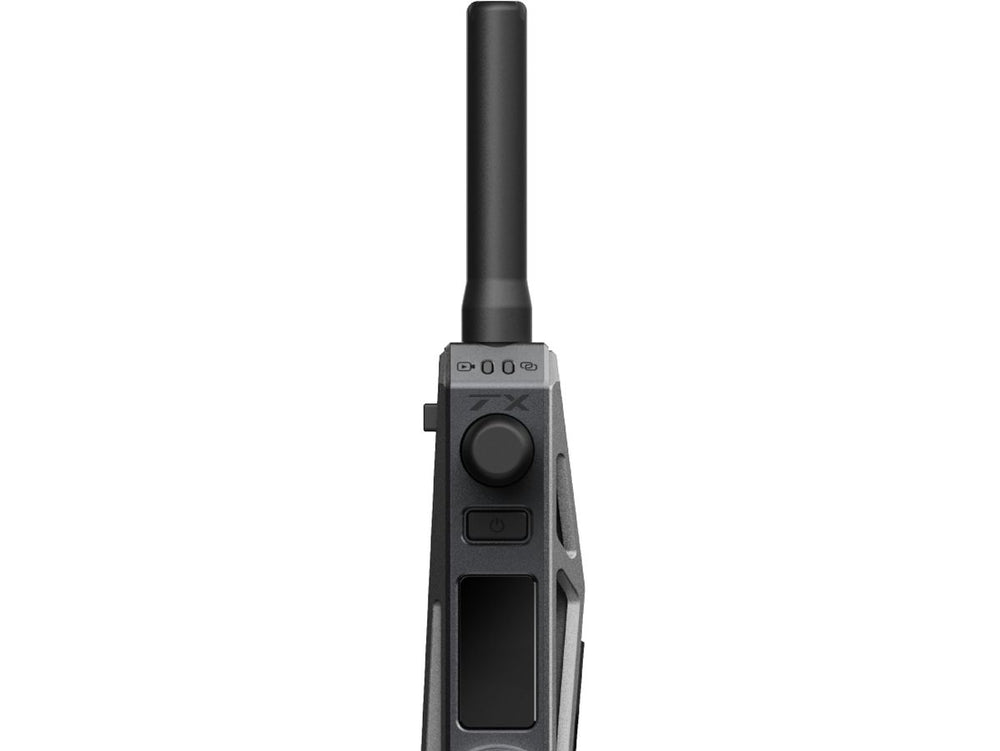

• 1.05-inch full-colour LCD display

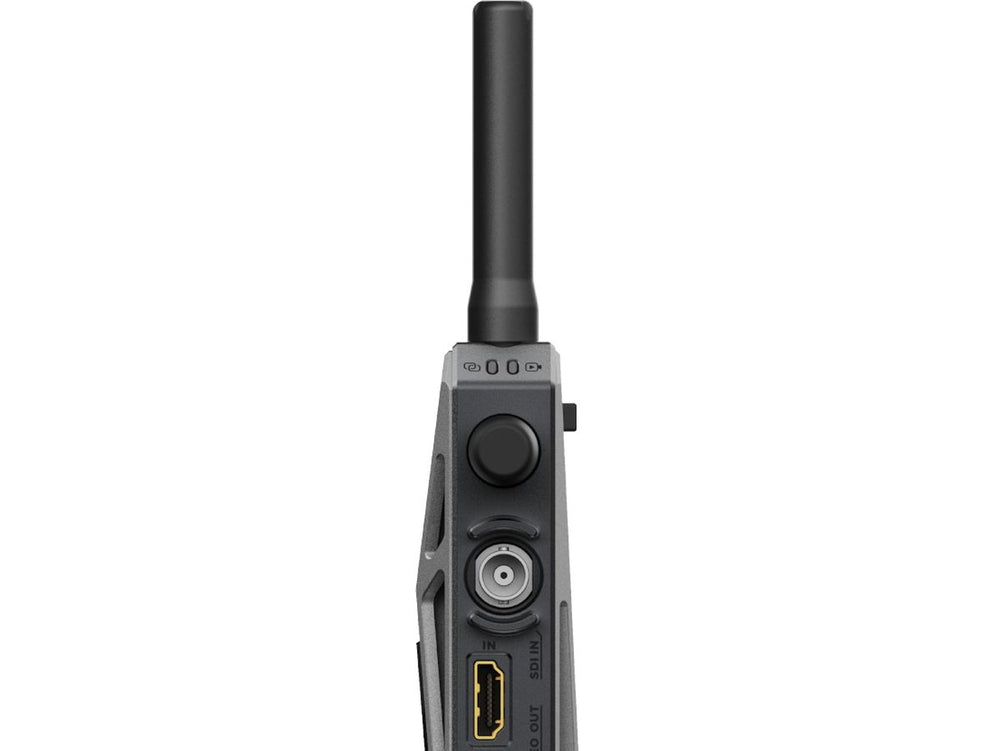

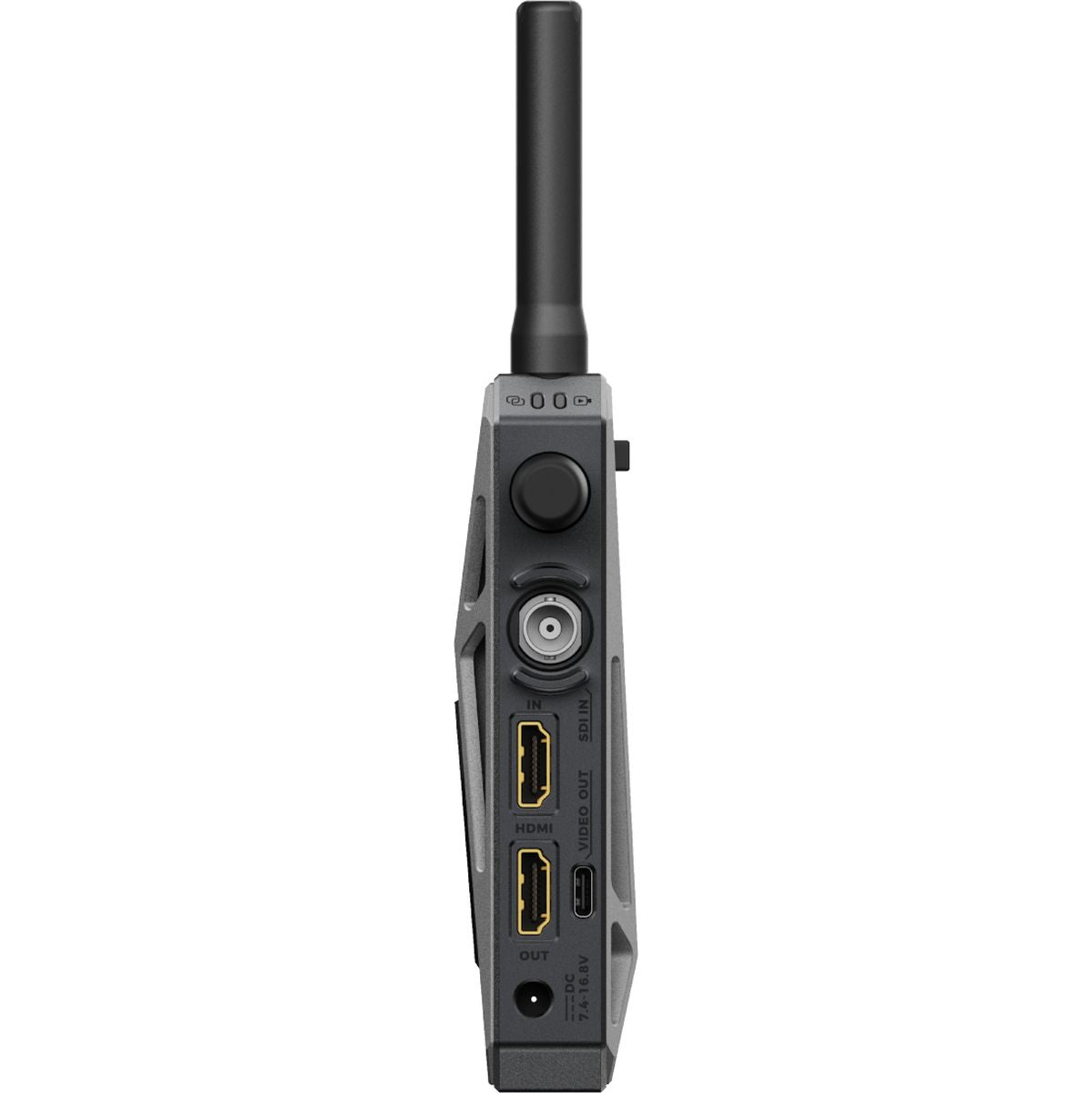

Professional Connectivity

The CineView Master 4K transmitter is equipped to handle modern production needs with ease. It accepts HDMI and SDI sources, supports embedded audio, and provides loop-out functionality for direct monitoring or signal routing. The USB video output also makes it easy to integrate with iOS devices for mobile viewing and streaming.

Power and Build

Power the unit using a DC input or compatible NP-F batteries, including NP-F550, NP-F750 and NP-F970 models. The transmitter is also compatible with the Accsoon V-Mount battery adapter for extended shooting setups. Its aerospace-grade aluminium alloy body combines durability with a compact form factor, while the quiet thermal design helps maintain dependable operation during long sessions.

Specifications

• A/V processor: 8K high-performance A/V processor
• Protocol: RTMS 4.0 proprietary protocol developed by Accsoon
• Video input: HDMI, 3G-SDI
• Video output: HDMI loop-out, USB video out to iOS
• SDI input formats: 1080p 23.98/24/25/29.97/30/50/59.94/60 fps Level A/B; 1080i 50/59.94/60i
• HDMI input formats: 4K (3840 x 2160) 23.98/24/25/29.97/30/50/59.94/60p; 1080p 23.98/24/25/29.97/30/50/59.94/60p; 1080i 50/59.94/60i
• HDMI loop-out: Same as HDMI input signal
• DC input: 5.5 x 2.1 mm, centre positive
• DC voltage: 7.4–16.8V
• Power consumption: 6.5W average
• Audio: HDMI embedded, SDI embedded
• Latency: 1080p under 25 ms; 4K under 35 ms
• Transmission range: up to 2.5 km in ideal conditions
• Operating temperature: -10 to 40°C
• Dimensions: 130 x 95 x 32 mm without antennas
• Weight: 322 g without antennas

In the Box

• 1x Accsoon CineView Master 4K transmitter
