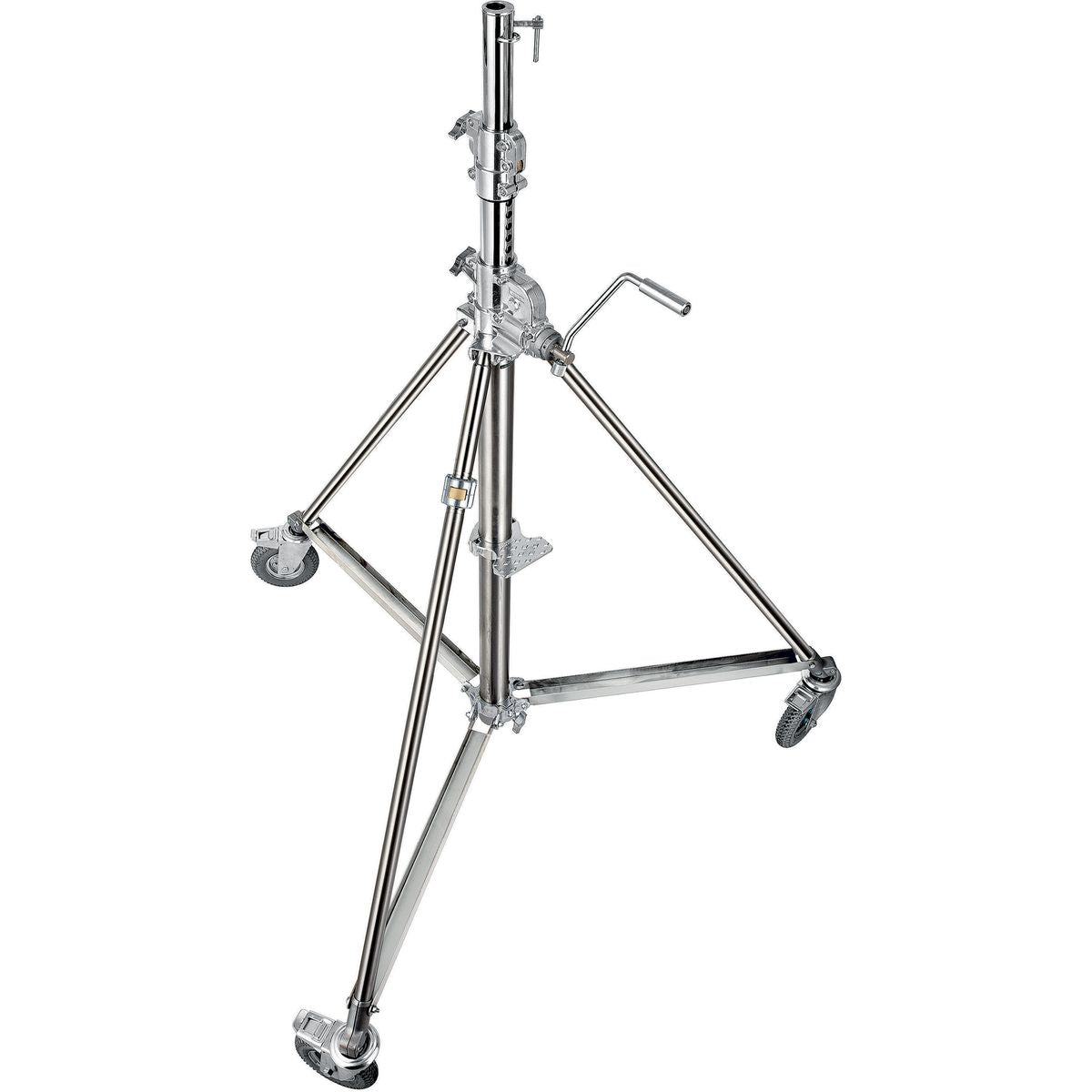

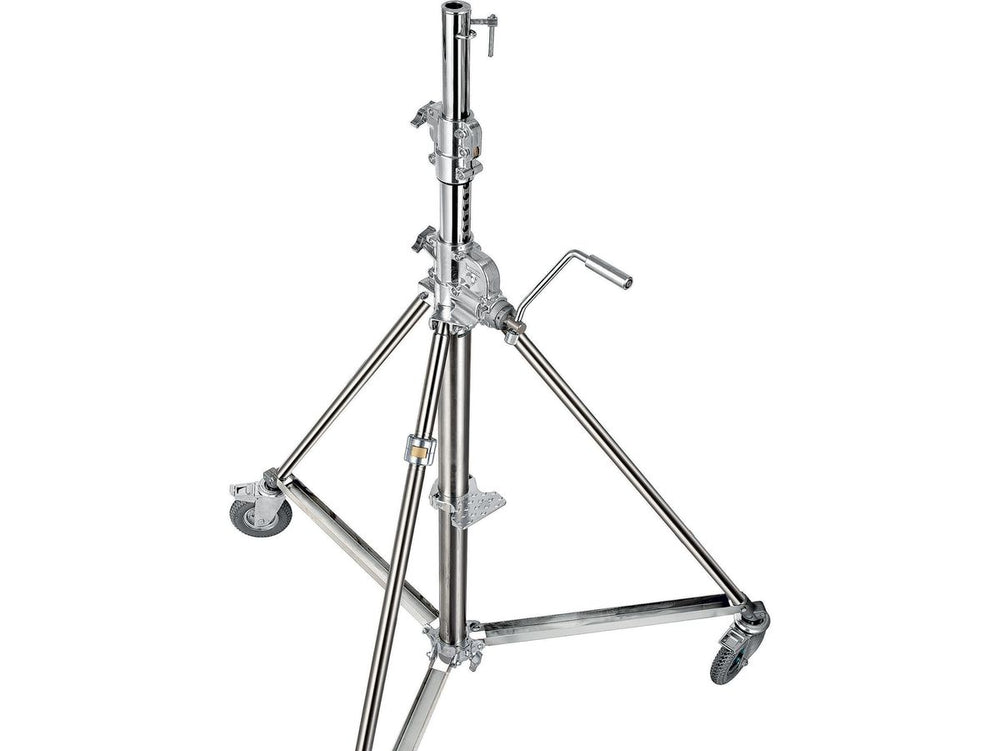

Avenger Super Wind Up 40

Avenger Super Wind Up 40 | Crank-operated lift for heavy lighting

Its geared, crank-operated column is the defining feature of the Avenger Super Wind Up 40: turning the handle raises two risers together, so a heavy light can be positioned from the stand itself. The stand reaches 386 cm and has a maximum load capacity of 80 kg. That combination suits studio and production crews working with large lighting fixtures overhead, where controlled height adjustment matters. Use it to raise a fixture above a set, position a light for a high-angle setup, or move it between shooting positions on its included wheels. The 28 mm junior receiver and 5/8-inch stud provide the mounting points for compatible grip equipment. A levelling leg is useful on uneven ground, and a single step on the column gives you a place to stand when adjusting the loaded stand. The construction pairs a stainless-steel column and legs with chrome-steel risers and a geared column. It’s a substantial piece of support equipment, with the capacity and working height to handle demanding lighting setups.

What it does

• Raises both risers together: The three-section stand has two risers that extend at the same time. Each full turn of the handle raises them by 4.4 cm, giving you a measured way to set the working height.
• Internal safety cable: A cable inside the stand lifts all sections together. This keeps the sections linked during crank operation rather than requiring separate adjustment.
• Levelling leg: The quickly and finely adjustable leg compensates for uneven ground. That’s a useful detail when a level stand position is needed on a rough studio floor or location surface.
• Two mounting points: The top tube has a 28 mm junior receiver, and the stand also has a 5/8-inch stud. The built-in ring provides an attachment point for compatible fixings or wind-bracing kits.
• Step on the column: A single step gives you a foothold for adjusting the stand when it’s carrying a load. It’s a small but specific convenience on a stand that reaches nearly four metres.
• Stainless and chrome-steel construction: The column and legs are stainless steel; the risers and geared column are chrome steel. These are the materials used throughout its supporting structure.

Good to know

The stand weighs 39 kg, so plan for a substantial piece of equipment when transporting it. Its braked, foam-filled wheels allow it to roll between positions, while the 1.8 m footprint needs room on set. For storage or transport, its closed length is 2 m. The supplier lists the stand’s colour as black.

What's Included

• Avenger Super Wind Up 40 stand

Technical Specifications

• Brand: Avenger
• Model: 9B6040X / B6040X
• Type: Wind-up lighting stand
• Colour: Black
• Maximum working height: 386 cm
• Minimum working height: 172 cm
• Maximum load capacity: 80 kg
• Sections: 3
• Risers: 2, extending simultaneously
• Mounting points: 28 mm junior receiver and 5/8-inch stud
• Footprint diameter: 1.8 m
• Closed length: 2 m
• Weight: 39 kg
