DZOFILM X-Tract 18-28mm Metric 0° T8 FF Probe Macro Zoom

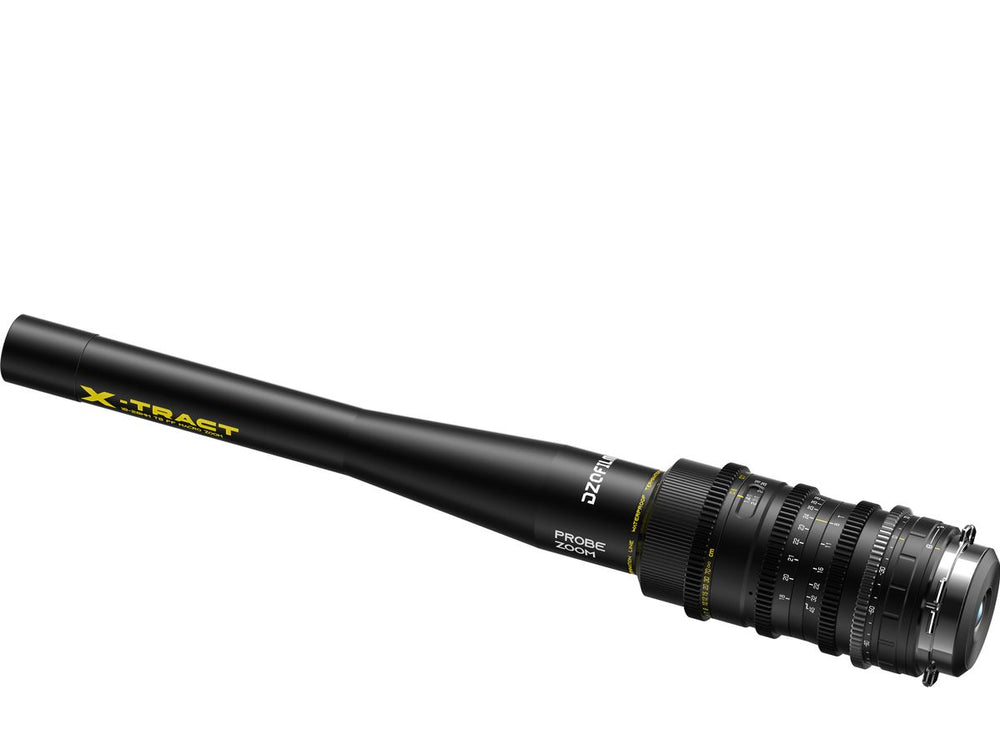

DZOFilm X-Tract 18-28mm T8 FF Probe Macro Zoom Lens, PL Mount, Metric

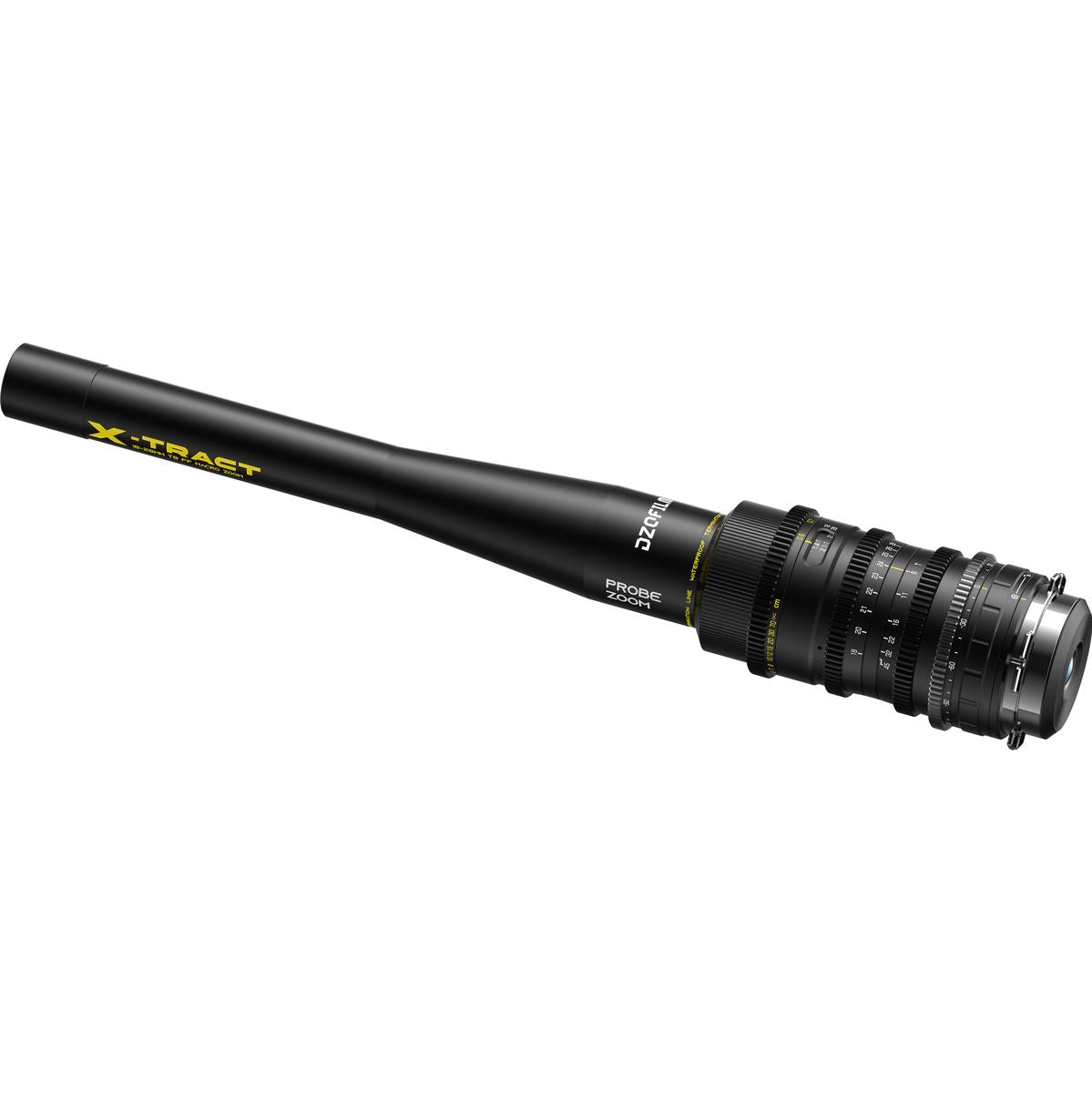

The DZOFilm X-Tract 18-28mm T8 FF Probe Macro Zoom is designed to push creative imaging into places standard lenses simply cannot reach. With its versatile full-frame 18-28mm zoom range and probe-style construction, it offers greater framing flexibility while maintaining the look and consistency filmmakers expect from a high-end macro tool.

Built for precision work, this lens combines a fast T8 maximum aperture with impressive close-focus performance, allowing you to capture tiny textures, hidden details, and dramatic perspectives in confined spaces. The 6 mm front working distance makes it possible to get extremely close to your subject, opening up a world of unique macro shots.

The X-Tract series is built around modular front elements, giving you access to 0°, 90°, and 360° periscope-style shooting options. This opens the door to imaginative camera moves and specialized applications, including underwater work down to 28 cm with IP57 protection.

For demanding productions, the lens also includes dedicated support components to help stabilize the setup during fast-paced shooting. Its solid aluminum construction, native PL mount, and compatibility with the DZOFILM Octopus system and many PL-E/RF/LPL adapters make it a practical choice for professional workflows.

Key Features

• Full-frame 18-28mm probe macro zoom lens
• T8 to T45 aperture range
• Direct 0° front element included
• Interchangeable front modules available in 0°, 90°, and 360° options
• 6 mm minimum working distance from the front element
• 0.47 m minimum focus distance from sensor plane
• 1.55x zoom ratio
• 2.1x magnification at 28mm
• Manual iris, focus, and zoom control
• Native PL mount
• Designed for high-end macro, specialty, and underwater applications

Specifications

• Focal length: 18-28mm
• Lens type: Direct 0°
• Mount: PL
• Aperture range: T8 - T45
• Image circle: 43.2 mm
• Optical design: 25 elements in 18 groups
• Flange distance: 52 mm
• Minimum focus distance (sensor plane): 0.47 m
• Minimum focus distance (lens front): 6 mm
• Zoom ratio: 1.55x
• Magnification at 28mm: 2.1x
• Iris rotation: Manual 72°
• Focus rotation: Manual 300°
• Zoom rotation: Manual 100°
• Iris blades: 10
• Gear pitch: 0.8 Mod
• Material: Aluminum
• Length: 415 mm
• Lens weight: 1090 g

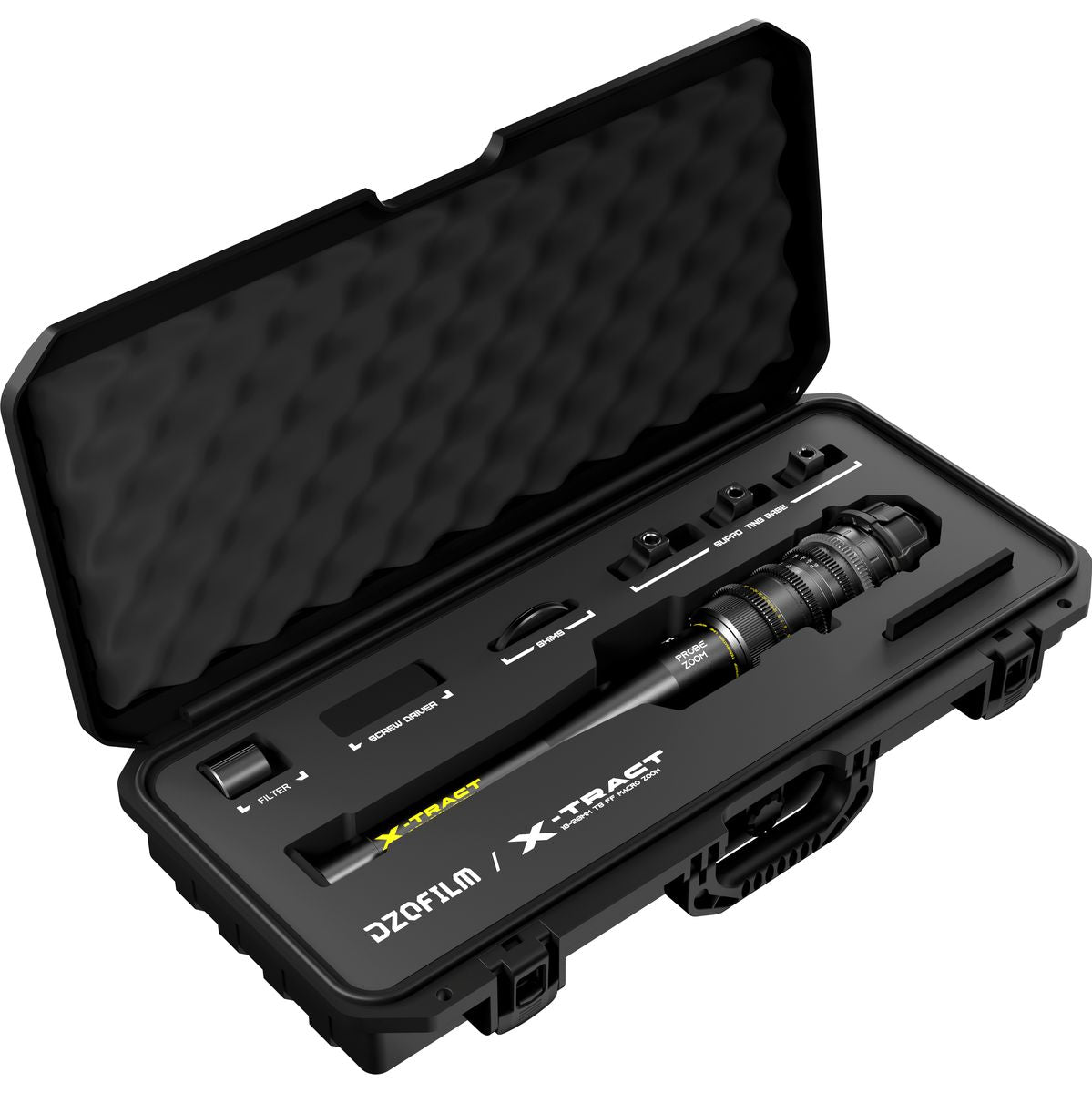

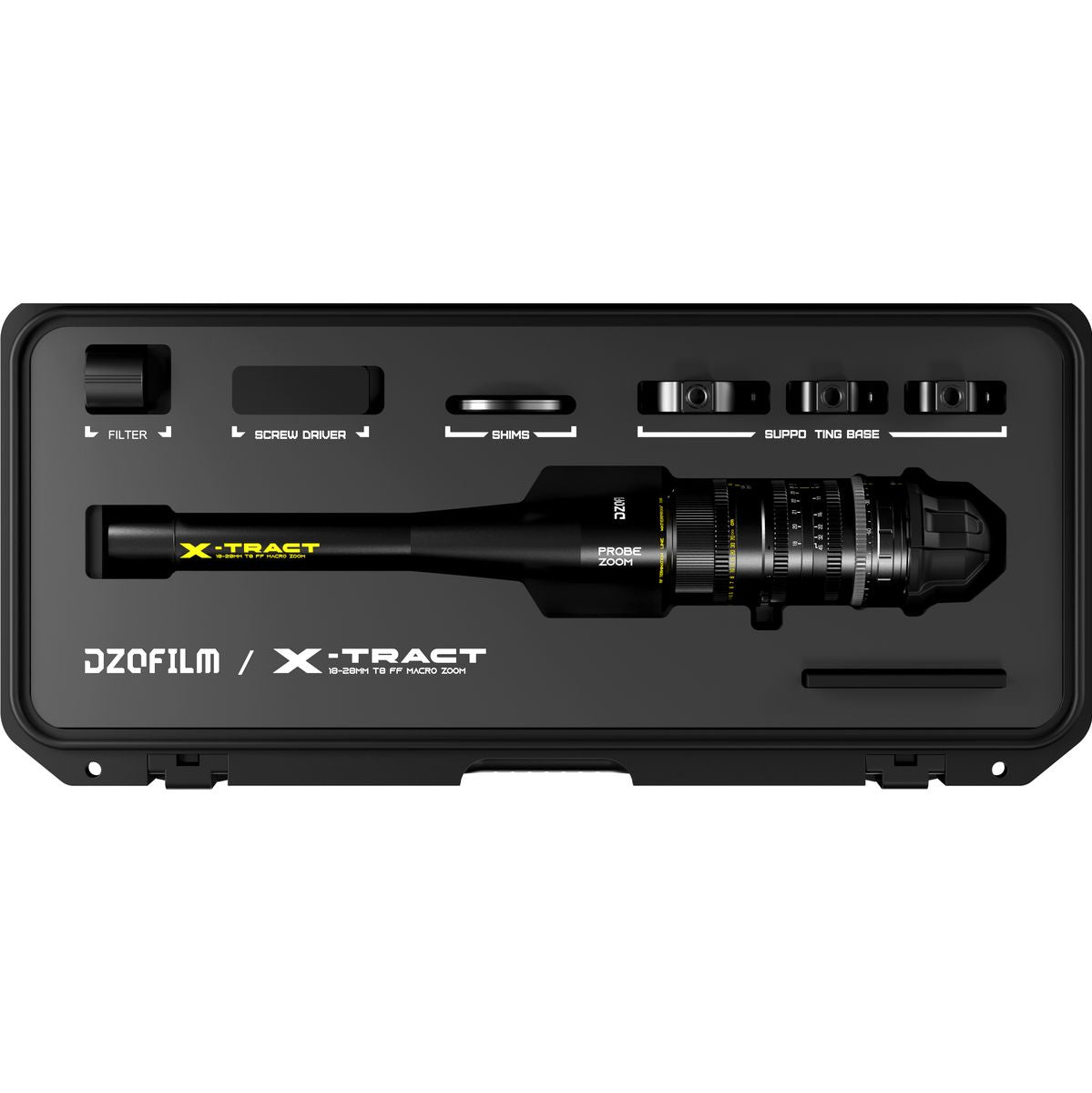

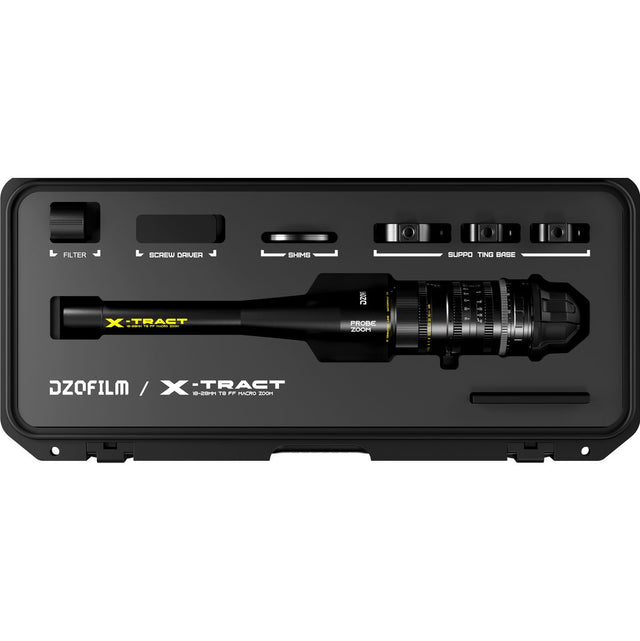

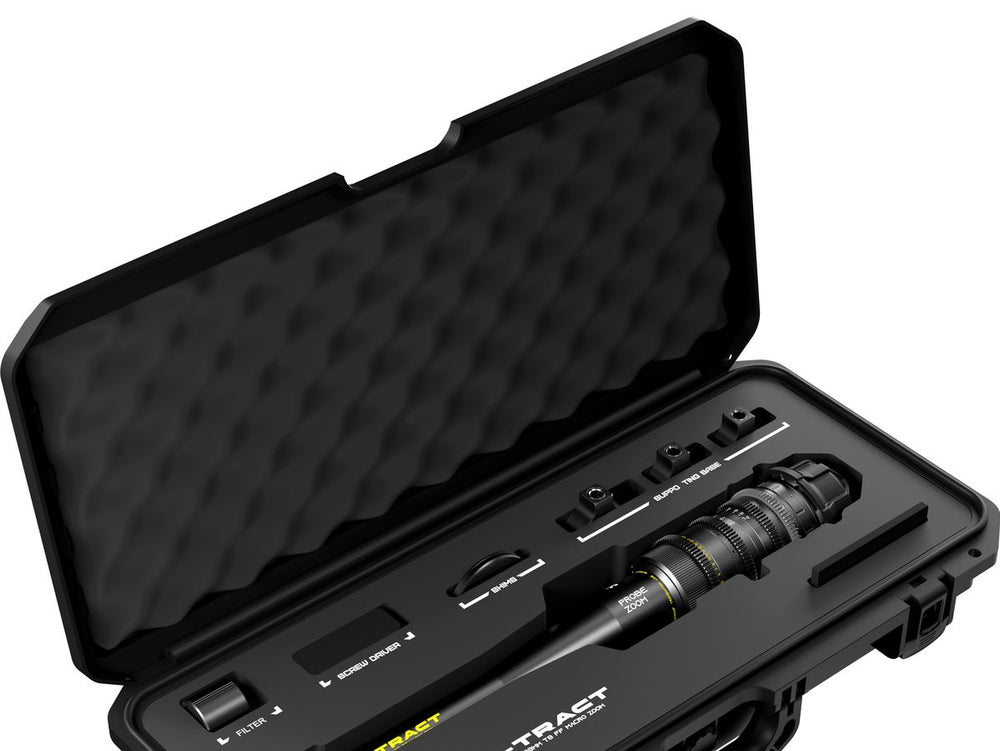

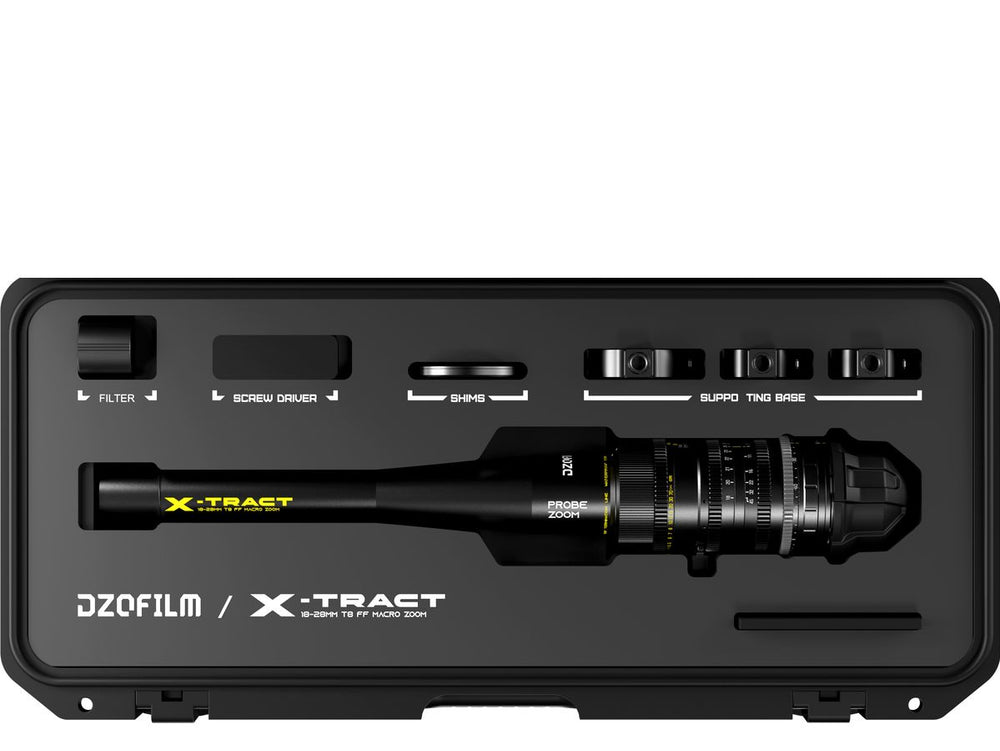

In the Box

• 1x DZOFilm X-Tract 18-28mm T8 FF Probe Macro Zoom Lens, PL Mount, Metric

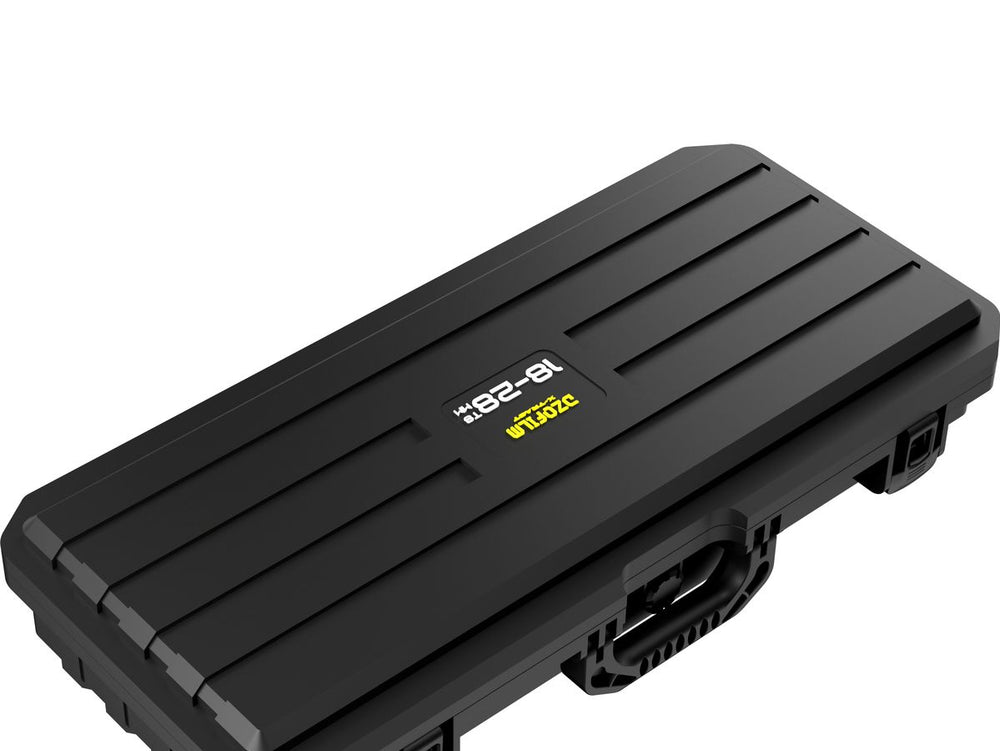

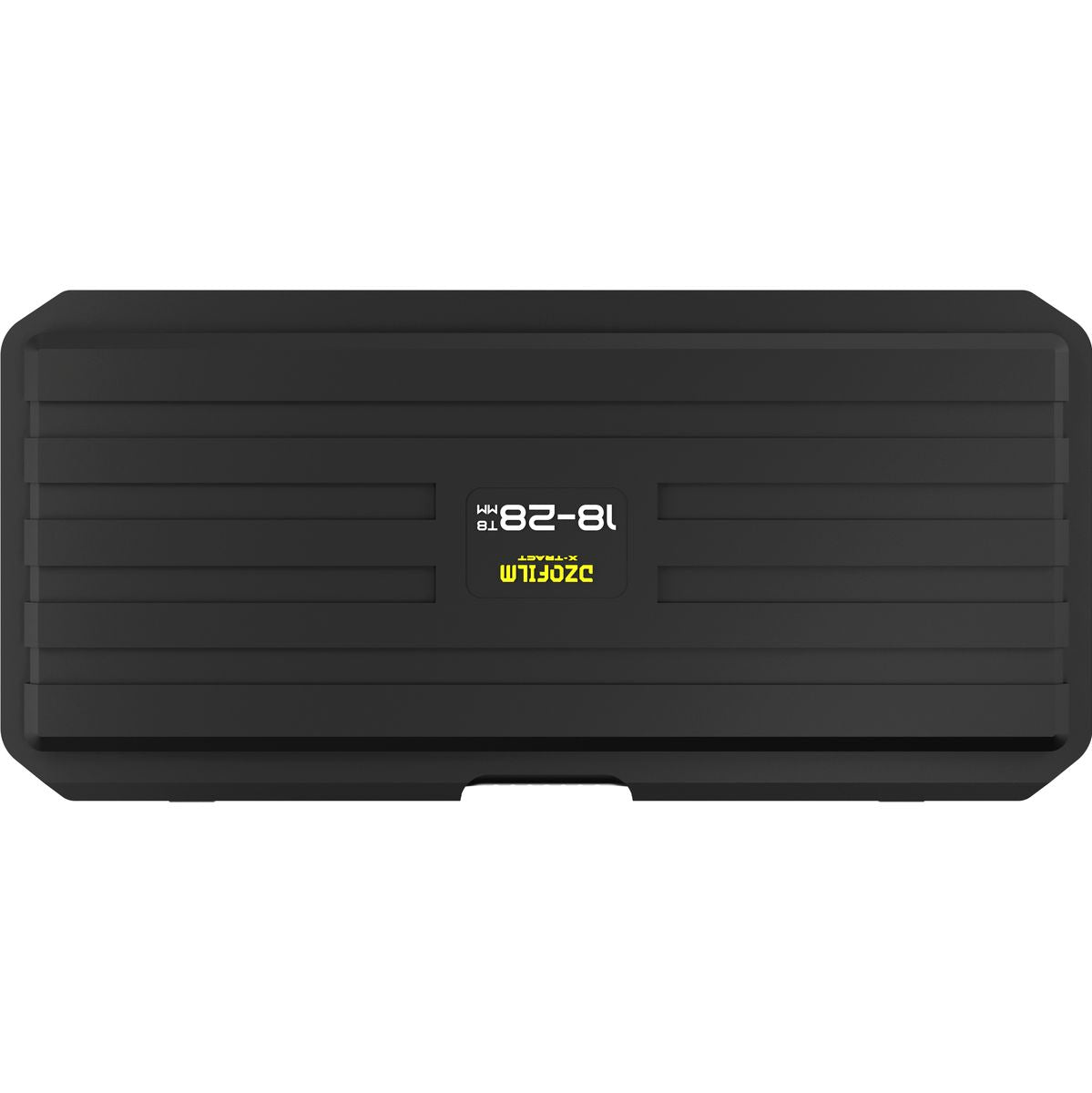

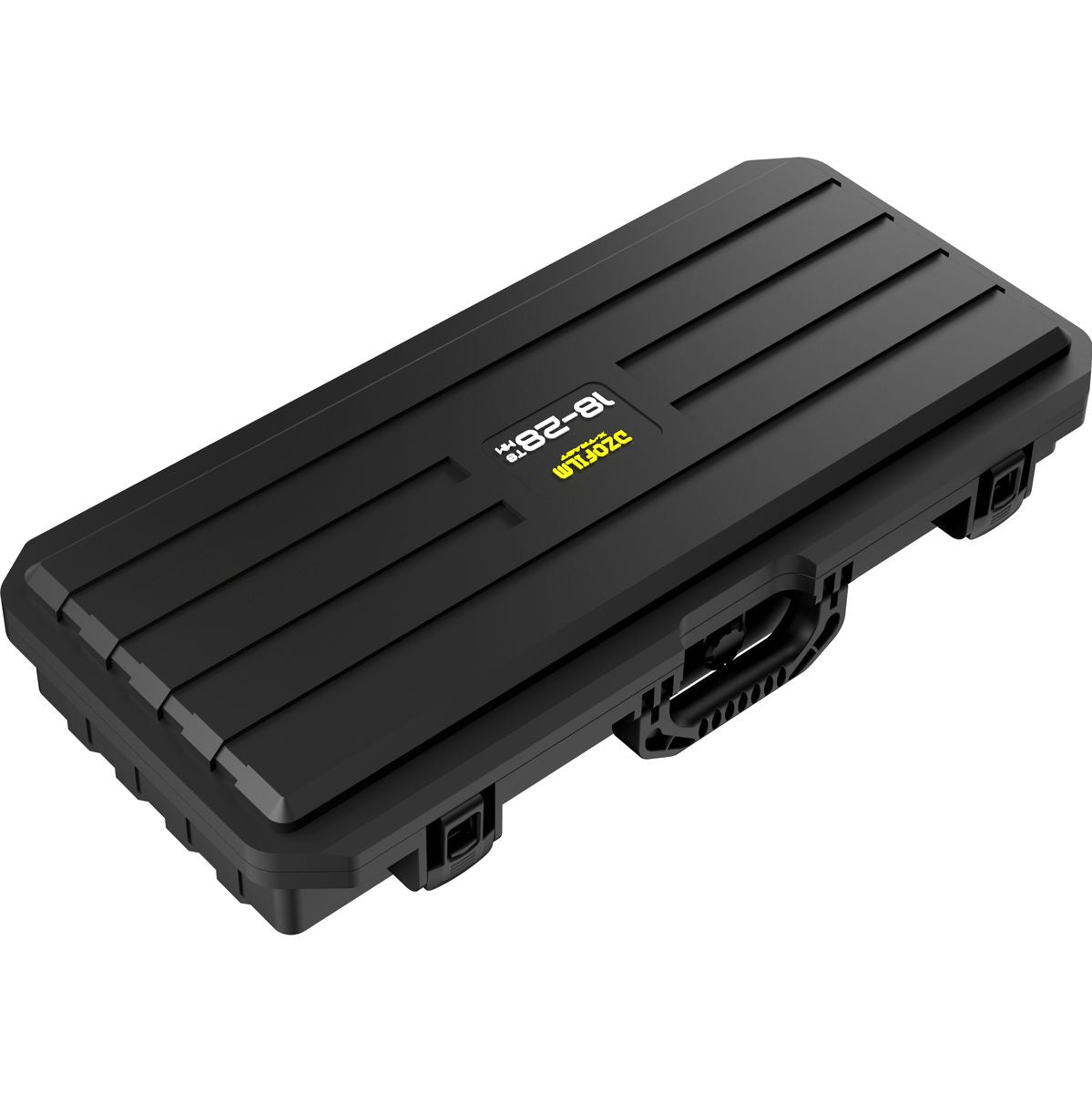

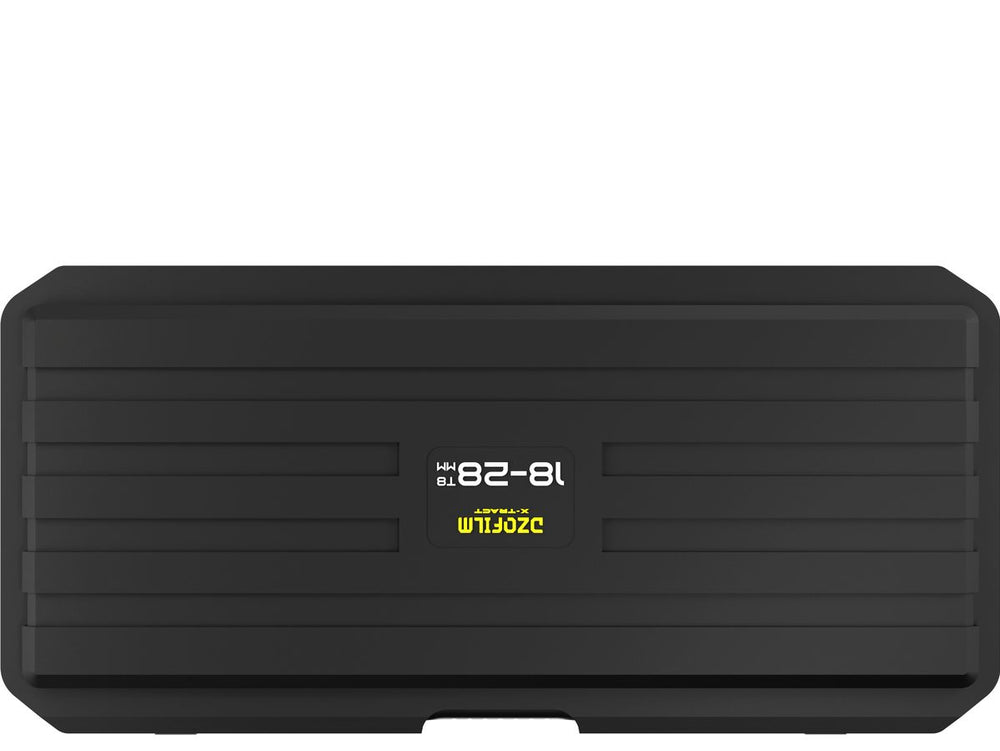

• 1x Carry case
