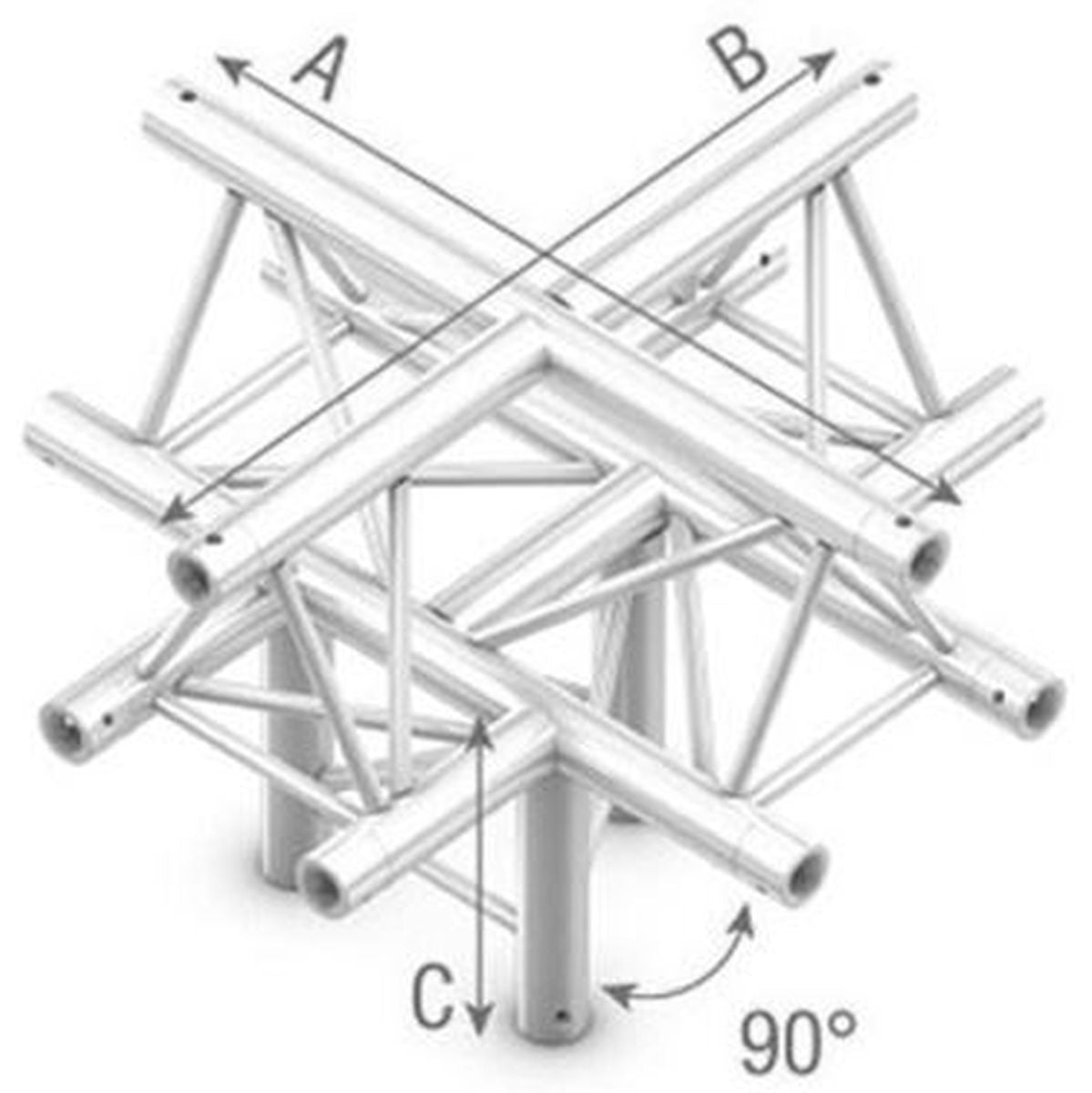

StudioKing Truss T-Cross 90 Degree 5 Way Apex Up

StudioKing Truss T-Cross 90 Degree 5 Way Apex Up | A defined five-way truss junction

When a studio truss layout needs a T-shaped meeting point, this fitting gives you a clearly named configuration to plan around. The StudioKing Truss T-Cross 90 Degree 5 Way Apex Up is a truss accessory with a 90-degree, five-way arrangement and an apex-up orientation. It’s intended for people planning a studio setup around truss sections, from a working studio to a temporary production space. The key is its specific junction shape: rather than choosing a generic-sounding connector, you can identify the T-cross, angle, number of ways and orientation in the product name. That makes it easier to match the fitting to the point shown in your layout. A small but useful detail: “apex up” describes the orientation to look for when planning where this part belongs. If your design calls for that arrangement, this is the fitting to consider.

For a practical planning check, compare the junction you need on your drawing with the three details in the name: T-cross, 90 degrees and five-way. Then account for the apex-up orientation in your intended layout. Those terms describe the configuration, not the dimensions or load capacity, so keep your selection focused on whether this is the junction your truss plan calls for. It’s a specific part for a specific point in a build; the benefit is being able to name that point precisely.

Technical Specifications

• Product type: Truss T-cross
• Angle: 90 degrees
• Number of ways: 5
• Orientation: Apex up
