Wimberley AP-620

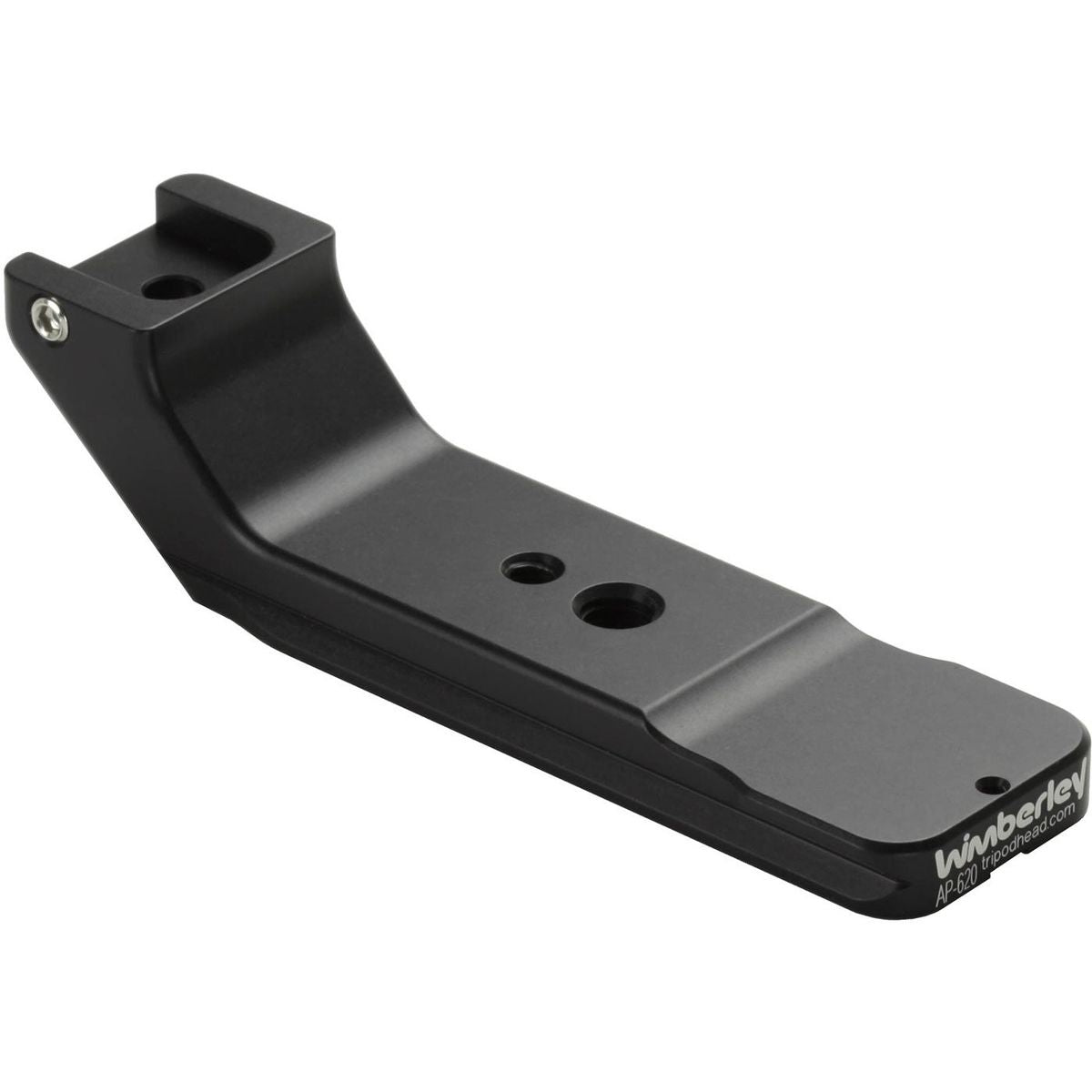

Wimberley AP-620 - low-profile Arca-type replacement foot

The foot supplied with a long zoom provides a tripod mounting point, but its taller profile leaves more room for flex. The Wimberley AP-620 is a low-profile replacement foot for the Sony 200-600 f/5.6 G OSS, bringing the lens closer to the tripod head. That lower position improves balance and reduces bending and vibration compared with the original foot. For wildlife photography, the steadier support is useful when tracking distant birds or animals through the viewfinder; for a tripod-mounted session, improved balance makes it easier to keep the lens positioned comfortably. The foot is Arca-type compatible, so it can be secured directly in a matching clamp. Its double dovetail design also provides attachment points on both the top and bottom, leaving the lower side available for the tripod while allowing an accessory to be fitted above. Wimberley has also included two safety stops, a thoughtful detail for anyone handling a heavy lens around a partly opened clamp. This is a purpose-made replacement for the specified Sony lens, rather than a general-purpose plate, with threaded connections also provided for tripod heads without an Arca-type clamp.

Mounting and handling

• Made for the Sony 200-600: The AP-620 replaces the foot supplied with the Sony 200-600 f/5.6 G OSS. Its fit is specific to that lens.
• Arca-type compatibility: The foot fits an Arca-type clamp, giving the lens a direct mounting point on a compatible tripod head.
• Double dovetail: Dovetail profiles on both the upper and lower sides allow accessories to attach above or below the foot. This keeps an accessory mounting option available while the lens is supported from underneath.
• Two safety stops: The included stops are intended to prevent the lens from sliding out if a clamp is only partly open. They add a useful safeguard while positioning the lens.
• Threaded connections: A 1/4"-20 and a 3/8"-16 socket provide mounting options for tripod heads that don't use an Arca-type clamp.
• 6061 aluminium: The foot is made from aluminium and finished in black anodising. This gives the replacement a durable, lightweight construction.
• Lower profile: Compared with the foot supplied with the lens, the AP-620 places the lens lower on the support. That change improves balance and reduces flex and vibration.

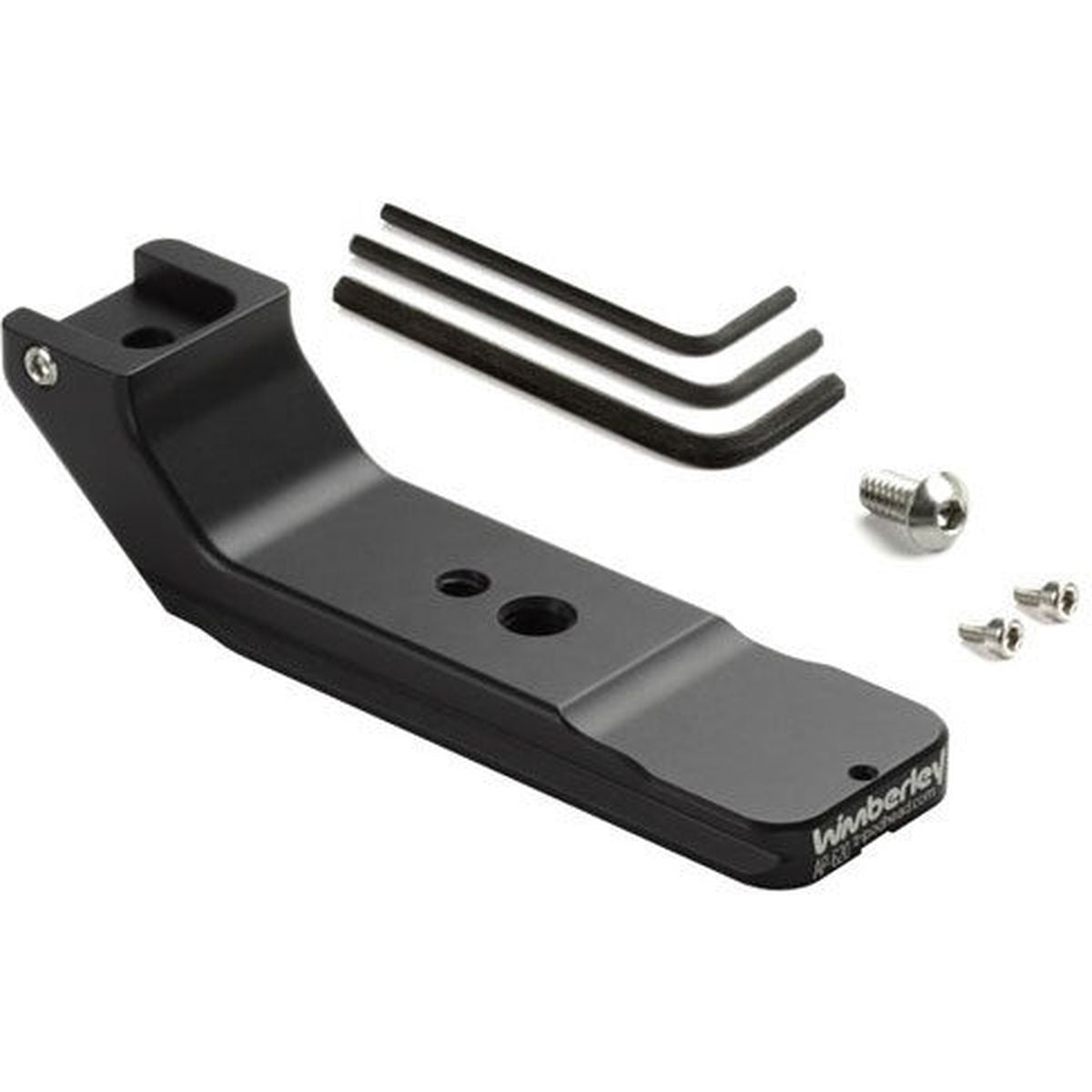

What's Included

• Wimberley AP-620 Replacement Foot
• 1/4"-20 mounting screw
• Two M3 x 6 mm safety stop screws
• Allen keys

Technical Specifications

• Brand: Wimberley
• Model: AP-620
• Type: Replacement lens foot / tripod accessory
• Compatible lens: Sony 200-600 f/5.6 G OSS
• Mounting profile: Arca-type compatible, double dovetail
• Material: 6061 aluminium
• Finish: Black anodised
• Threaded connections: 1/4"-20 and 3/8"-16
• Dimensions: 137.16 × 38.10 × 33.02 mm
• Weight: 128 g
