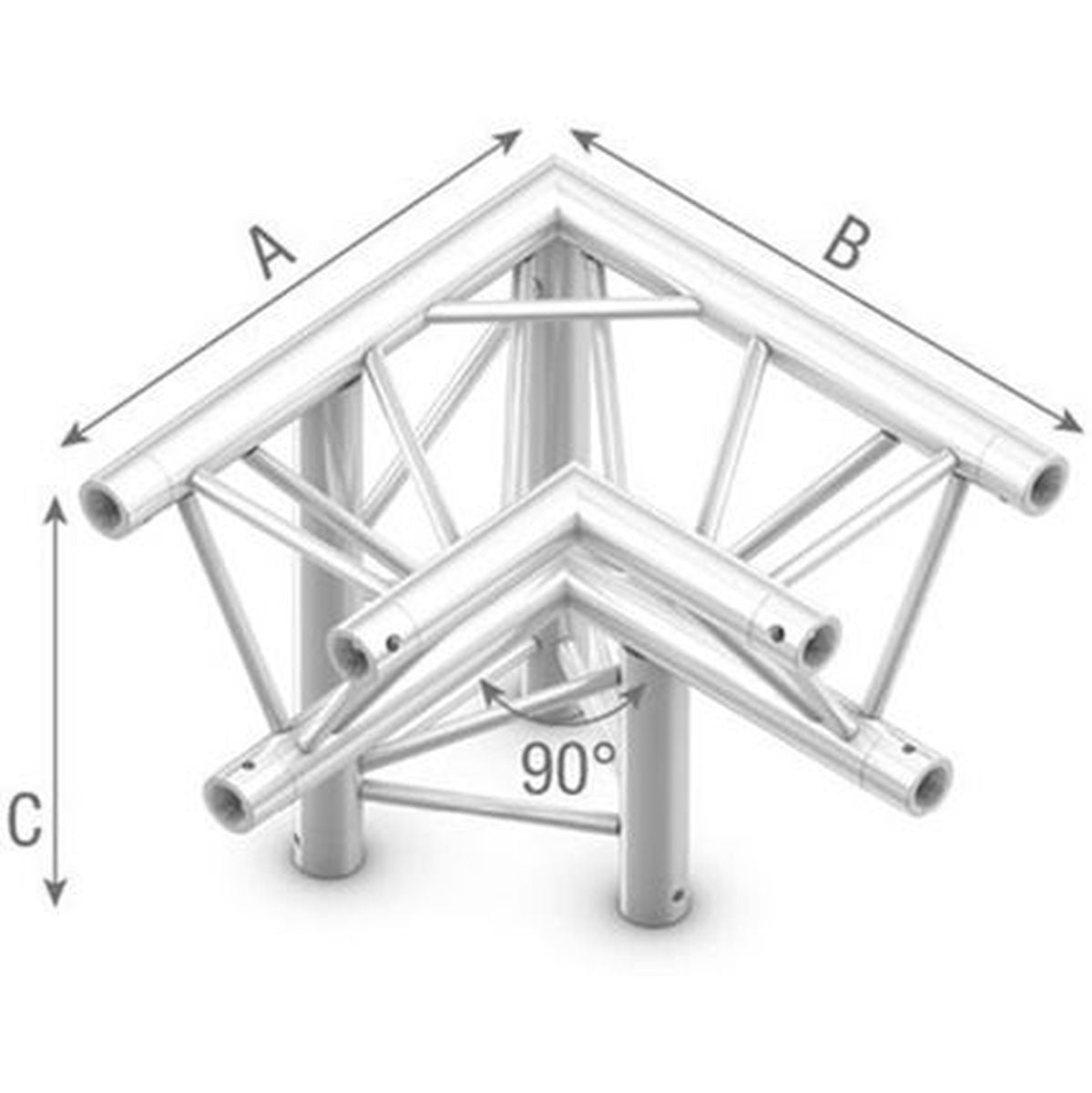

StudioKing Truss Triangle 90 Degree Angle Down Left Top Down

StudioKing Truss Triangle 90 Degree Angle Down Left Top Down | A defined 90-degree truss angle

When a straight truss run doesn’t match the direction in your layout, this StudioKing truss triangle gives you an angled option to consider. It’s named for a 90-degree angle, with the orientation described as down left top down. That makes the direction part of the product name especially important when you’re planning a structure: it helps distinguish this piece from a straight section or a differently oriented angle. It’s suited to studio users who are putting together a truss layout and already know the turn they need. The honest point is that the title gives a clear angle and orientation, but not a full drawing of how the finished structure will look. For that reason, treat the exact wording as a planning cue and compare it with your intended layout before choosing this specific piece.

Planning around the named direction

Start with the shape you want your truss layout to follow, then note where the 90-degree turn needs to sit and which way it should point. That simple check matters here: an angle can be correct in degrees and still be the wrong orientation for a particular plan. The words “down left top down” are part of this product’s designation, so keep them with the product name when discussing the piece or matching it to a layout. If you’re working from a sketch, marking the intended direction clearly can help you compare the named orientation with the turn shown on the page. This isn’t a description of extra fittings or connection details; it’s a practical way to use the information that is given. Choose it for the specific angle and direction stated, rather than assuming every 90-degree truss angle is interchangeable.

Technical Specifications

• Product type: Truss triangle
• Angle: 90 degrees
• Orientation: Down left top down
