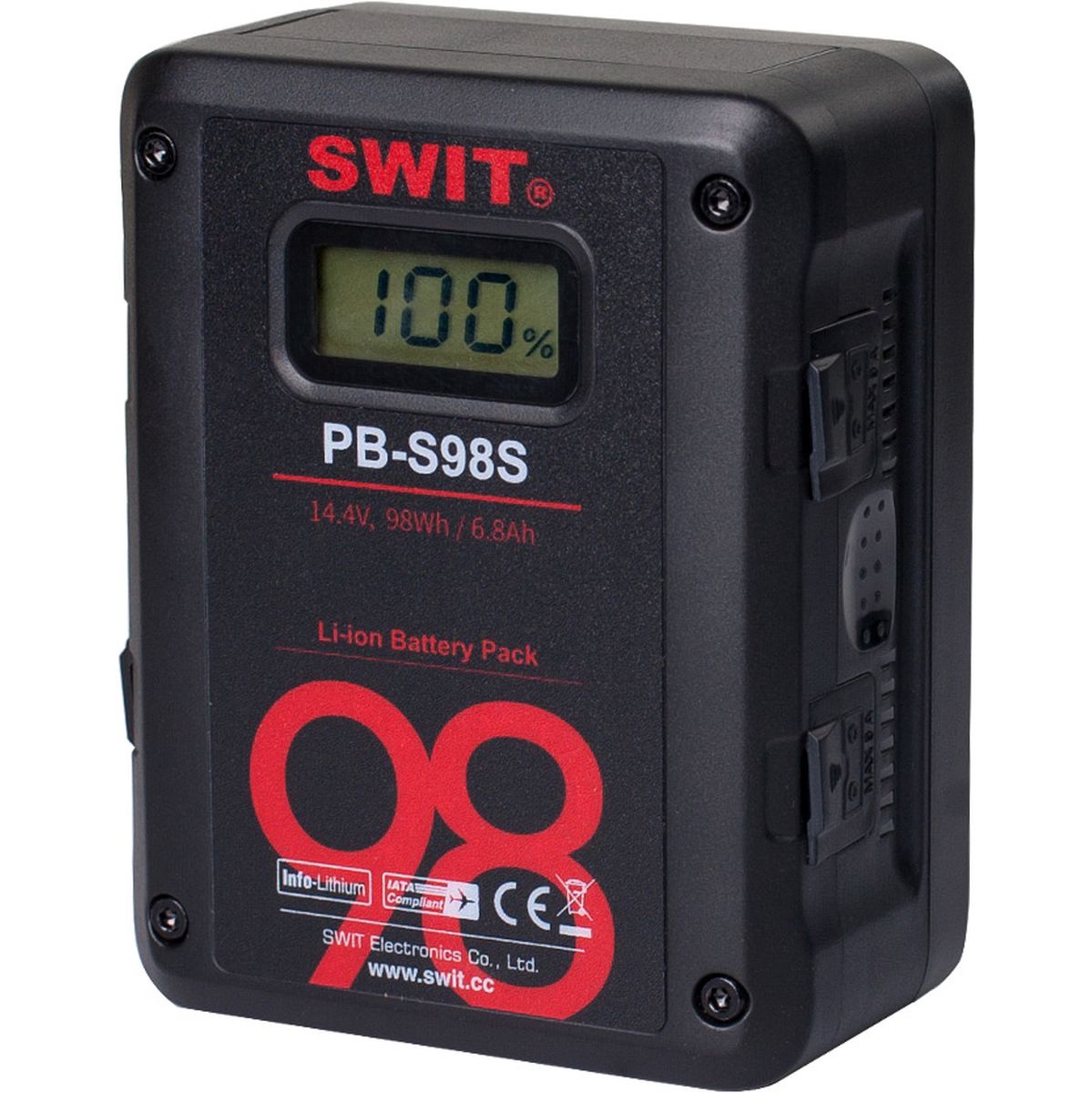

SWIT PB-S98S PB-S98S | 98WH Multi-Sockets Square Cine Battery V-Mount

Compact V-Mount Power for Cine Cameras

The SWIT PB-S98S is a square 98Wh cinema battery designed to fit neatly with most cine cameras thanks to its shorter, more compact form factor. Built with 12 high-quality 18650 cells, it delivers a nominal voltage of 14.4V and a capacity of 98Wh / 6.8Ah, offering reliable performance for professional video setups.

Despite its compact size, this battery is capable of powering a standard camera for around 3 hours and can still provide up to 150W / 12A output even when the charge level is extremely low. It is a practical choice for productions that need dependable power in a lightweight package.

Multiple Outputs and Charging Options

• 2x D-tap outputs with a combined 120W / 10A load
• Both D-tap ports support charging input
• 1x USB output at 5V / 2A
• V-mount battery plate for wide compatibility

Smart Monitoring and Protection

The integrated OLED display shows remaining battery percentage, estimated runtime, and battery cycle count. It also supports power information display on compatible Sony and RED cameras, making it easier to monitor status during production.

Built-in protection helps guard against overload, overcharging, short circuits, and abnormal temperature conditions. If a protection mode is triggered, the battery displays the relevant warning so you can take the necessary steps to restore normal operation and help maintain long-term battery health.

Technical Specifications

• Battery mount: V-mount
• Nominal voltage: 14.4V
• Capacity: 98Wh / 6.8Ah
• Maximum total load: 150W / 12A
• USB output: 5V / 2A, 10W
• D-tap output: 120W / 10A
• Charging temperature: 0°C to 40°C
• Discharging temperature: -20°C to 50°C
• Maximum charging current: 3A
• Dimensions: 121 x 95 x 59 mm
• Weight: 809 g

In the Box

• 1x SWIT PB-S98S 98Wh Multi-Sockets Square Cine Battery, V-mount
