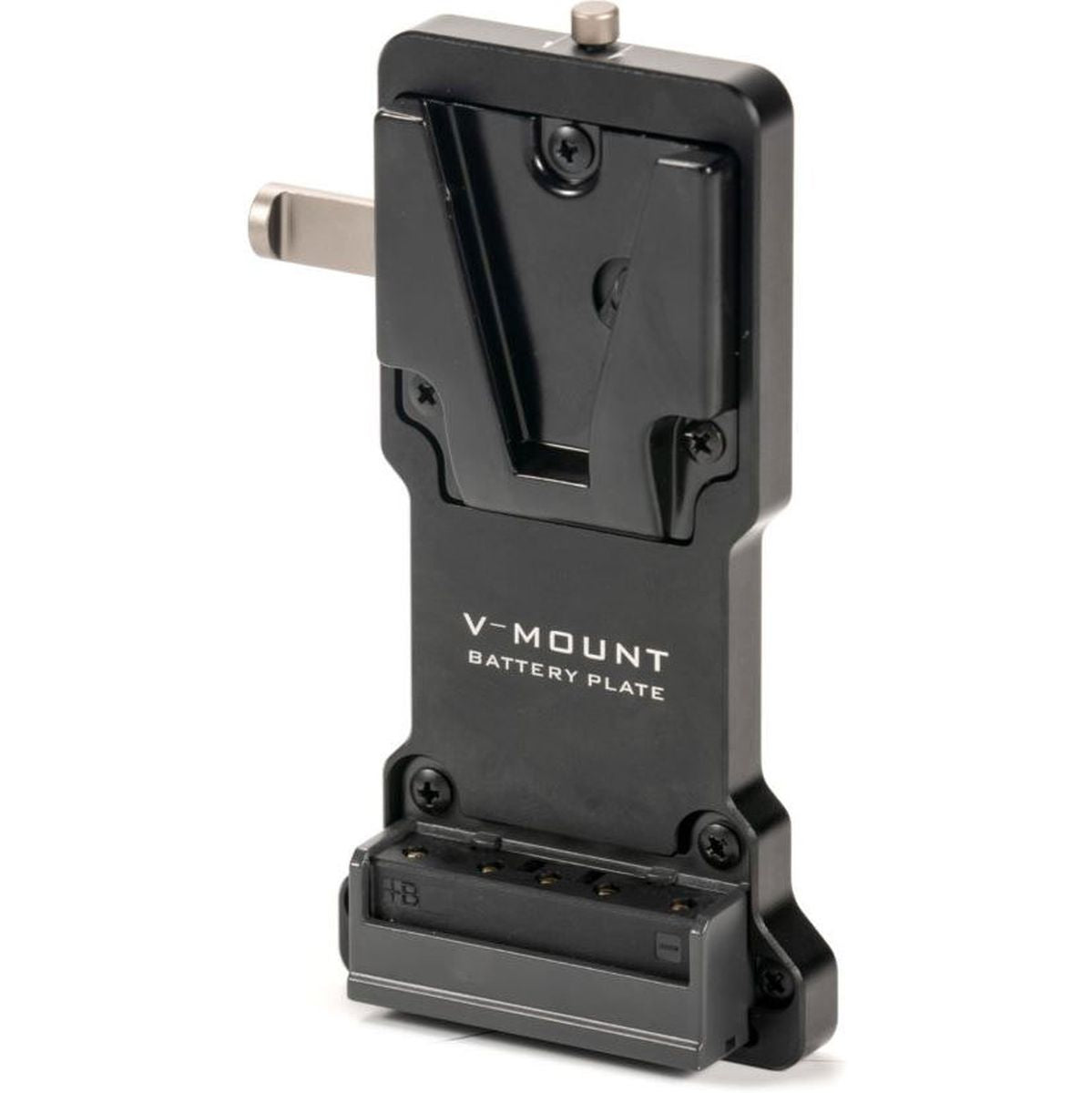

Tilta Tga-PPP-V Battery Plate For RS 2 Power Pass-Through Plate - V Mount

Tilta Power Pass-Through Plate for DJI RS Series V-Mount

Expand the power options of your DJI RS gimbal with this versatile pass-through plate from Tilta. Designed to replace the original plate on the RS2, RS3, RS3 Pro, RS4, and RS4 Pro, it gives you a more flexible setup for powering cameras and accessories while keeping your rig neatly balanced.

Mount the plate in the same way as the original Ronin plate, then attach a V-mount battery plate underneath for external power. With two P-Tap outputs, a 2-pin Lemo port, and a USB-C connection delivering up to 45W, this system is ideal for powering your camera, monitor, wireless focus motors, and other essential gear.

The 2-pin Lemo port can also be used as a power input, allowing the plate to be fed from an external source using a compatible 2-pin power cable. By lowering the center of gravity, the setup improves overall gimbal balance and handling, especially when working with heavier camera bodies or longer lenses.

Compatibility with DJI accessories is maintained thanks to the familiar Manfrotto receiver on top and cold shoe mount underneath. That means you can continue using accessories such as the Manfrotto Quick Release Plate or Raven Eye wireless video transmitter without compromise.

Key Features

• Compatible with DJI Ronin RS2, RS3, RS3 Pro, RS4, and RS4 Pro gimbals
• Supports expanded power delivery with interchangeable V-mount battery plate
• Multiple power outputs: dual 14.8V P-Taps, 2-pin Lemo, and USB-C (45W, 20V/2.25A)
• Improved balance through a lower center of gravity for smoother gimbal performance
• Works seamlessly with the Hydra Alien and Float System
• Durable aluminium construction
• Pass-through plate dimensions: 159 x 64.7 x 17.3 mm
• Weight: 499 g

In the Box

• 1x Power Pass-Through Plate for DJI RS 4 (TGA-PPP3)
• 1x Battery Plate for DJI Ronin Power Pass-Through Plate - V-Mount (TGA-PPP-V)
