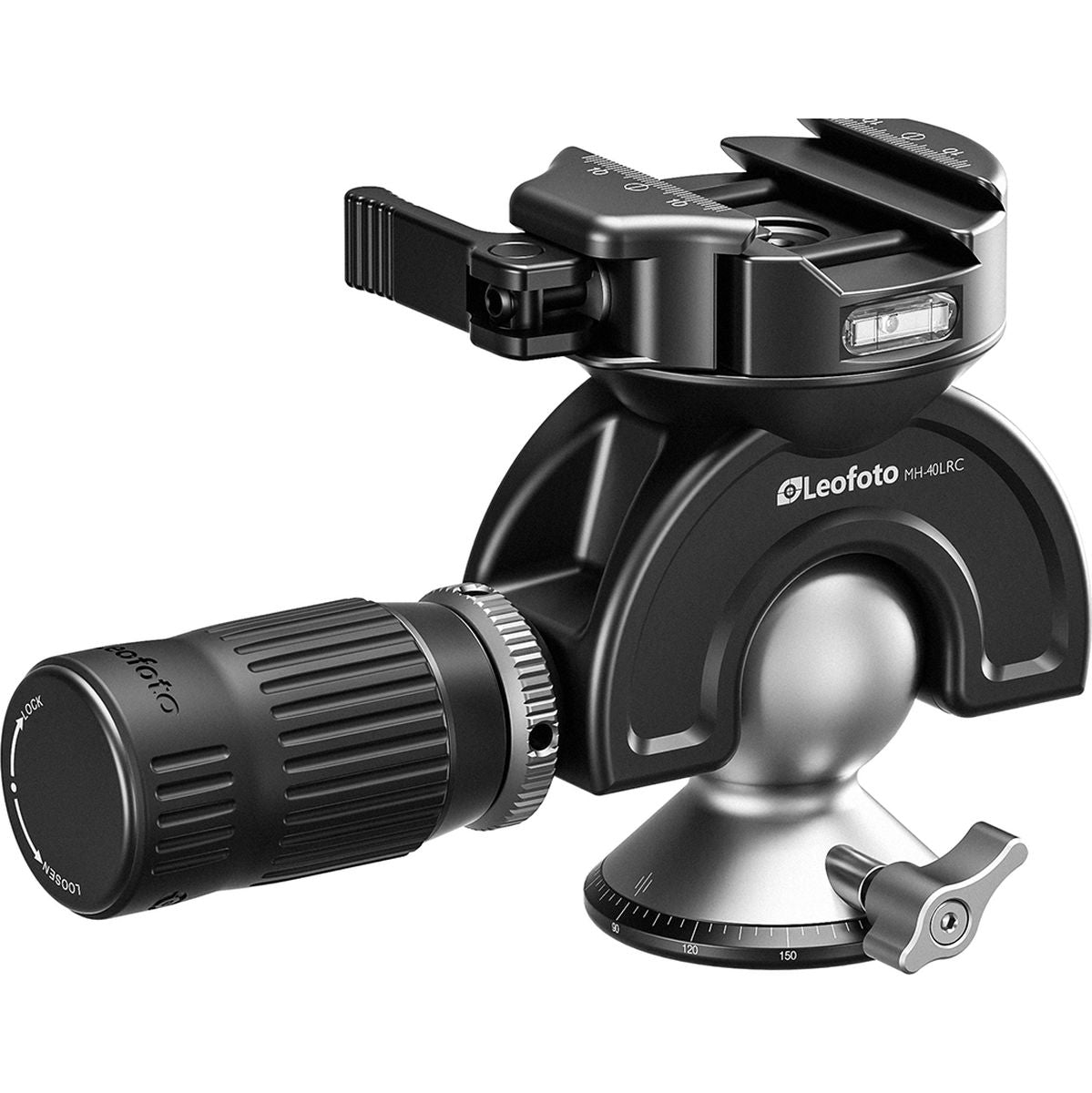

Leofoto MH-40LRC Panning Ball Head

Leofoto MH-40LRC Panning Ball Head

The Leofoto MH-40LRC is a high-performance panning ball head built for photographers and for demanding field use. Its ergonomic control handle offers fast, precise adjustment and secure locking, while the extendable grip makes it easier to operate when wearing gloves or working in cold conditions.

A silver internal tension knob lets you fine-tune resistance for smoother, more controlled movement. The precision-machined ball delivers fluid motion with more than 80% of the ball exposed, giving you excellent freedom of movement. With a tilt range of +/-55°, this head is designed to support dynamic framing and quick directional changes.

The pan base is laser-engraved with 2.5-degree markings from 0 to 360 degrees, making panoramic setup more accurate and repeatable. Mounting is handled via a standard 3/8" thread, and the updated hybrid clamp accepts both Arca and Picatinny plates. An included hex screw allows you to adjust clamp width for compatibility with non-standard Arca and Picatinny rails.

Key Features

• Fully dynamic ball head with steering-style control and lever-release hybrid clamp
• Extendable handle for improved grip and glove-friendly operation
• Internal tension adjustment for customized ball resistance
• Precision ball design with over 80% exposure for ultra-smooth movement
• Laser-engraved panning scale from 0 to 360 degrees in 2.5-degree steps
• Compatible with Arca and Picatinny rails
• Adjustable clamp width for non-standard plates and rails

Specifications

• Height: 104 mm
• Base diameter: 50 mm
• Ball diameter: 50 mm
• Mount: UNC 3/8"
• Maximum load: 20 kg
• Weight: 628 g

Package Contents

• 1x Leofoto MH-40LRC Panning Ball Head
