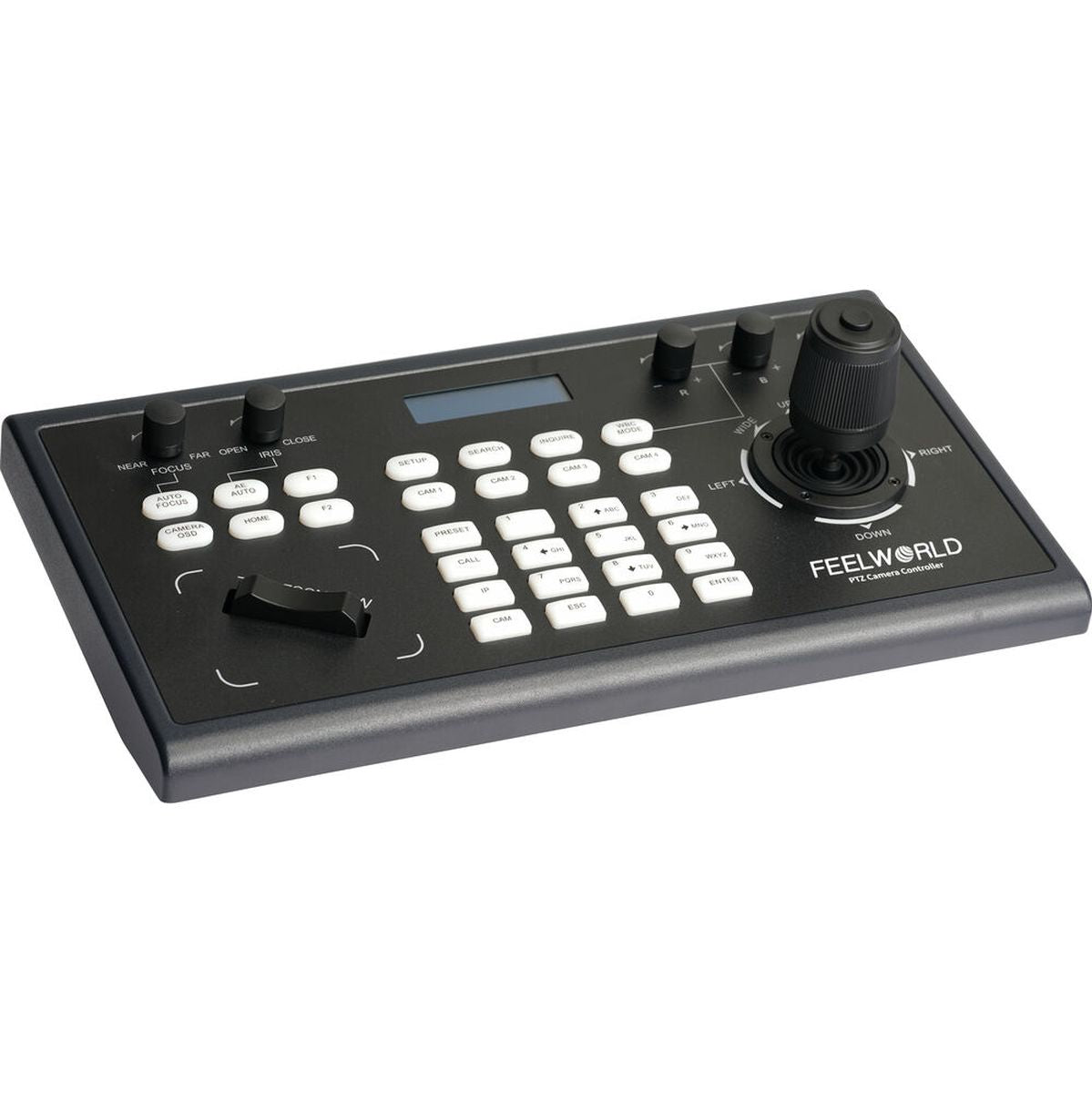

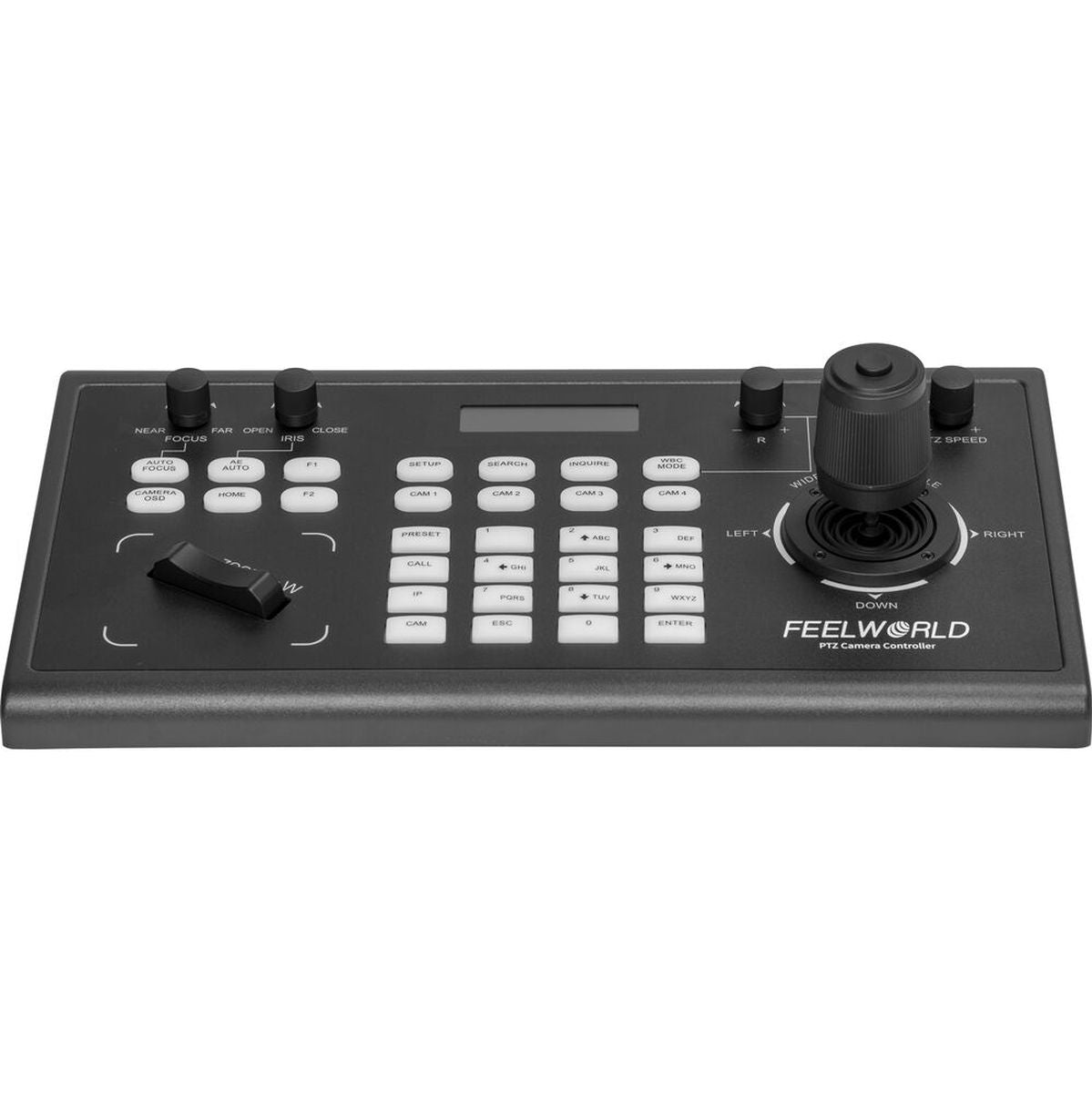

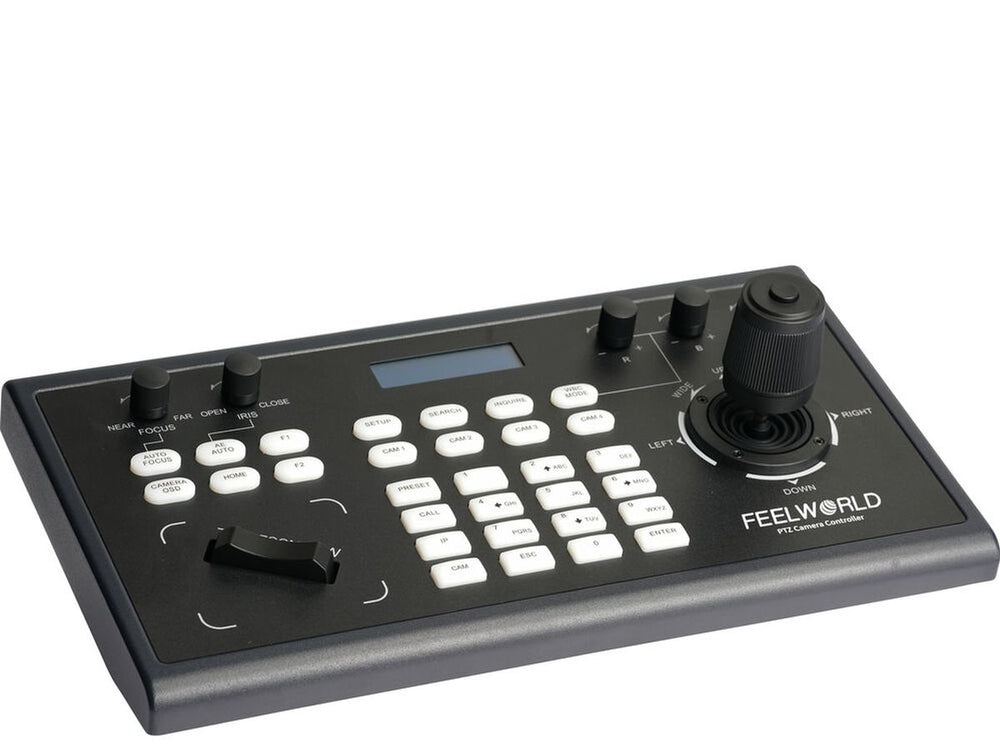

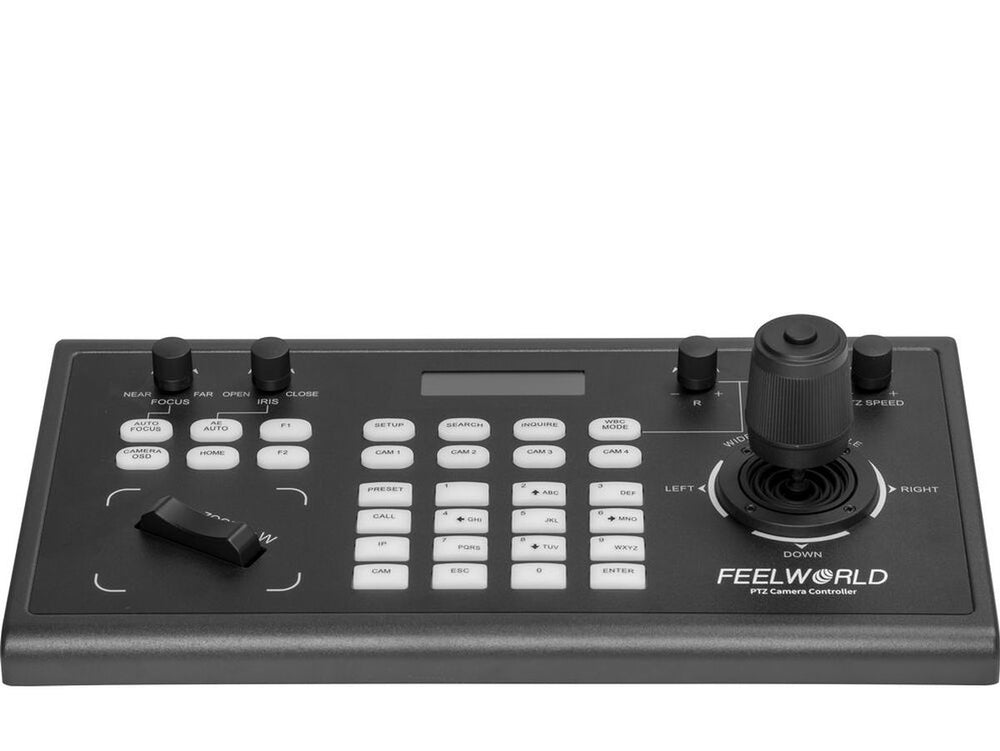

Feelworld KBC10 PTZ Camera Controller

Feelworld KBC10 PTZ Camera Controller: Control up to 255 PTZ cameras

The KBC10’s defining strength is its scale: one control surface can address up to 255 PTZ cameras. The Feelworld KBC10 PTZ Camera Controller is for broadcast teams, professional video-conference rooms and live-stream setups that need centralized camera control. It supports IP VISCA, VISCA, ONVIF, Pelco-D and Pelco-P, with control available over a LAN connection or a serial link. That range of protocols and connection options is useful in multi-camera installations with different control requirements. In a broadcast, an operator can switch between camera positions from one station; in a conference room, a single operator can manage the room’s PTZ cameras; for a live stream, camera framing can be adjusted as the action moves. The panel brings camera controls together, and an LCD displays current status while you work. Ethernet control supports Power over Ethernet, and the unit also accepts 12V DC power. Its focus is straightforward: managing multiple PTZ cameras from a dedicated controller, with the choice of network or serial control for the installation.

Why it is useful

• Variable movement speed: Adjust pan, tilt and zoom speed to suit the shot. Slower movement is useful for measured reframing, while faster settings can help follow a change in the scene.

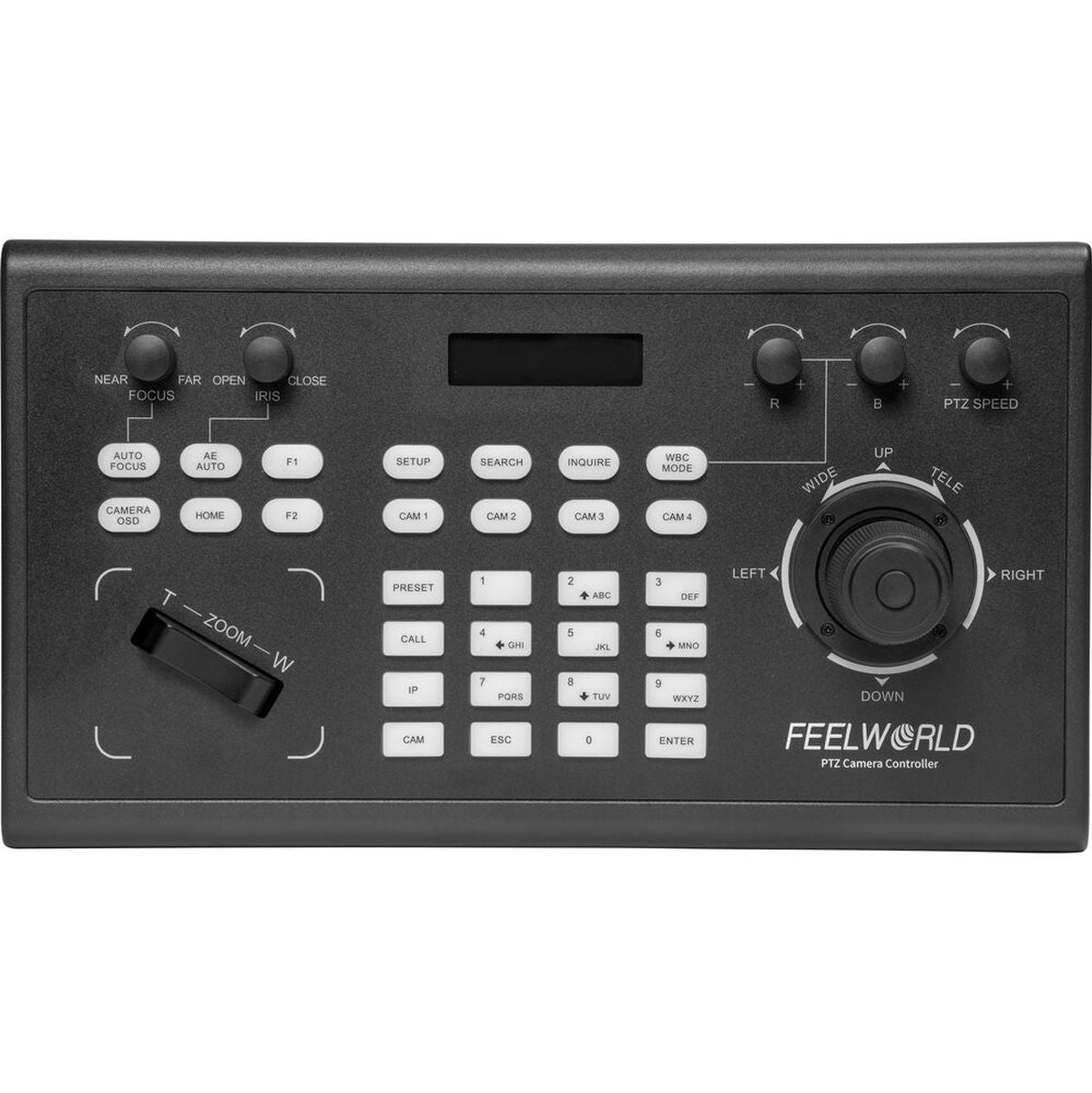

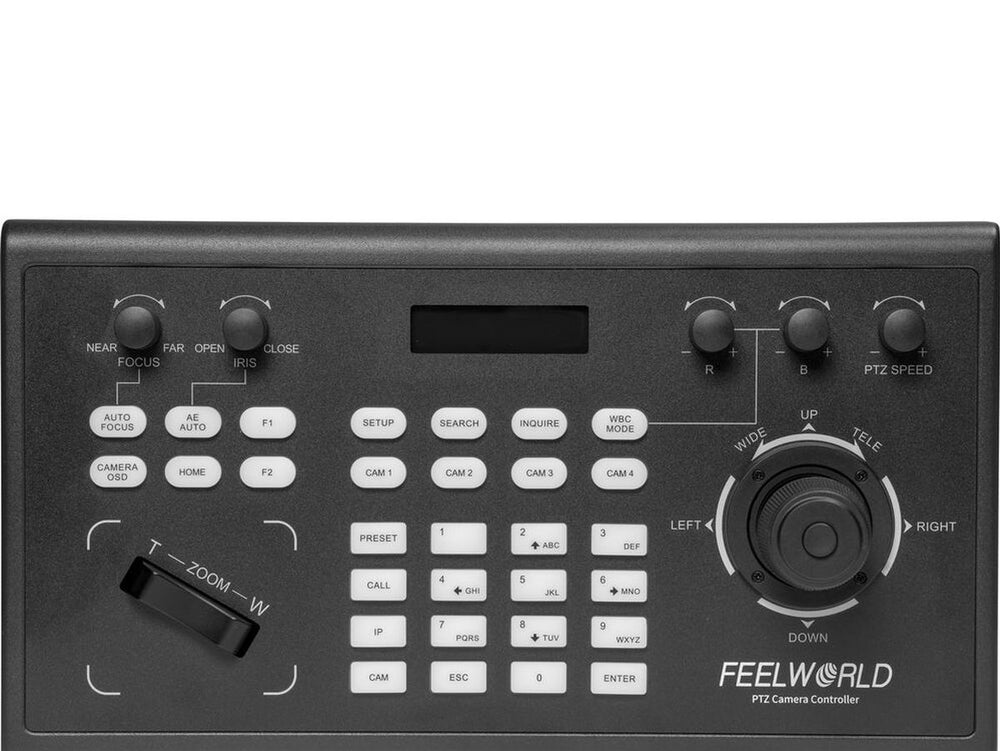

• Camera image controls: The panel provides access to focus, iris, red and blue gain, white balance and on-screen display settings. Keeping these controls at the operator’s station is useful when a camera needs a quick adjustment during a production.
• 255 camera presets: Save and recall up to 255 presets. This is useful for returning a camera to a known view, such as a speaker position in a conference room.
• Live status on the LCD: The built-in display shows camera status while you operate the controller. It gives the operator a visible reference during multi-camera work.

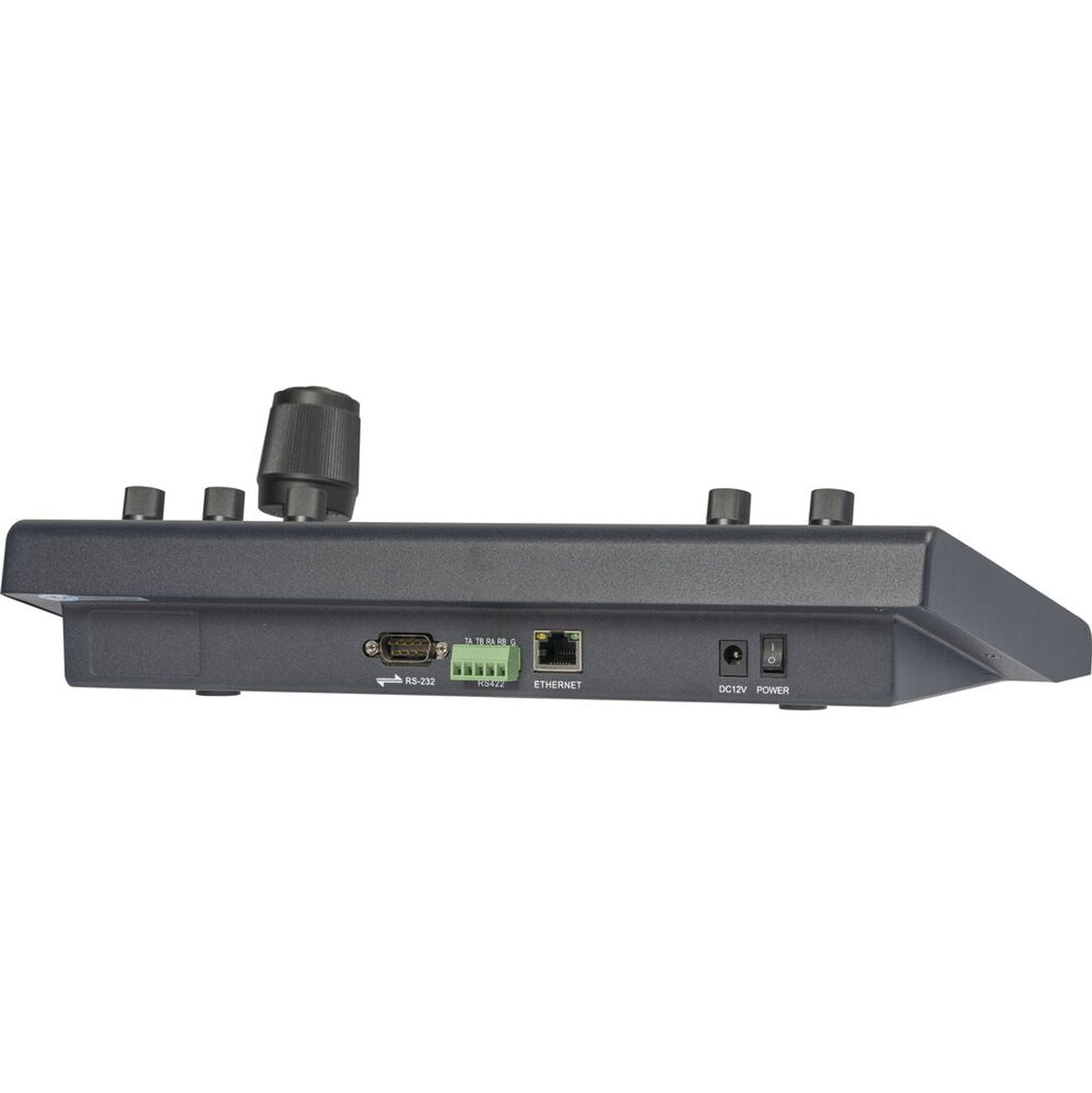

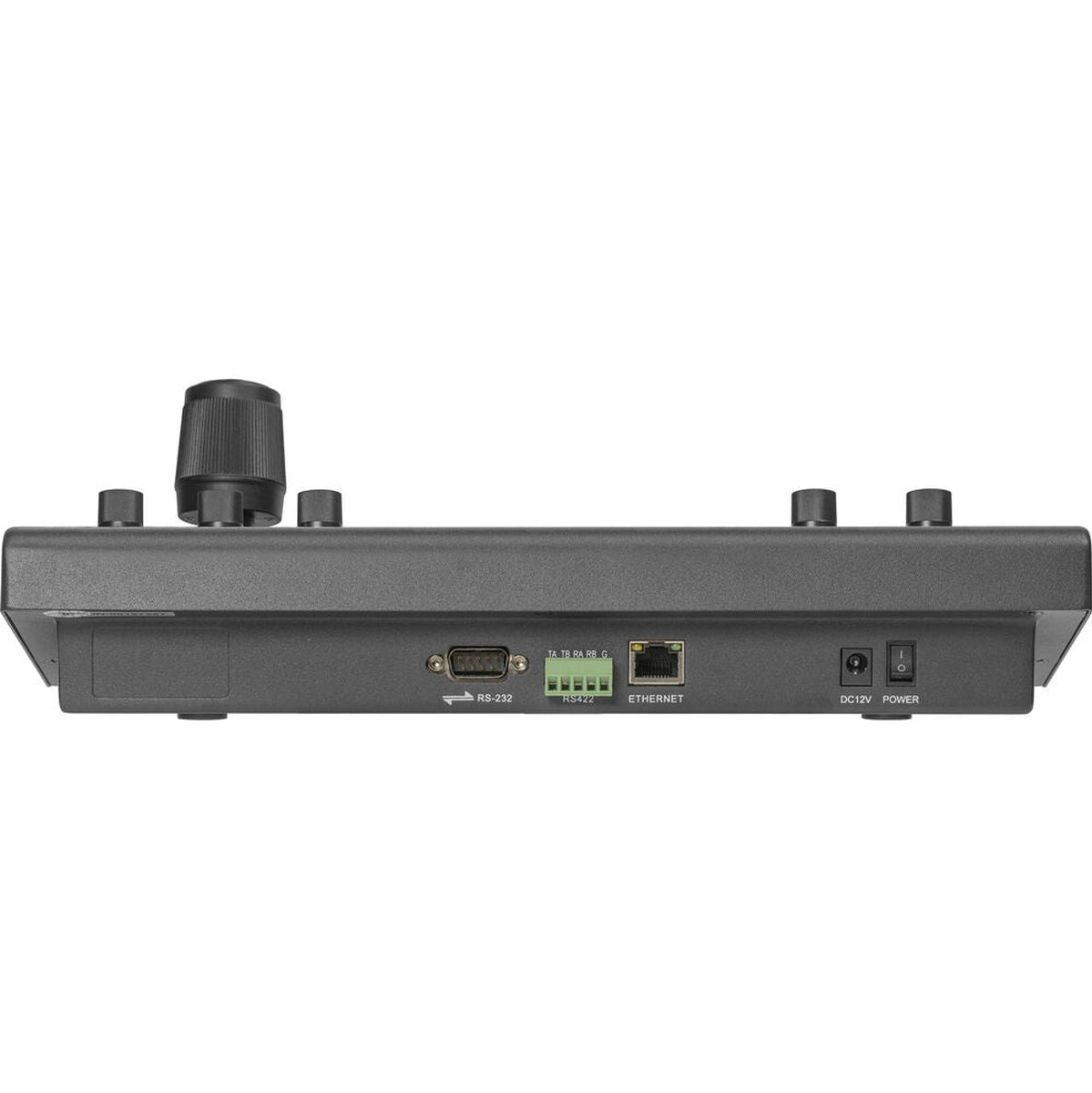

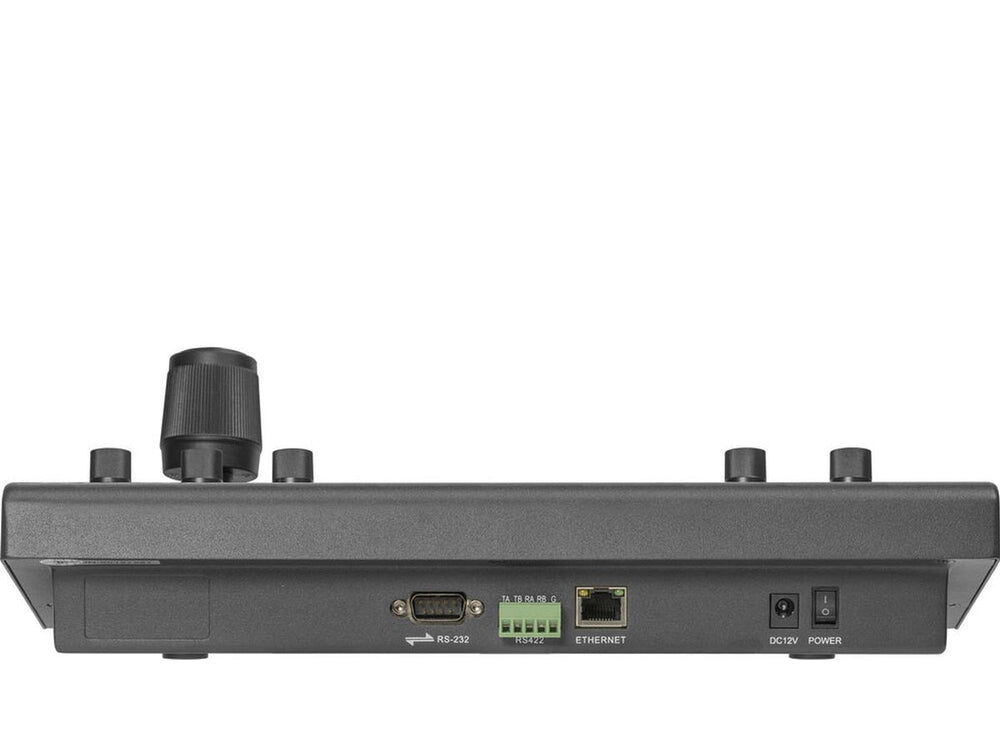

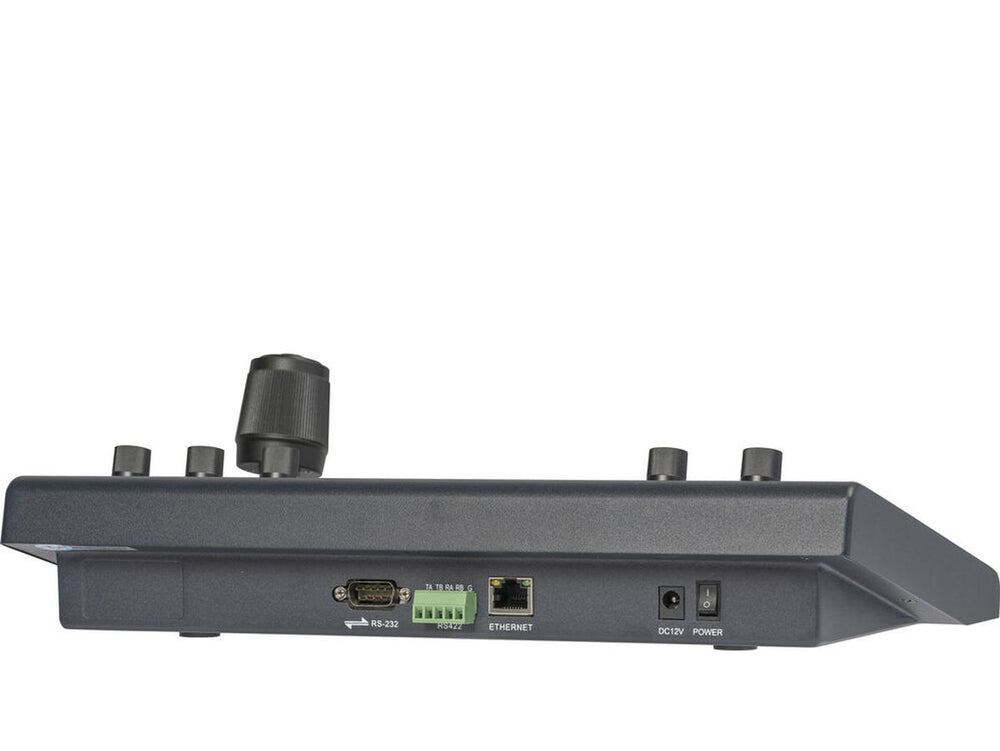

• Network and serial connections: The controller has an RJ45 connection, an RS-232 D-Sub 9-pin output and an RS-422 Phoenix output. These provide options for installations using Ethernet or serial control.
• PoE or 12V DC power: The KBC10 supports Power over Ethernet as well as 12V DC input. The available power options can suit different control-room setups.

Good to know

The controller measures 32 × 18 × 10 cm and weighs 1.69 kg, so allow for its footprint on a desk or control surface. Its stated operating range is 0 to 50°C, with humidity from 0 to 90%. Power consumption is listed as 0.6 W. These details are useful when planning where the controller will sit and how it fits into a fixed installation.

What's Included

• Feelworld KBC10 PTZ Camera Controller
• Power adapter

Technical Specifications

• Brand: Feelworld
• Model: KBC10
• Type: PTZ camera controller
• Supported camera channels: Up to 255
• Protocols: IP VISCA, ONVIF, VISCA, Pelco-D, Pelco-P
• Control interfaces: RJ45, RS-232 (D-Sub 9-pin), RS-422 (Phoenix)
• Presets: 255
• Power: PoE or 12V DC
• Power consumption: 0.6 W
• Dimensions: 32 × 18 × 10 cm
• Weight: 1.69 kg
• Operating conditions: 0 to 50°C; 0 to 90% humidity
