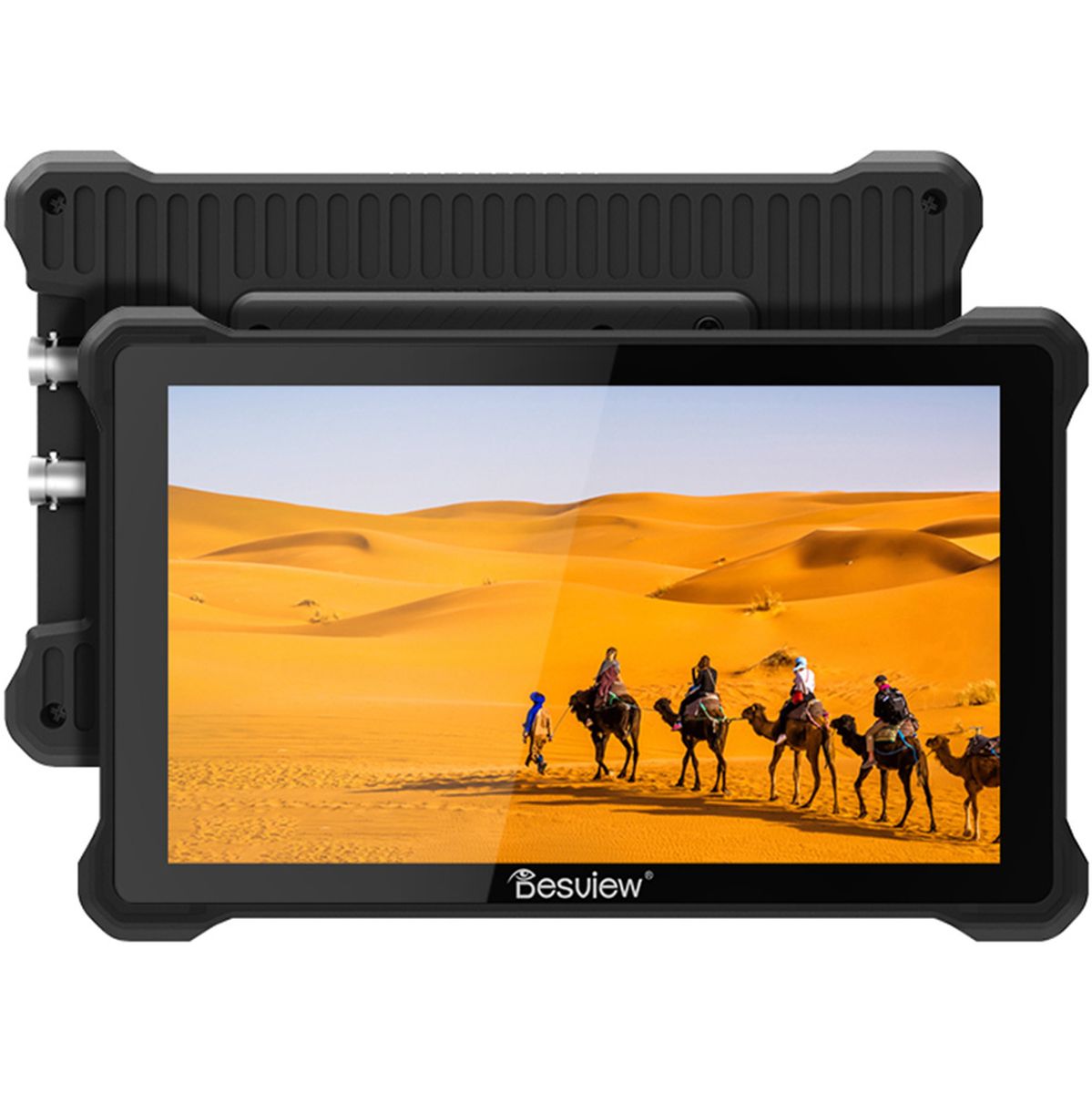

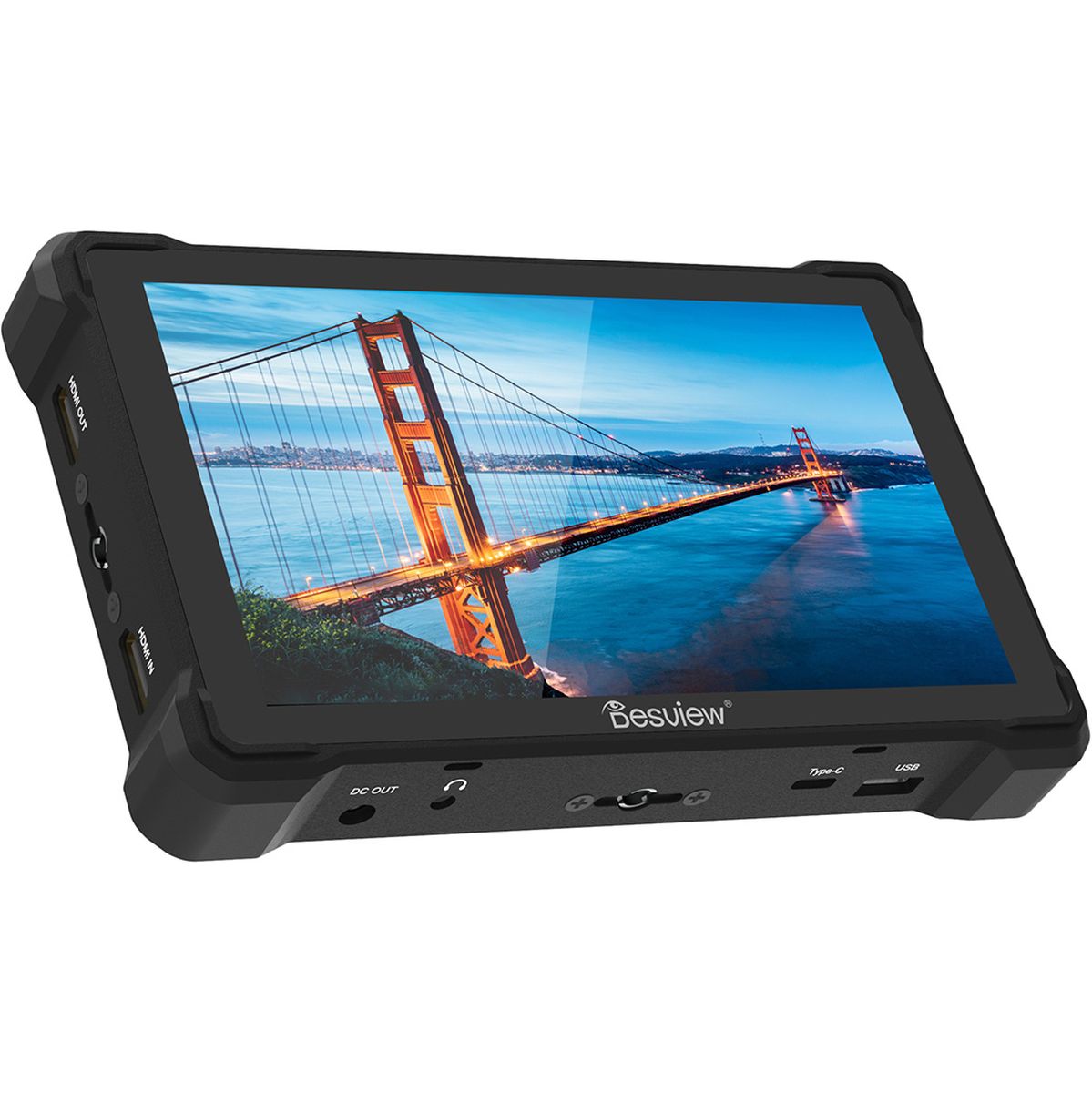

DESVIEW R7SIII 7 inch On Camera Montor SDI

Overview of the Desview R7SIII 7-inch On-camera SDI Monitor

The Desview R7SIII 7-inch On-Camera SDI Monitor enables you to view your video recording on a sharp 7" IPS LCD display. The screen boasts a resolution of 1920 x 1080, a brightness of 2800 cd/m², and a contrast ratio of 1000:1. Additional highlights include a generous viewing angle of 178°, 10-bit color depth, and touchscreen controls. The device offers HDMI 2.0 and 3G-SDI input and output, a headphone output, and support for DCI 4K60 HDMI video input and output with integrated audio.

The monitor receives power via its built-in V-mount battery plate or over a USB-C connection. Alternatively, power can be provided through the use of a separately sold DC-barrel adapter. The design also accommodates onboard camera power with an 8VDC output, which can utilize a separately-purchased dummy battery or cable. To install the R7SIII onto your setup, you can use either a 1/4"-20 threaded hole located on the sides or bottom and an articulated arm or the provided tiltable monitor bracket.

Desview R7SIII 7-inch On-camera SDI Monitor Features

• 1920 x 1080 touchscreen display
• Screen Size: 7 inches (or 17.7 cm)
• Brightness 2800 cd/m², 1000:1 contrast

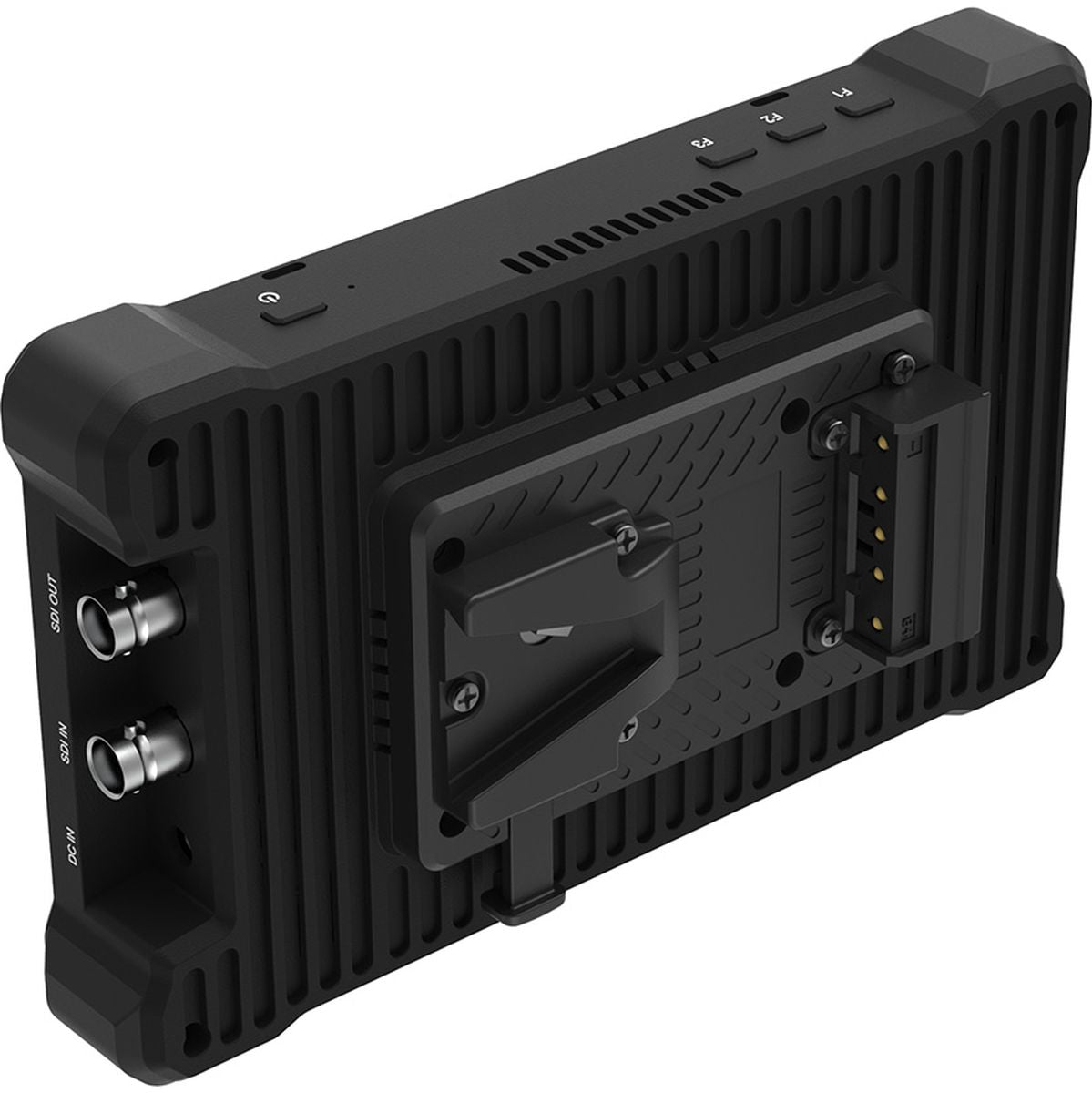

• HDMI 2.0, 3G-SDI input and output
• DCI 4K60 HDMI video input support
• HDR and LUT support via USB-A
• Assistance features include pixel zoom, focus aid, and peaking tools
• Incorporates vectorscope, waveform, and zebra aids
• USB-C and DC power input/output
• 3.5 mm headphone output, 1/4"-20 threads

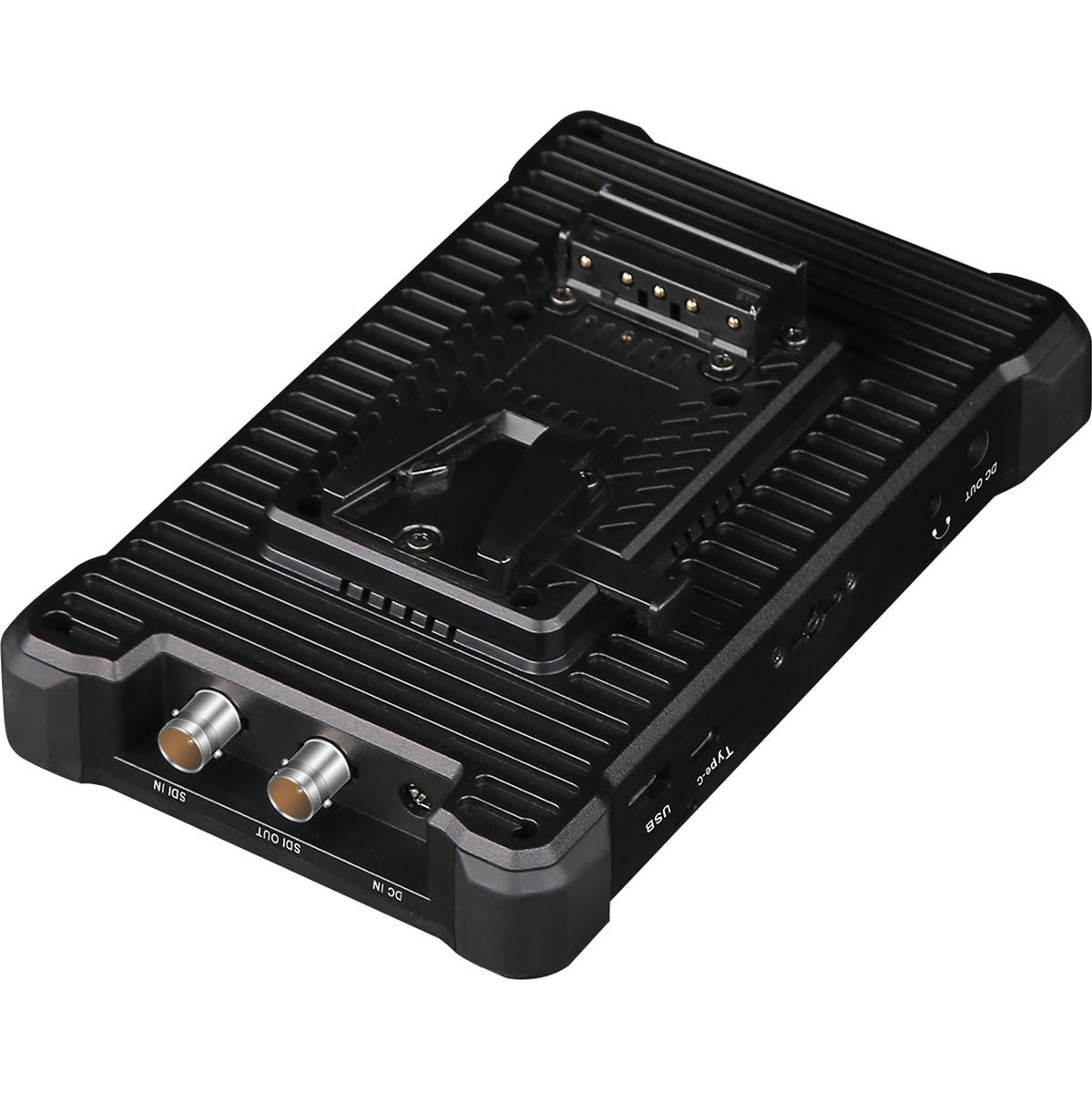

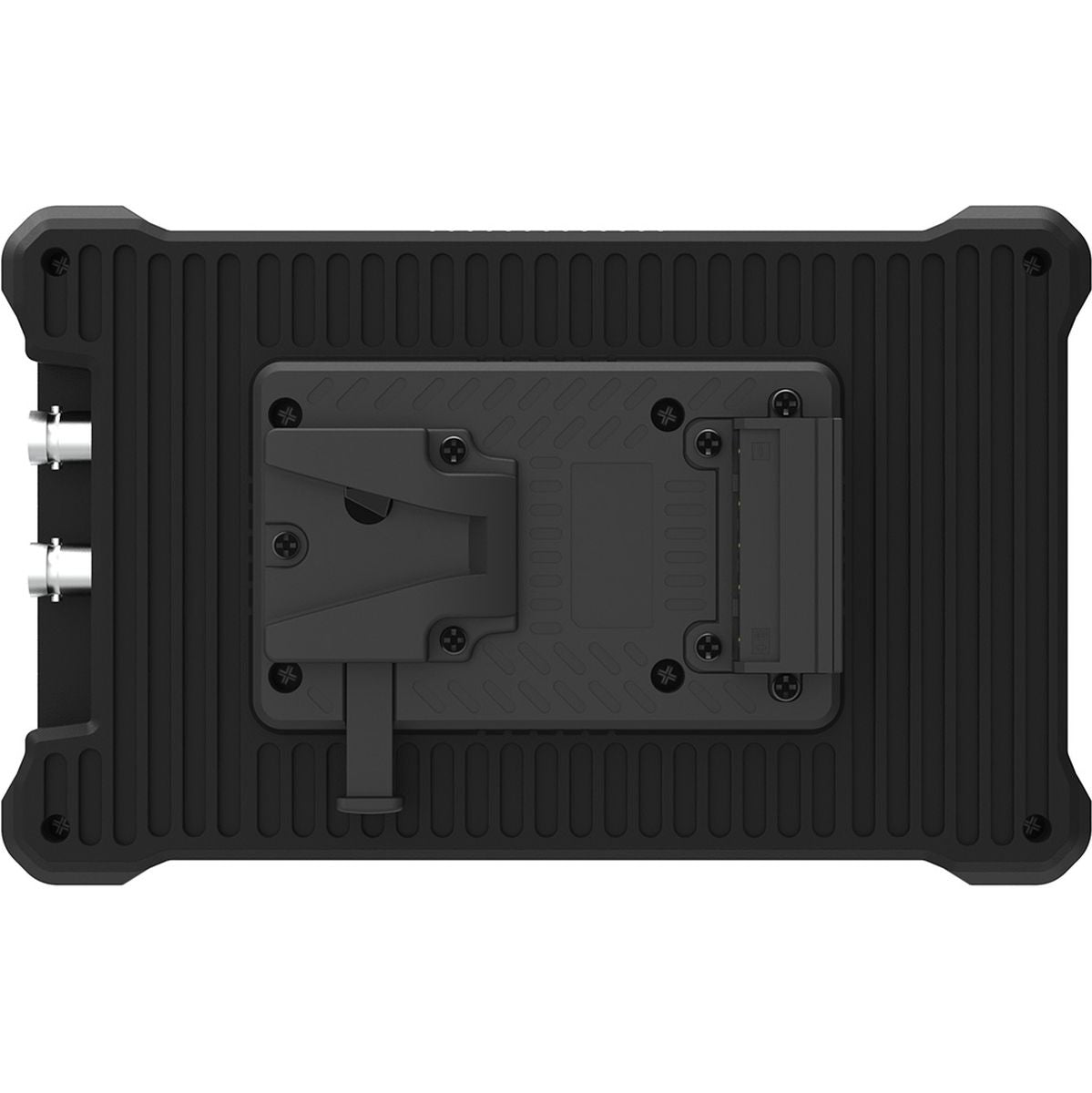

• V-mount battery plate
• Dimensions: 190.2 x 117.7 x 52.3 mm
• Weight: 500 grams

Package Contents

• Desview R7SIII 7-inch On-camera SDI Monitor
• Monitor Bracket
• A-A-A HDMI Cable
• A-A HDMI Cable
• Micro HDMI Cable
• U Disk
• Cleaning Cloth
• Carry Bag
• User Manual
