Brinno TLC2020C Construction (TLC2020 + ATH1000 + ACC1000P)

Brinno TLC2020C Construction - up to 82 days of time-lapse

Construction progress becomes a finished Full HD time-lapse with the Brinno TLC2020C Construction bundle: its TLC2020 camera can run for up to 82 days at a five-minute capture interval. The set combines the camera with an ATH1000 weather-resistant housing and an ACC1000P clamp, so you have the main parts for a fixed indoor or outdoor recording setup. It’s a useful way to document a build from early groundwork through to completion, or to record a renovation while the site changes around the camera. The TLC2020 captures HDR images and processes time-lapse footage in the camera, so the result is ready to view without assembling the frames on a computer. Choose Time Lapse for a project that unfolds over hours or weeks, Step Video to join short clips, or Stop Motion when you want to choose each frame yourself. The clamp can attach to a range of surfaces, while the housing protects the camera from rain, dust and dirt. For a long construction schedule, the unusually extended battery life is the key detail: fewer interruptions to a fixed camera position and a finished record of the work as it progresses.

Ready for a fixed time-lapse

• HDR Full HD recording: The TLC2020 records Full HD footage with HDR, capturing changing light and contrast across a construction project.
• Three recording modes: Time Lapse, Step Video and Stop Motion cover long-term progress, joined short clips and individually chosen frames.
• In-camera video processing: Time-lapse footage is assembled in the camera, so you get a completed video rather than a folder of frames to compile yourself.
• ATH1000 protective housing: Rated IP67 and made to resist dirt, sand and dust, the housing also has eyelets for a padlock and rubber covers over the camera buttons.

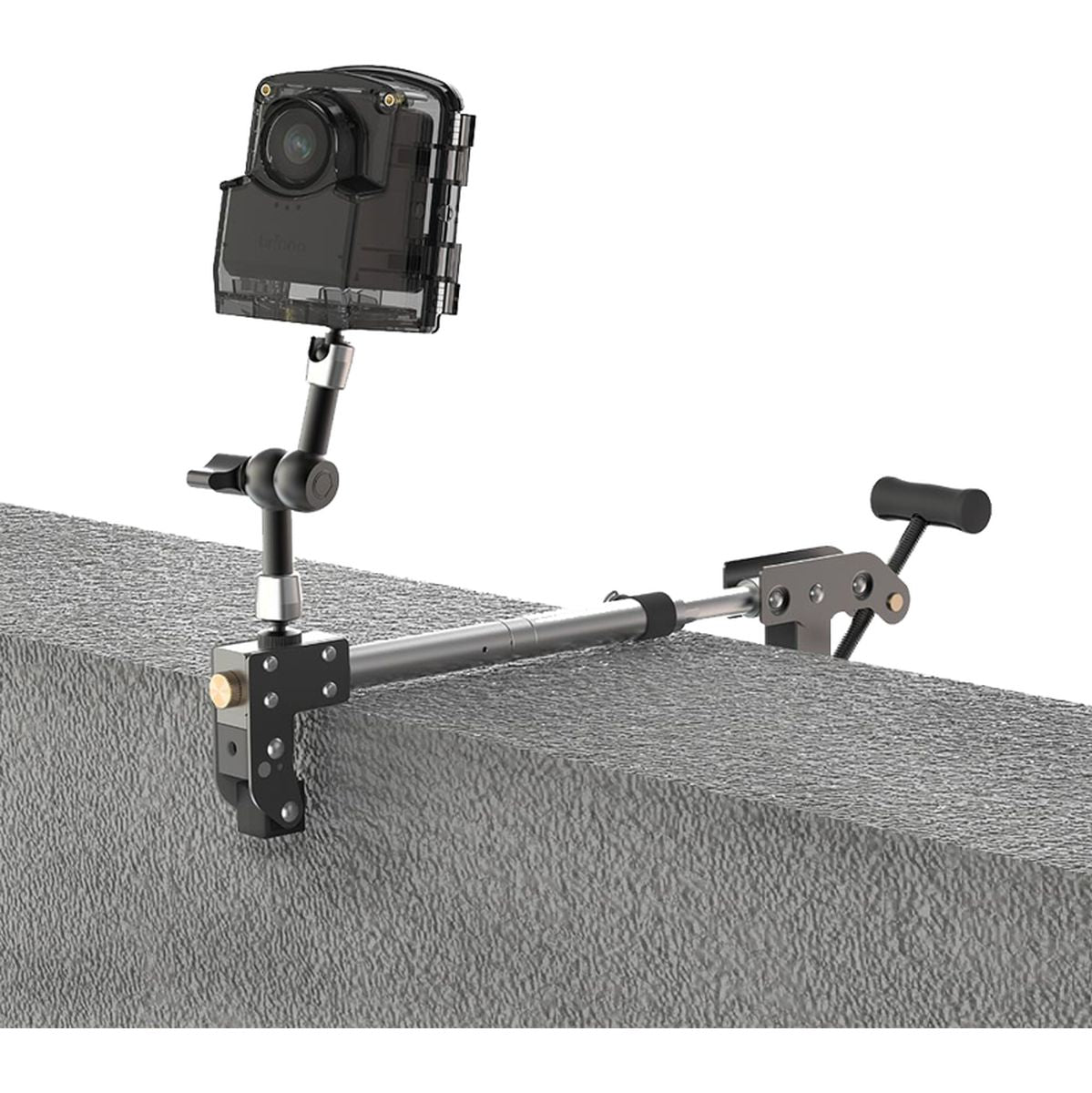

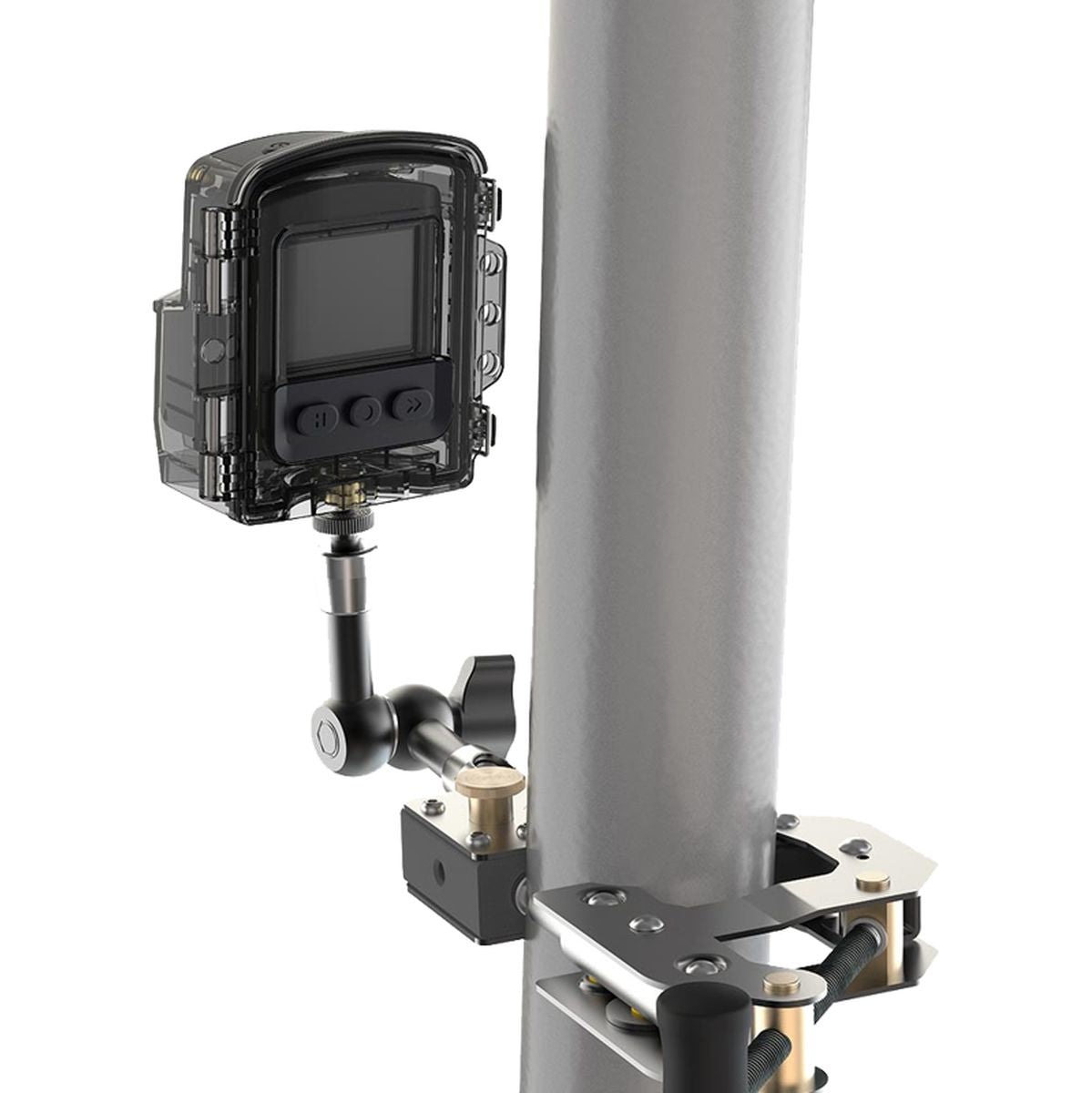

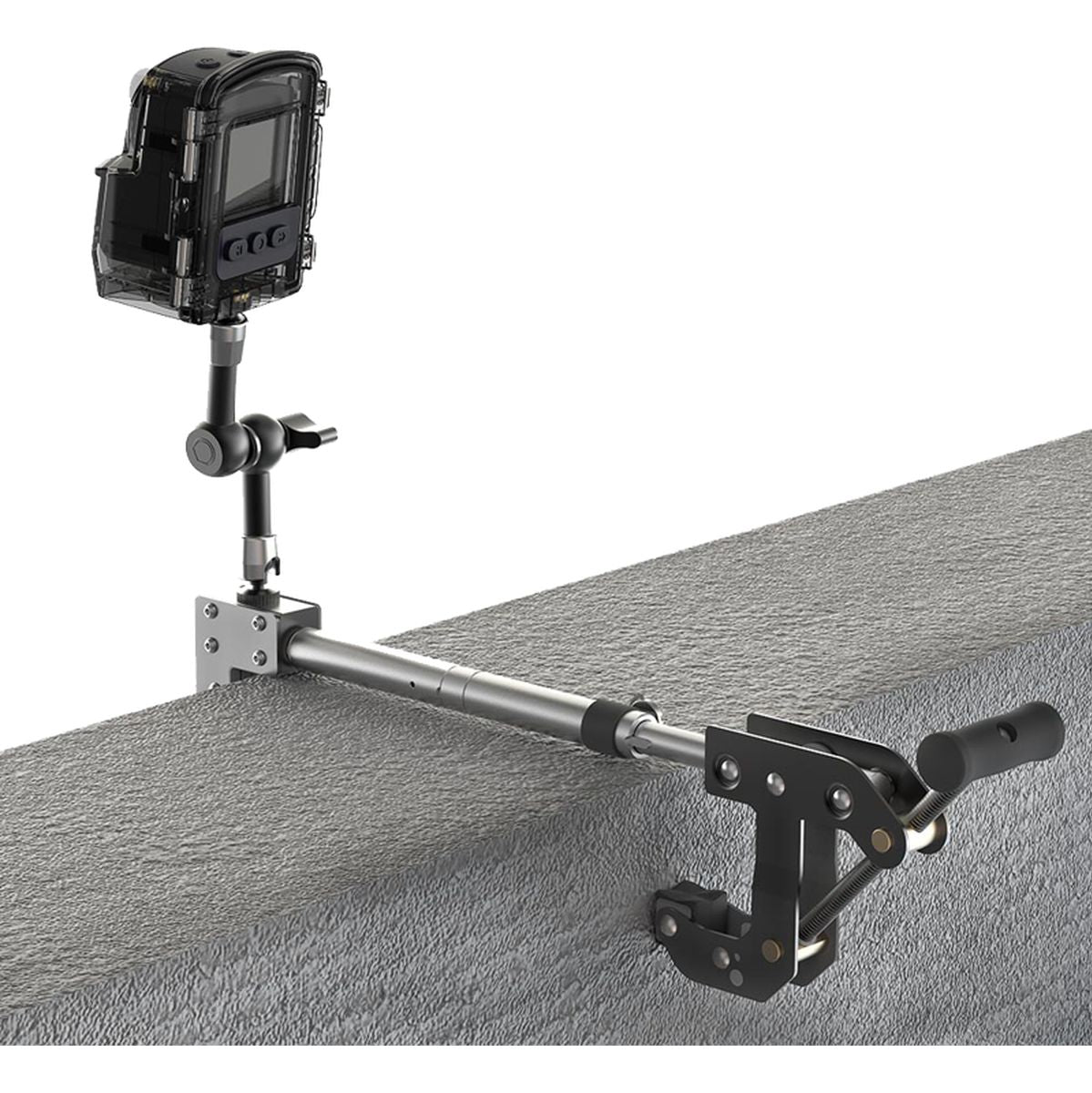

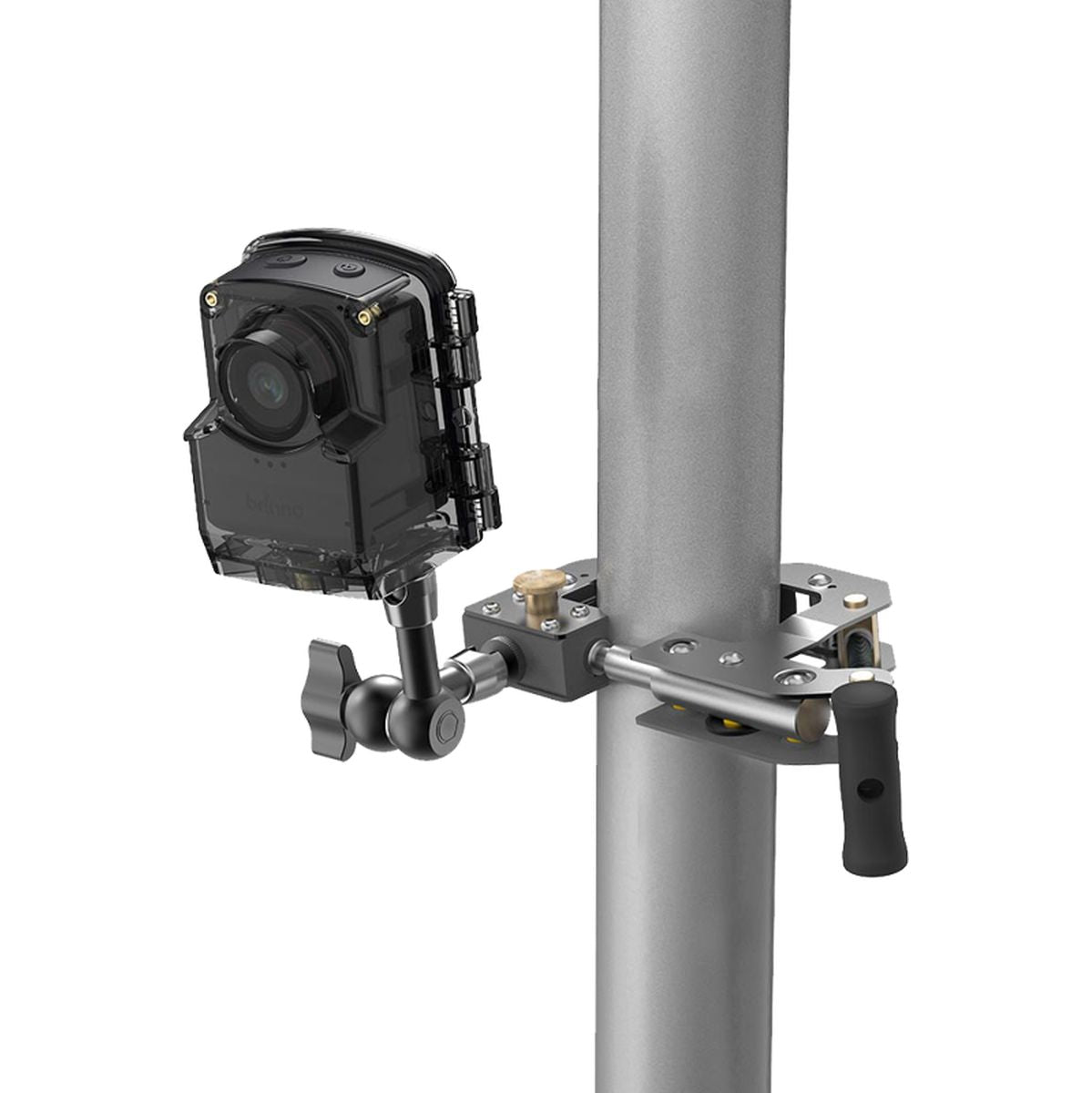

• ACC1000P adjustable clamp: Its clamp fits flat surfaces from 1–90 mm and tubes from 10–90 mm; extension pieces increase the range to 270 mm. The arm rotates through 360° and tilts up to 90° for camera positioning.
• MicroSD recording: The camera supports microSD cards up to 128GB, with Class 10 or faster recommended.
• Two power options: Use four AA batteries or supply power through USB-C, depending on the project setup.

A compact camera, a substantial mount

The TLC2020 measures 60 × 70.6 × 46.6 mm and weighs 97.5 g without batteries, while its 2-inch TFT LCD gives you an on-camera screen for working through the settings. The ACC1000P is a different proposition: folded, it measures 209 × 94 × 39 mm and weighs 1.05 kg. That heavier clamp is part of the setup’s practical appeal on a site, where a secure mounting point matters more than keeping the whole kit pocket-sized.

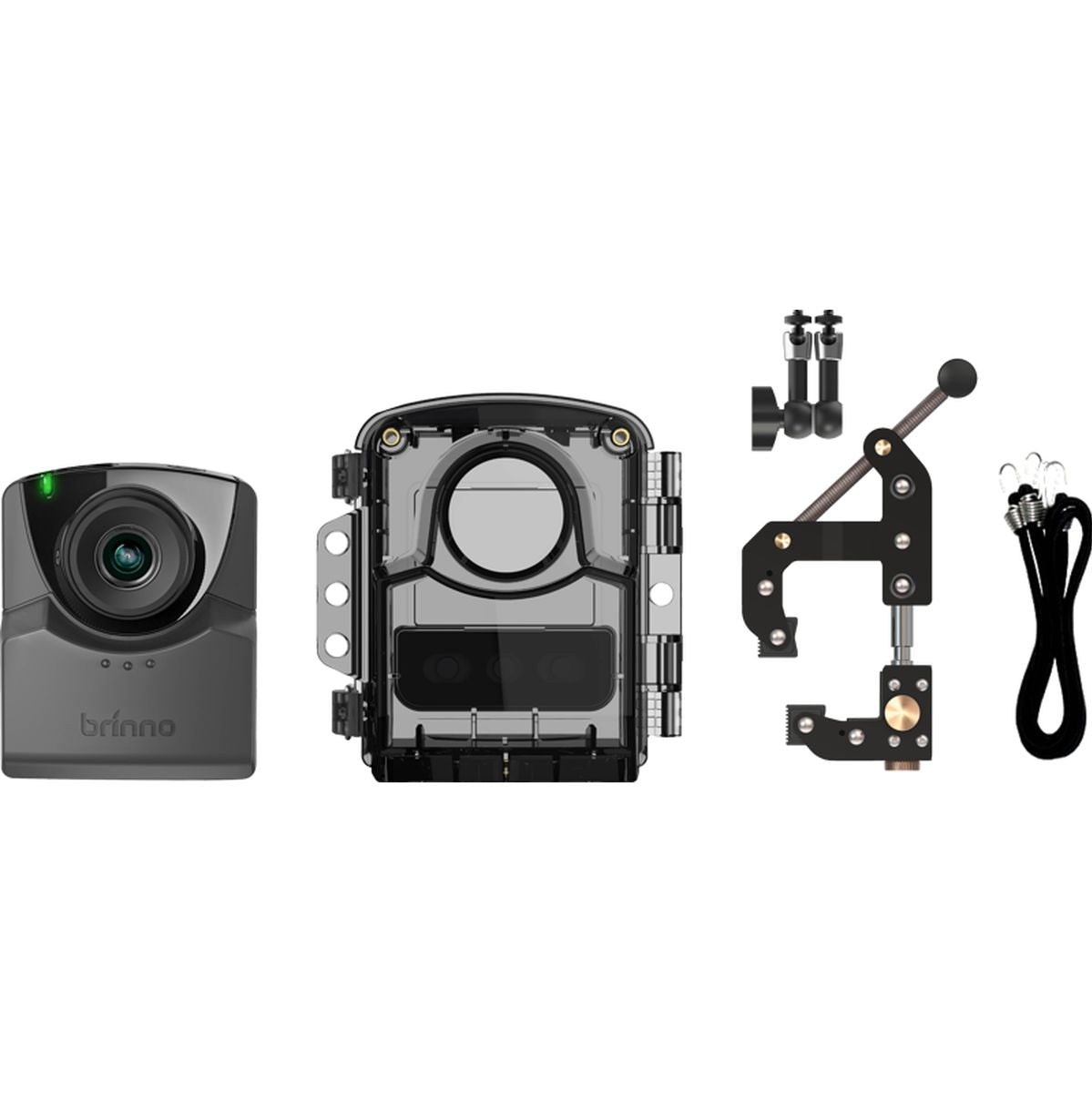

What's Included

• Brinno TLC2020 HDR time-lapse camera
• USB-C cable
• Lens cover
• microSD card
• Screwdriver
• 4 AA batteries
• Battery cover adapter
• Camera manual
• Brinno ATH1000 housing
• Rubber band
• Desiccant
• Brinno ACC1000P camera clamp
• Clamp manual

Technical Specifications

• Brand: Brinno
• Model: TLC2020C Construction (TLC2020 + ATH1000 + ACC1000P)
• Type: IP / security camera; time-lapse camera bundle
• Video resolution: Full HD
• Lens aperture: f/2.0
• Field of view: 118°
• Display: 2-inch TFT LCD
• Storage: microSD, up to 128GB; Class 10 recommended
• Power: 4 AA batteries or USB-C
• Operating temperature: 0–45°C
• Camera dimensions and weight: 60 × 70.6 × 46.6 mm; 97.5 g without batteries
• ACC1000P clamp capacity: 3 kg for the arm; 50 kg for the clamp
