Nanlux Projection Adapter For Evoke Fixtures

Nanlux Projection Adapter for Evoke Fixtures - accepts ETC barrels and lenses

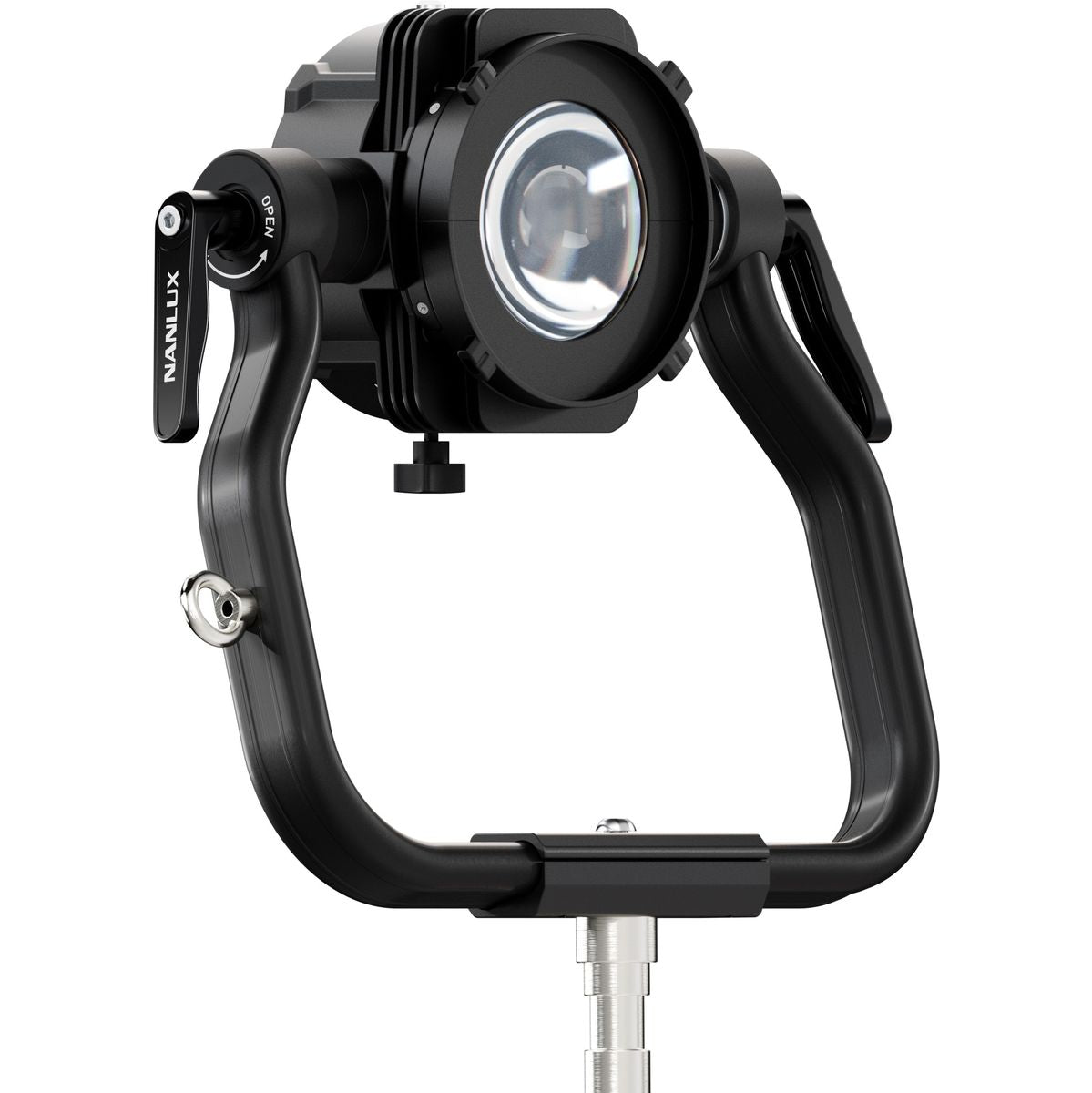

Controlled light beams and projected effects are the result this adapter brings to a Nanlux Evoke setup. The Nanlux Projection Adapter for Evoke Fixtures fits Evoke fixtures with an NL mount and accepts ETC barrels and lenses, adding a projection option to that system. It’s useful for shaping a beam in the studio, putting a defined pool of light on a subject or surface, and creating projection effects on location. An aspheric lens with an optical coating is part of the assembly, supporting an even beam with minimal light loss. A built-in yoke sits at a 15-degree offset, so the fixture can be angled farther down when a target is below the light. The aluminium body has handles for holding the adapter, including with a heavier projection setup, and mounting points for both 16 mm and 28 mm stands. Those details make this a substantial piece of kit rather than a small mount insert; its listed weight is 4,724 g. For Evoke users working with projection optics, the key distinction is straightforward: one adapter combines the NL-mount connection, ETC barrel and lens compatibility, and an integrated yoke.

Why it is useful

• For Evoke fixtures with NL mount: The adapter is specified for Nanlux Evoke lamps that use the NL mount. That makes the intended fixture connection clear when adding projection optics to an Evoke lighting setup.
• Accepts ETC barrels and lenses: The adapter supports ETC barrels and lenses, giving an Evoke setup access to those projection components. That’s useful for producing defined beams and projected patterns rather than relying only on the fixture’s direct output.
• Aspheric, optically coated lens: Its aspheric lens has an optical coating, with an even beam and low light loss as the stated result. This matters when the projection is meant to land cleanly on a chosen area.

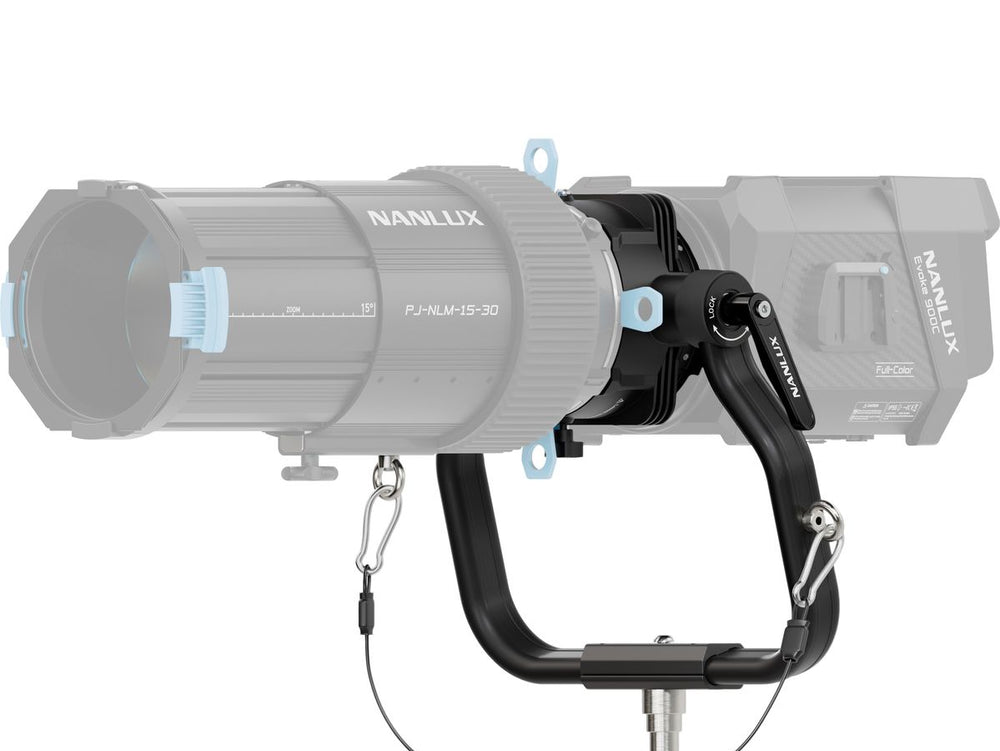

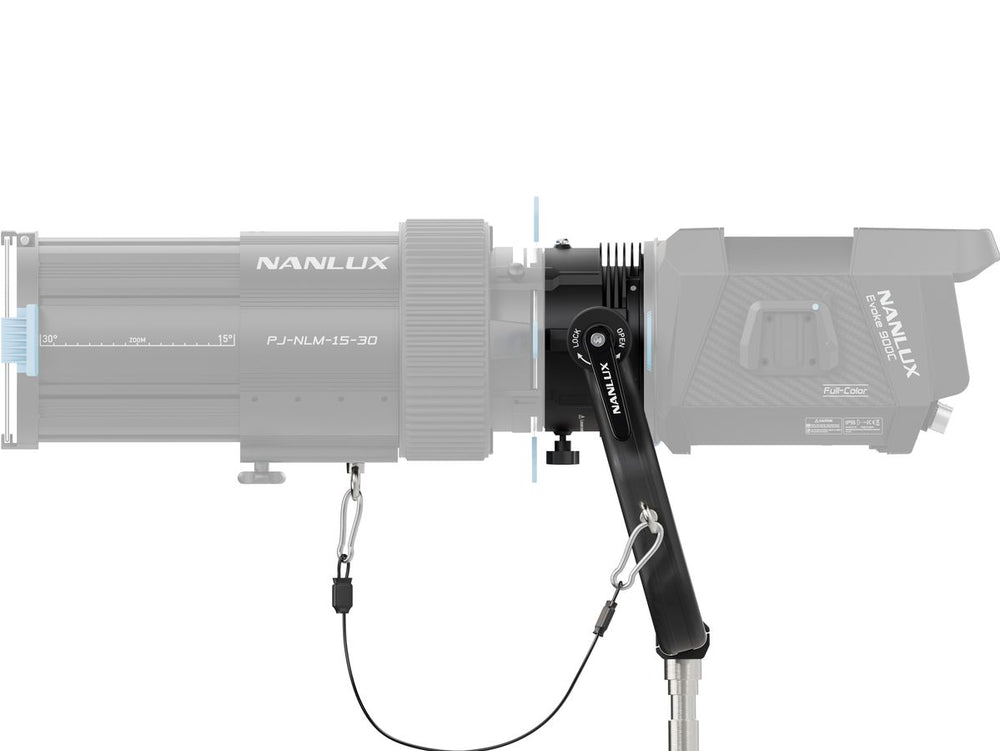

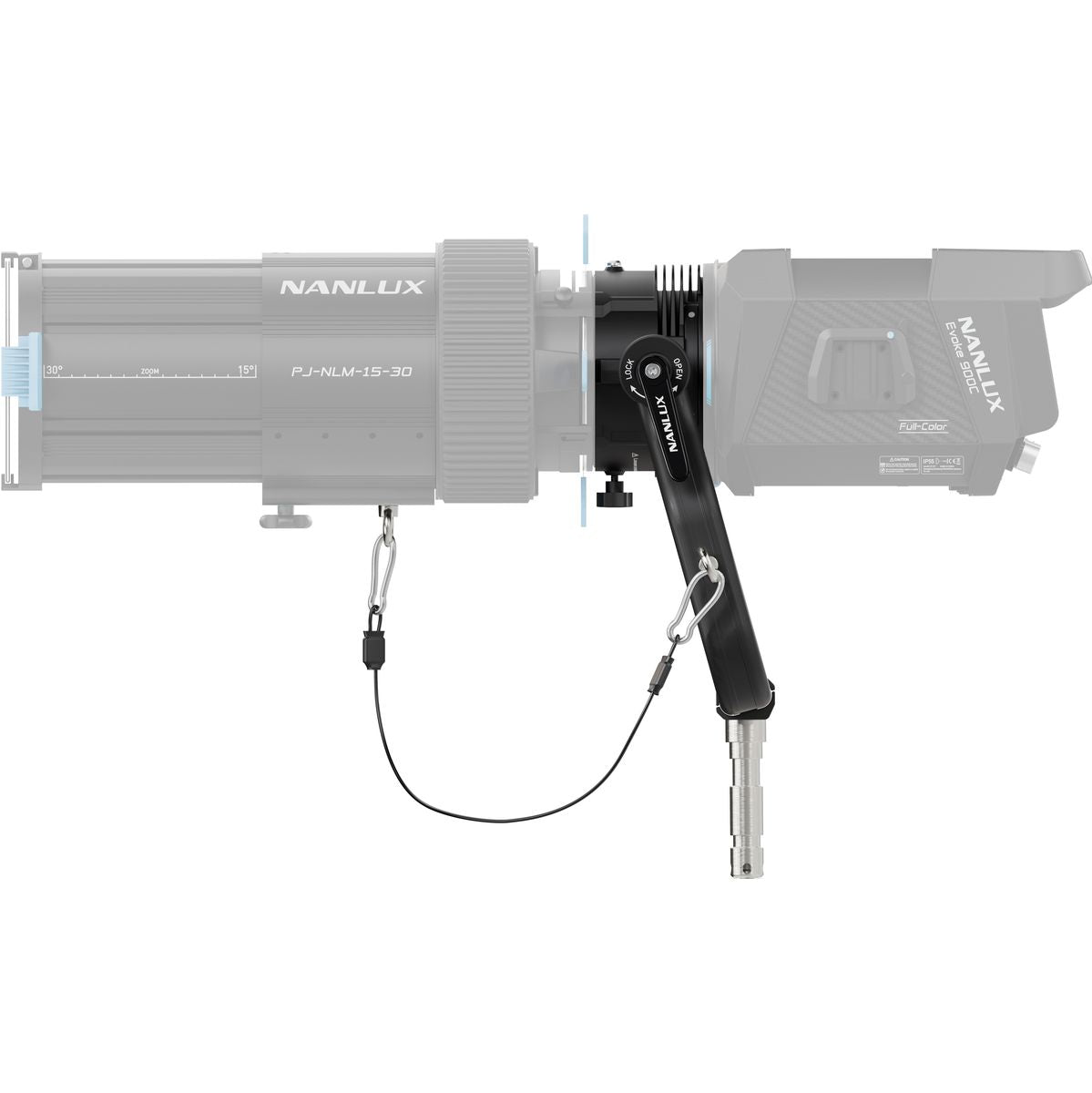

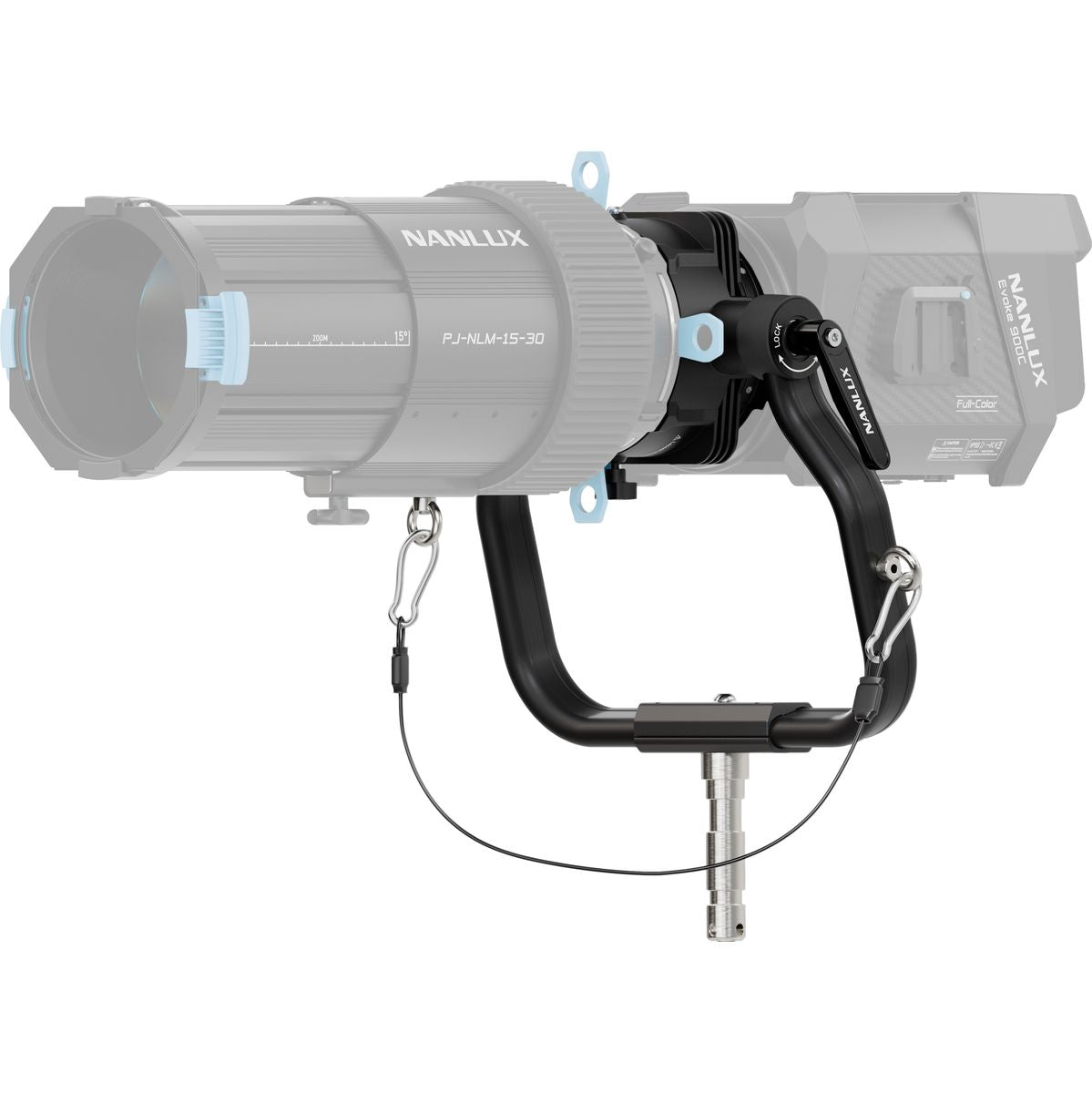

• Yoke with 15° offset: The integrated yoke’s offset allows the fixture to point farther down. That angle is particularly relevant when the light needs to reach a lower target from its mounting position.
• Aluminium housing and handles: The housing is aluminium, and handles are provided for holding the adapter. They’re useful details when working with a heavier projection arrangement in a studio or on location.
• 16 mm and 28 mm stand fittings: The adapter has stand connections for both sizes. This gives the mounting setup two specified fitting options, rather than limiting it to a single stand size.
• Made for studio or location use: The listed construction is intended for use in either setting. The same projection setup can therefore be part of a controlled studio arrangement or a lighting package taken on location.

Good to know

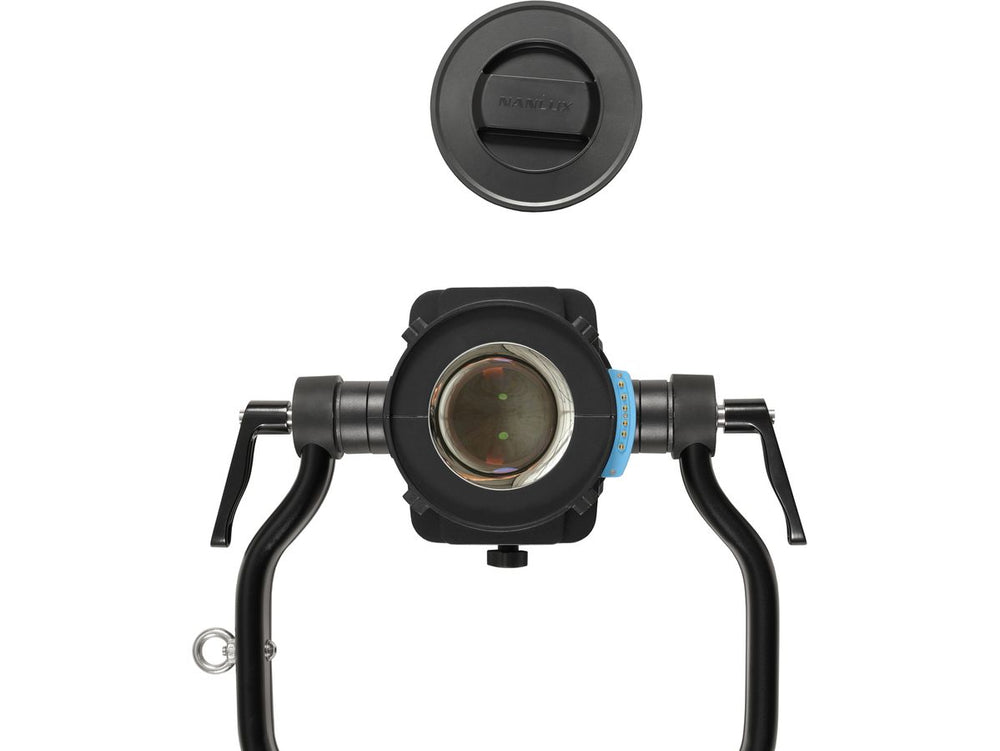

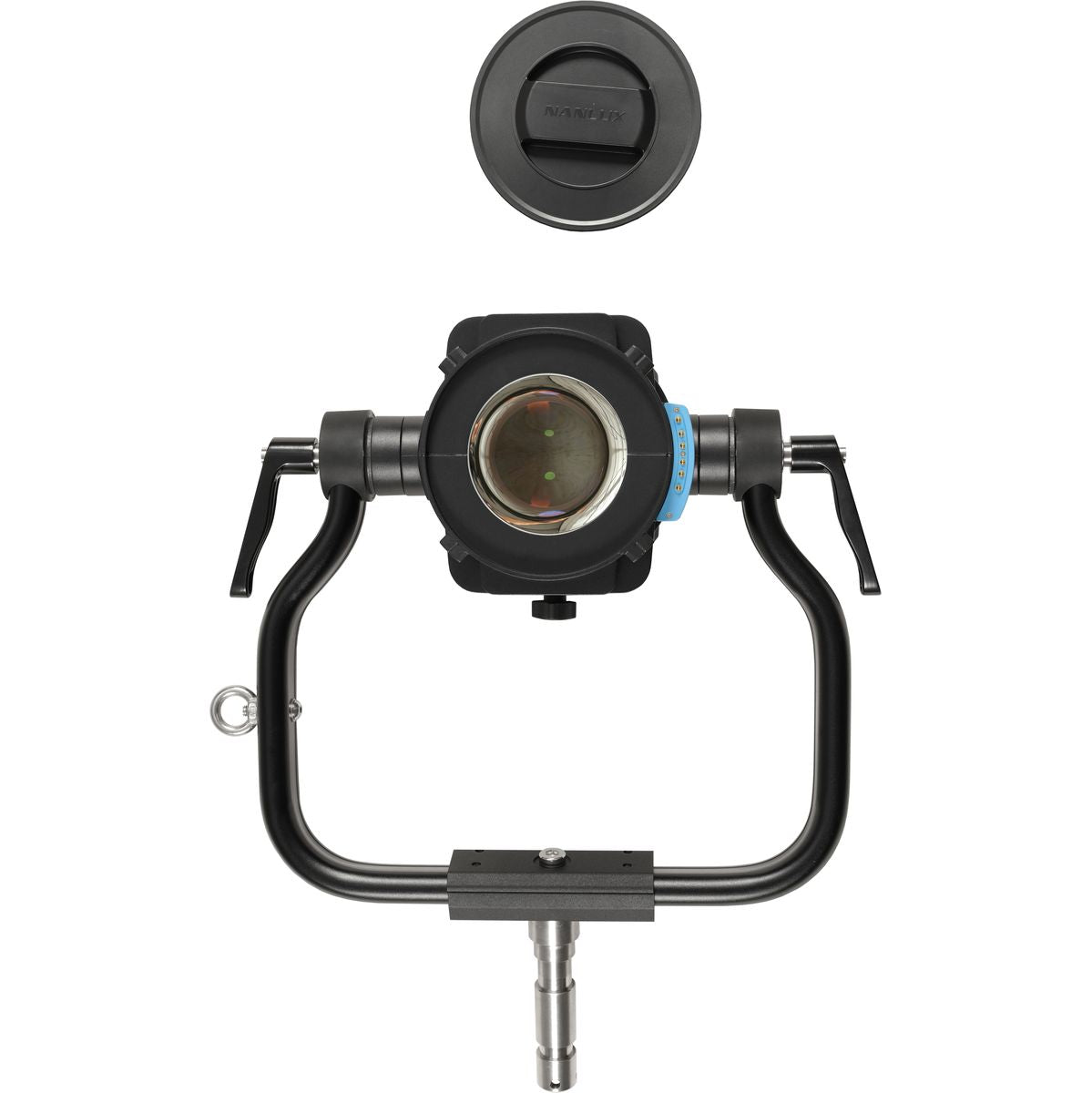

This is a sizeable adapter: it measures 447 × 149 × 524 mm and weighs 4,724 g. Allow for that mass and footprint when planning the projection setup and its support. A plastic protective cap for the rear is included, a useful accessory to keep with the adapter when it’s packed away between shoots.

What's Included

• Nanlux Projection Adapter
• Plastic rear protective cap

Technical Specifications

• Brand: Nanlux
• Model: Projection Adapter for Evoke Fixtures
• Type: Projection adapter
• Compatible fixtures: Nanlux Evoke fixtures with NL mount
• Barrel and lens compatibility: ETC barrels and lenses
• Lens: Aspheric lens with optical coating
• Yoke offset: 15°
• Housing: Aluminium
• Stand fittings: 16 mm and 28 mm
• Weight: 4,724 g
• Dimensions: 447 × 149 × 524 mm
