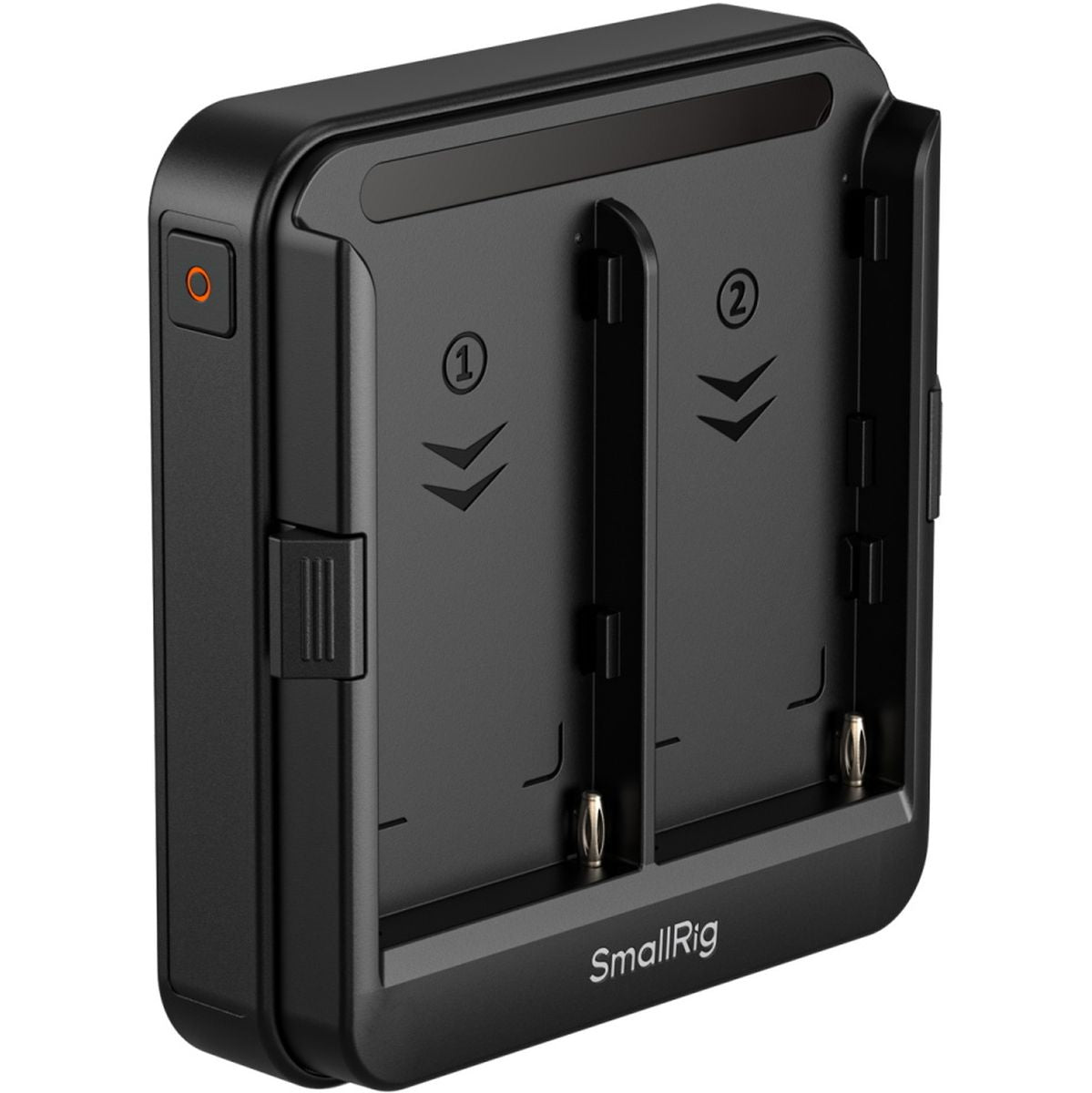

SmallRig 5536 Adapter Plate For NP-F Type Batteries (Supports Ups)

Power Your Gear with Flexible NP-F Battery Support

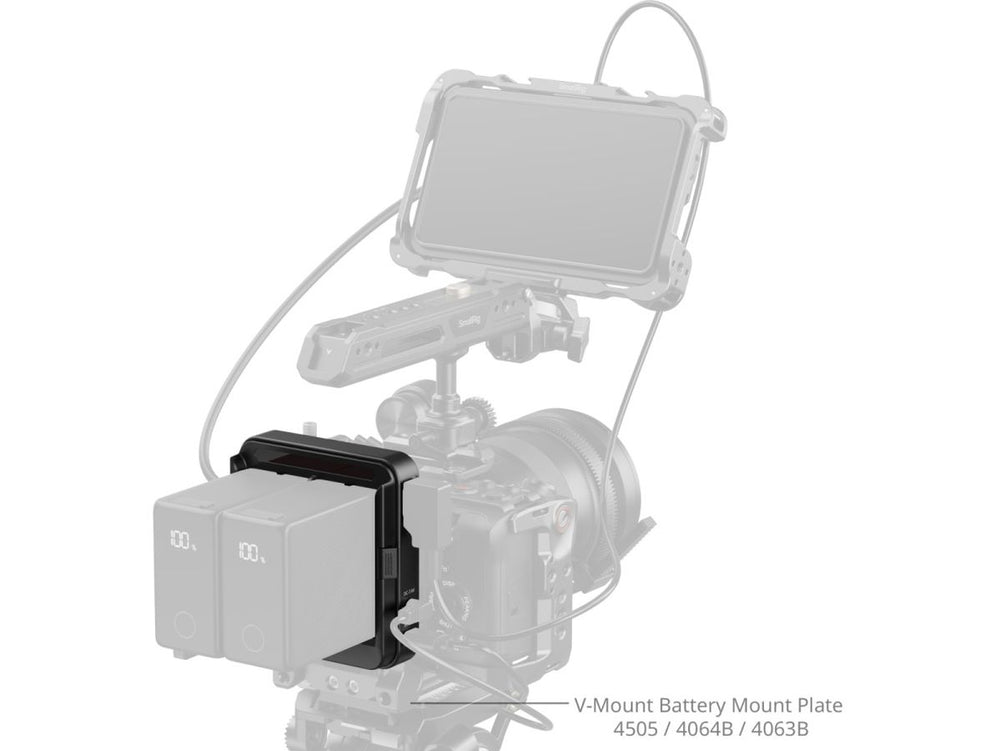

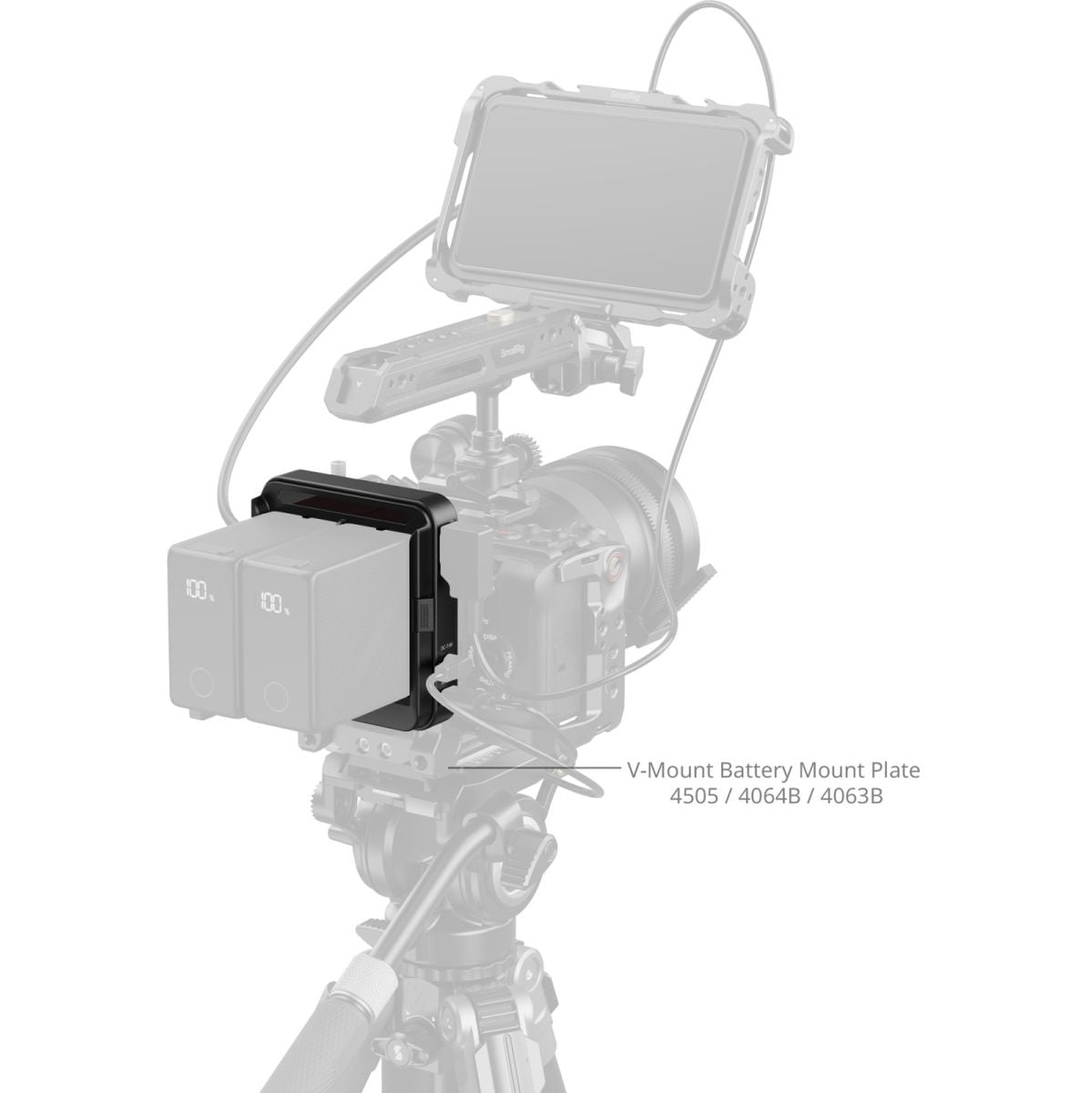

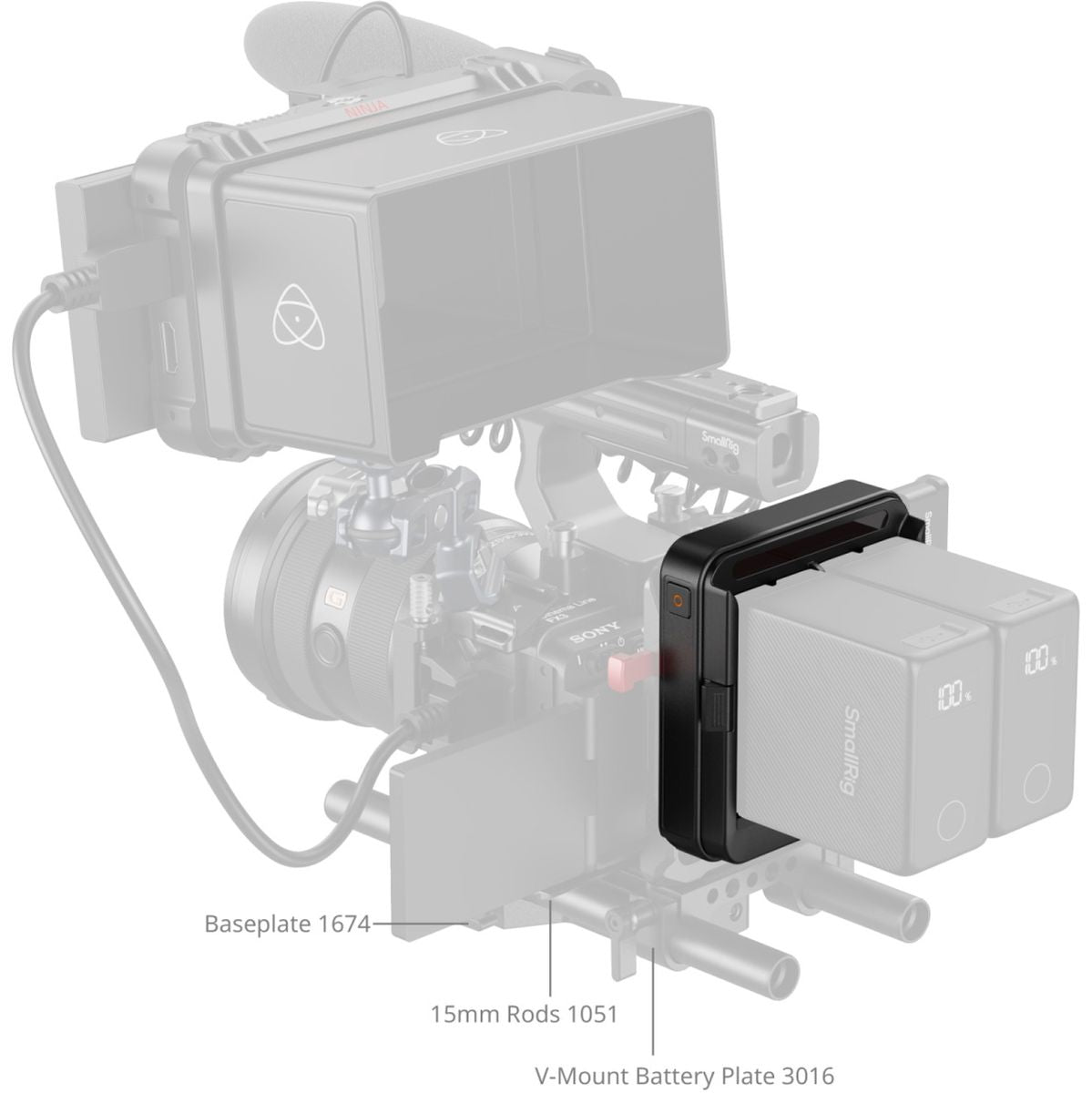

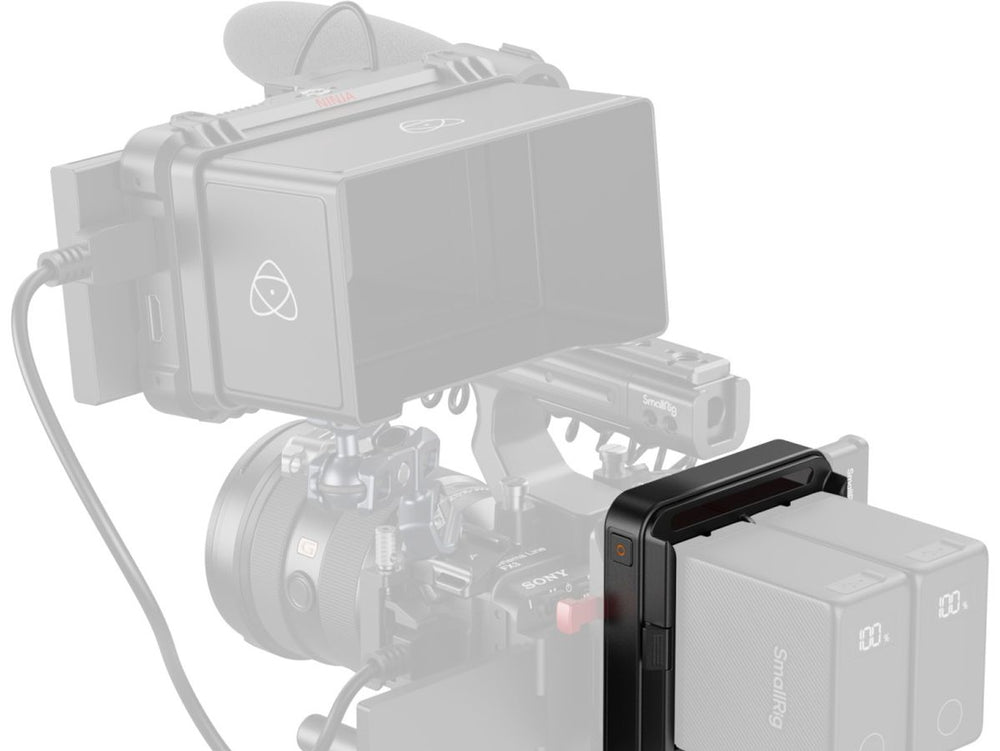

The SmallRig 5536 Adapter Plate is a versatile power solution for cameras and other production equipment. It can be mounted to a V-mount plate or attached using the 1/4"-20 threaded holes on the underside, and it supports one or two NP-F batteries for reliable on-set power.

When two batteries are installed, the hot-swap design helps keep your setup running by letting you replace one battery while the connected devices stay powered. That makes it a practical choice for uninterrupted shooting and continuous power management.

Multiple Outputs for Different Devices

With D-Tap, DC 5521, and USB-C output options, this adapter plate can power several devices at once. The connector layout is designed to avoid interfering with camera operation or top handles, keeping your rig clean and easy to use.

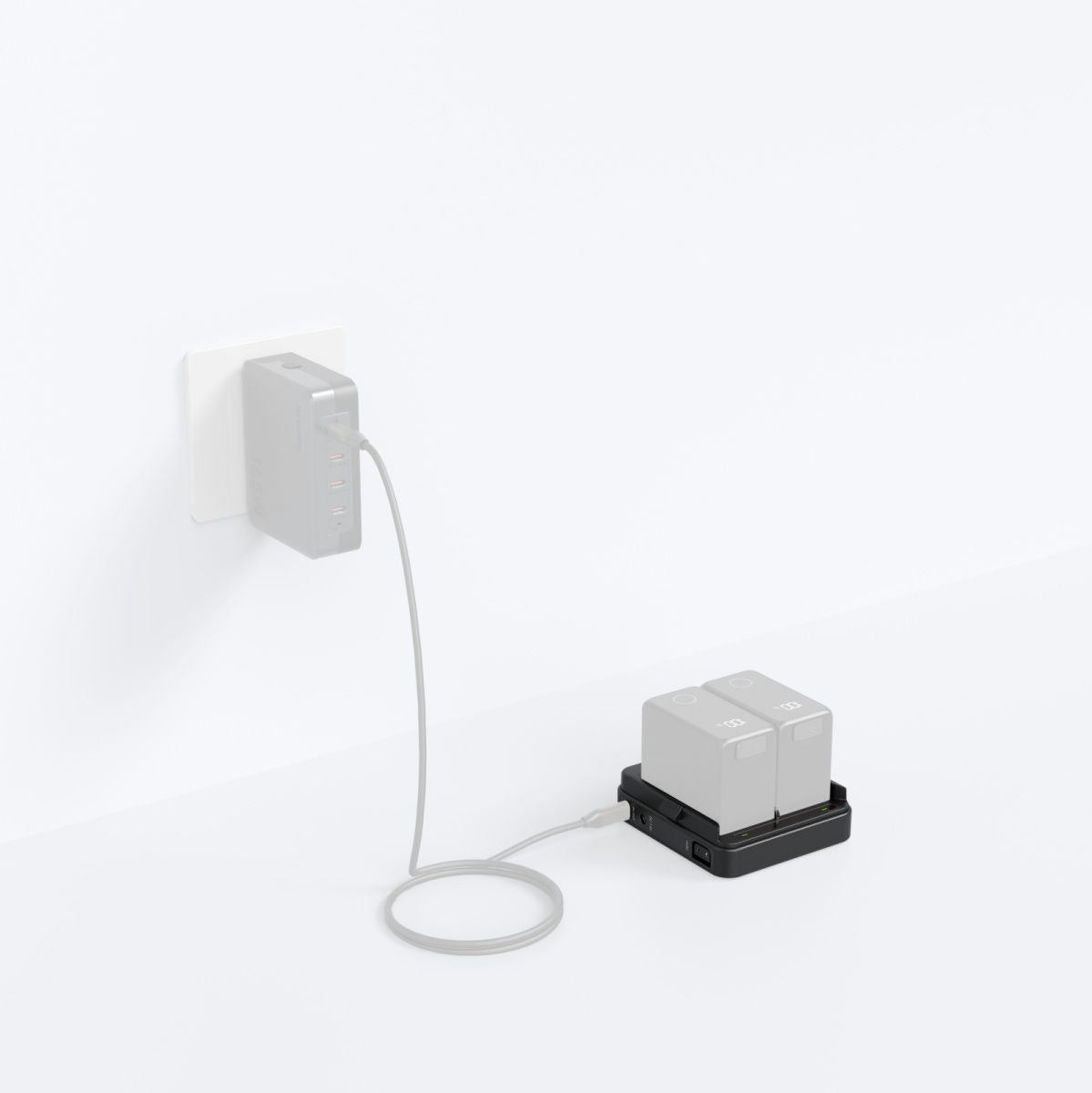

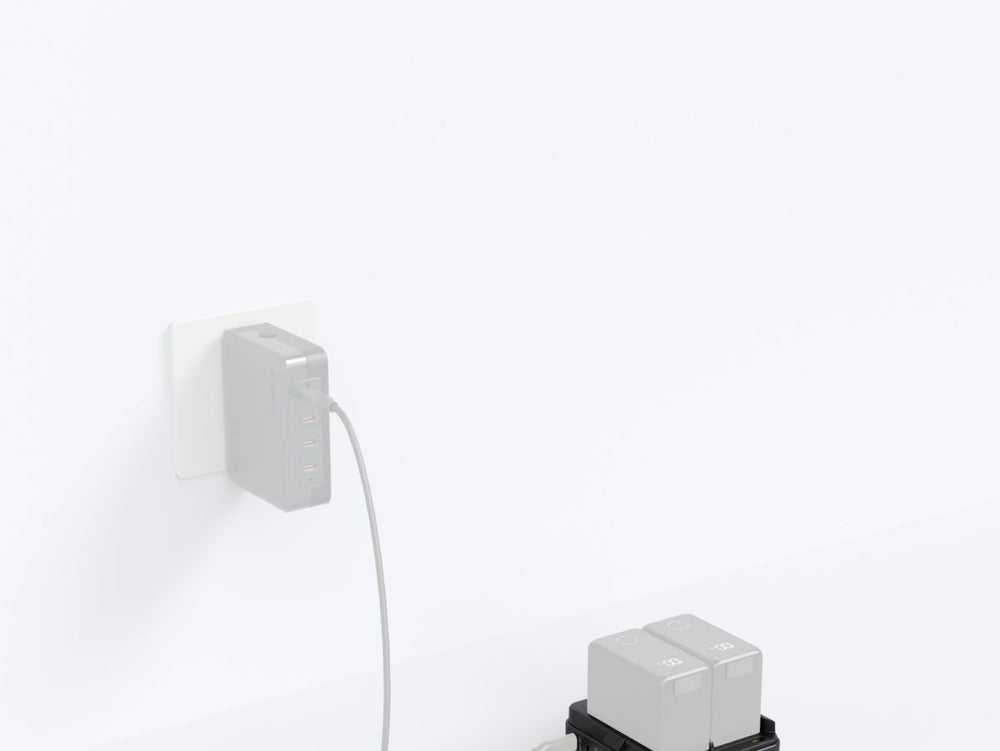

The USB-C port also supports up to 36W input, so the plate can double as a charging station when needed.

Smart Battery and Charging Control

An integrated intelligent management chip helps optimize both discharge and charging performance. During discharge, it prioritizes the battery with the lower charge level first. When voltage drops, it switches to parallel output to support hot-swapping and power-hungry devices.

During charging, the system first charges the battery with the higher remaining charge before moving to simultaneous charging for improved efficiency. Separate LED indicators for each channel provide a quick view of battery status.

Simple Operation

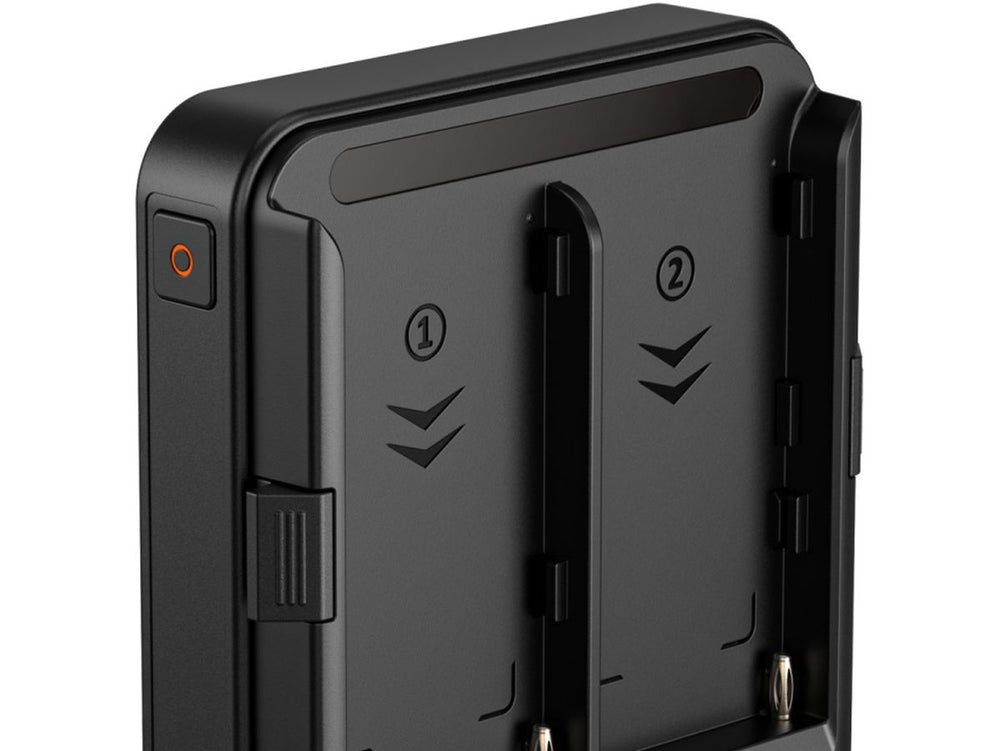

A dedicated power switch makes the plate easy to control. Press once to check status and turn output on, or hold for 2 seconds to shut off all connected devices at once. This simplifies operation and helps conserve power after a shoot.

Key Features

• Supports two NP-F batteries for uninterrupted hot-swap power
• Provides D-Tap, DC 5521, and USB-C outputs for powering multiple devices
• Smart power management optimizes charging and discharging performance
• Independent power switch for quick control of all outputs
• Mounts via a V-mount plate or 1/4"-20 threaded holes
• Compatible with NP-F series batteries

Specifications

• External NP-F battery voltage range: 5.2–8.4V
• Recommended battery capacity: 3400–10200mAh / 7.4V nominal
• D-Tap output only: 14.8V / 2A max
• DC output only: 5.2–8.4V / 3A max
• USB-C input: PD3.0, QC2.0, QC3.0, AFC, DCP, PPS, and Apple 2.4A supported
• USB-C input range: 5V–12V, 0.5–3A
• Power-off current during discharge: D-Tap 2.5A, DC 3A, USB-C 5V/9V ≥3.5A, 12V ≥3.0A
• Operating temperature: Charging 0°C to 45°C; Discharging -15°C to 60°C

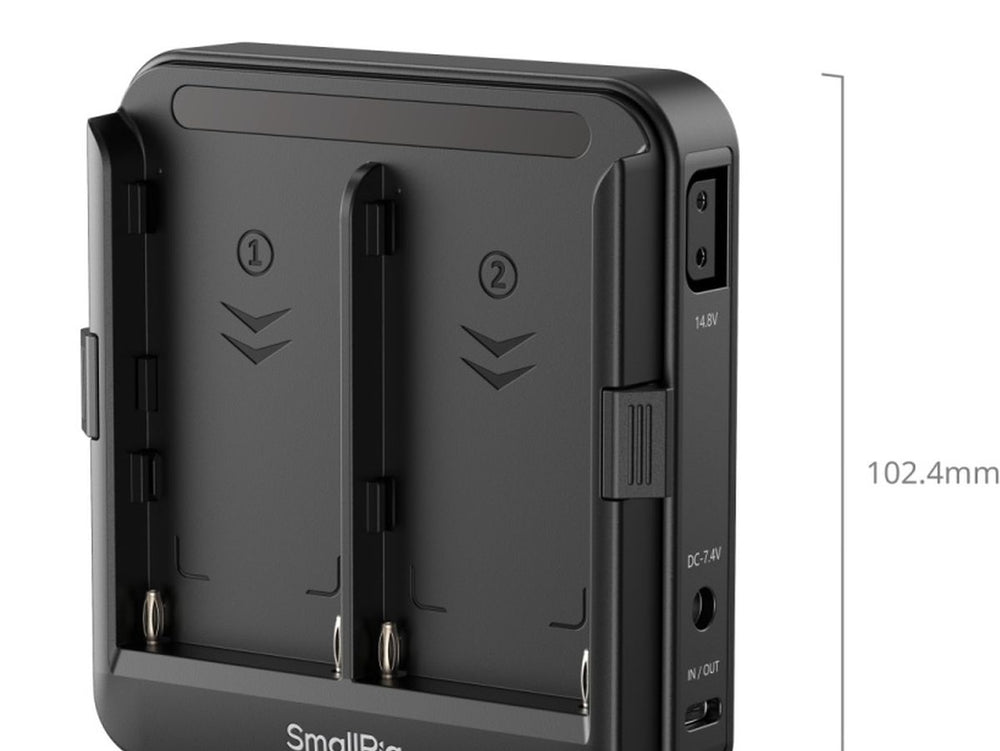

• Dimensions: 102.2 x 93.3 x 27.8 mm
• Weight: 148.6 g

In the Box

• 1x Adapter Plate
• 1x User Manual
