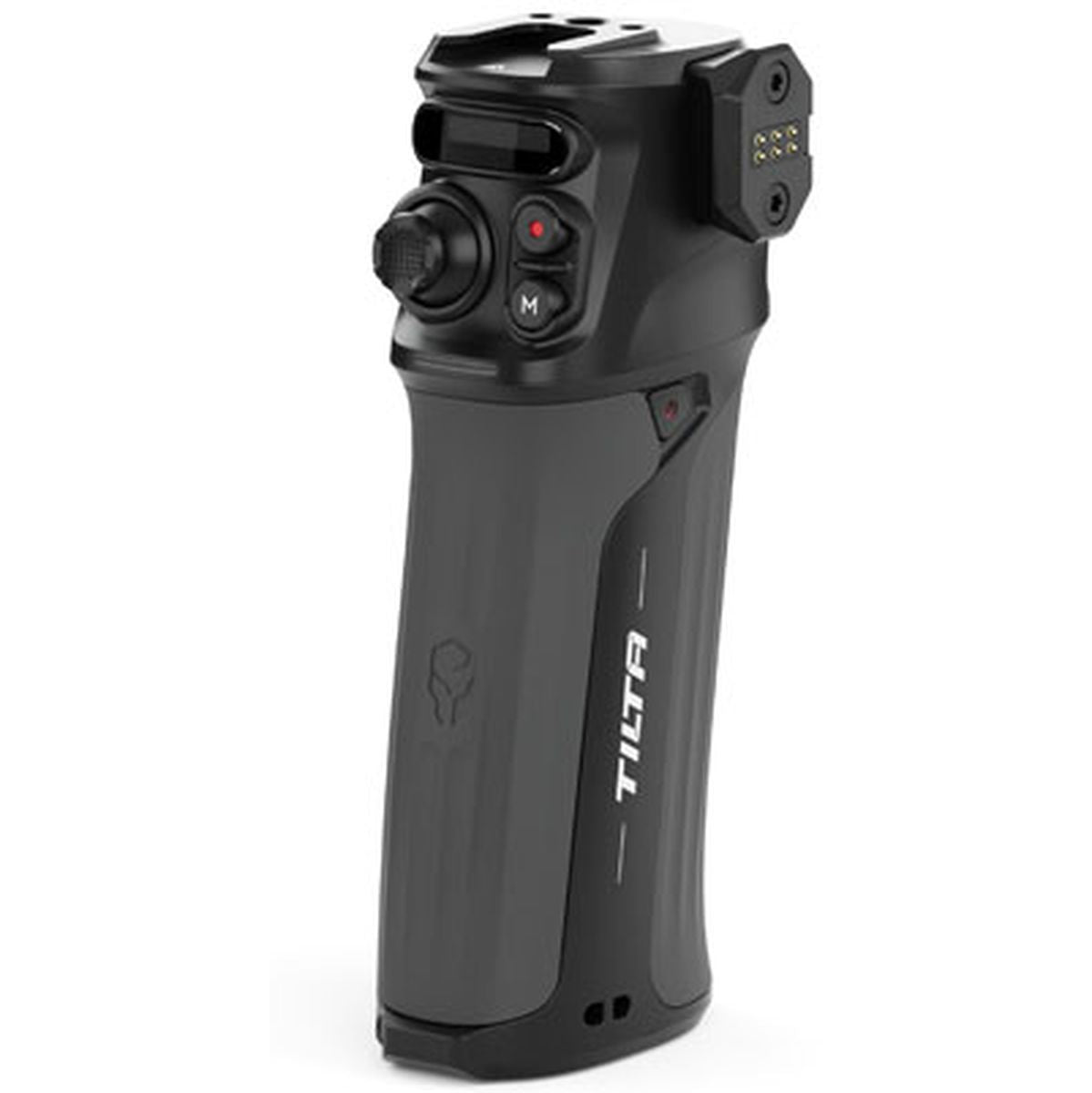

Tilta WLC-T05-CH Nucleus Nano II Control Handle

Tilta WLC-T05-CH Nucleus Nano II Control Handle

Take your camera control setup to the next level with the Tilta Nucleus Nano II Control Handle. Designed for maximum flexibility, it can manage up to four motors for Focus, Iris, Zoom, and Mirage VND when paired with the Nano II system.

Powered by an optional Sony L-series battery such as the F550 or F570, this handle can also supply power to the Nucleus Nano II handwheel, helping extend overall operating time. A front-mounted focus button gives you direct control over Nucleus-series motors, and can even operate the DJI Focus Motor when used with the optional wireless receiver module.

With the same optional receiver, the handle can also connect to the DJI RS2 or RS3 Pro for wireless control. It can be used on its own, separate from the Nano II handwheel, and in that setup it can control two Nucleus-series motors through the focus button and joystick when no gimbal is being operated.

For rig building, the handle includes a 1/4"-20 mounting thread with attachment points, making it ideal for use with an optional Tilta Right Angle Rosette Adapter in a shoulder rig configuration. On the top, a cold shoe receiver allows you to mount an external monitor with the optional Tilta Cold Shoe Mount, creating a streamlined focus-pulling station when used with the handwheel.

Key Features

• Control handle for the Tilta Nano II system
• Supports up to 4 motors for Focus, Iris, Zoom, and Mirage VND
• Powered by an optional Sony L-series battery
• Can pass power to the Nucleus Nano II handwheel
• Front focus button and joystick control
• Compatible with Nucleus-series motors and DJI Focus Motor via optional receiver module
• Wireless connection support for DJI RS2 and RS3 Pro with optional receiver
• 1/4"-20 thread with attachment points
• Cold shoe receiver for monitor mounting
• Material: aluminum alloy and stainless steel
• Color: black

Specifications

• Dimensions: 19.05 x 13.97 x 8.89 cm
• Weight: 500 g

In the Box

• 1x Tilta WLC-T05-CH Nucleus Nano II Control Handle
• 1x USB-C power cable (30 cm)
• 1x User manual
• 1x Allen key

Important Note

The NATO mount is intended only for the Nano II handwheel. Do not attach other accessories to this mount, as this may damage the contact pins.

For best results, Tilta recommends using Sony L-series F550 batteries. Compatibility with other brands is not guaranteed.
