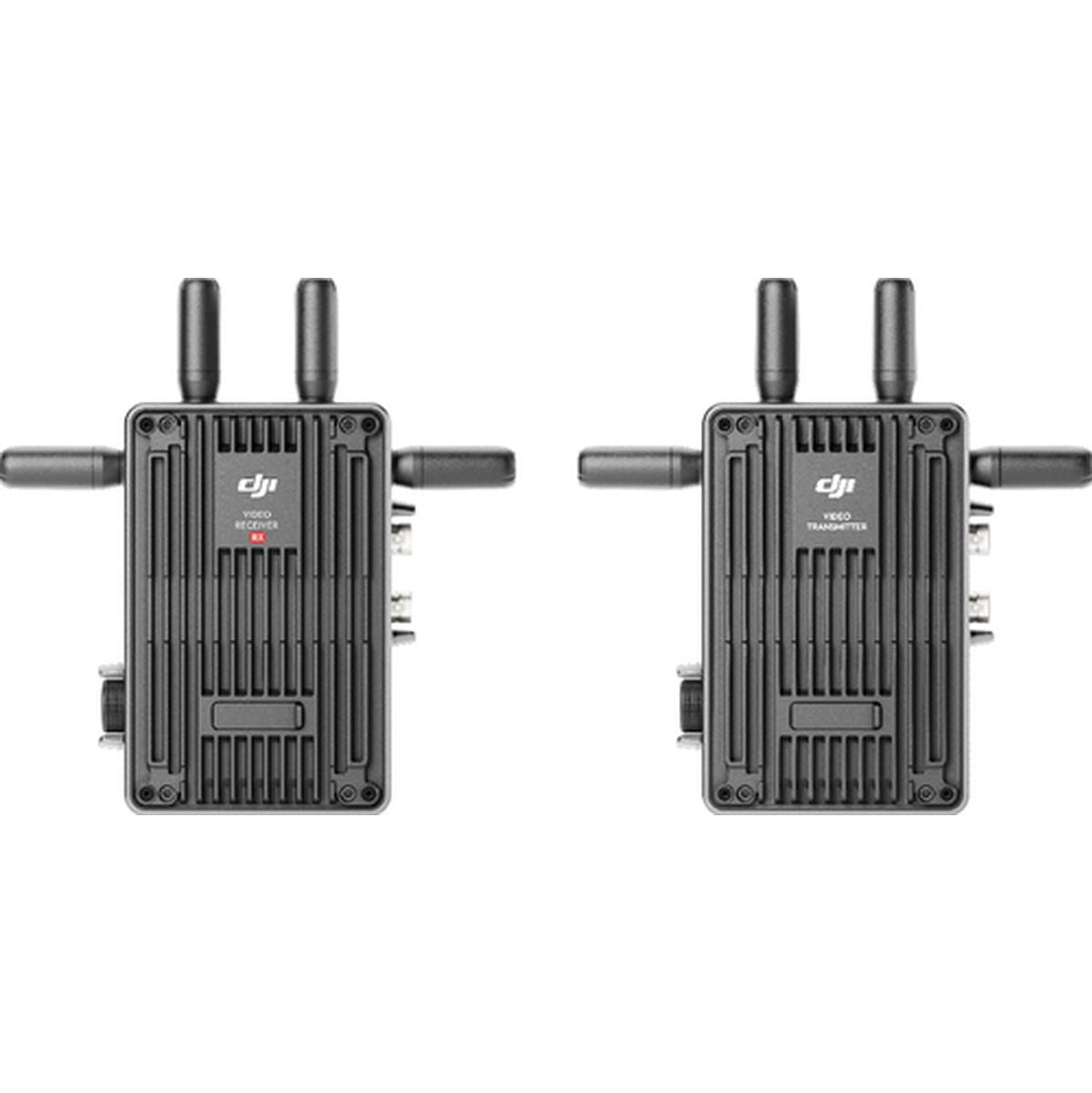

DJI SDR Transmission Combo

DJI SDR Transmission Combo: A Comprehensive Overview

The DJI SDR Transmission Combo is a cutting-edge solution that allows you to send video content from your camera directly to any monitor in real-time. This package includes a transmitter for your camera and a receiver for your monitor, facilitating seamless connectivity for high-quality video broadcasting.

• 0It is extremely versatile, enabling you to connect to an unlimited number of receivers provided they are in Broadcast mode. This feature allows all connected recipients to view the same footage simultaneously.
• The transmission is possible through both SDR and Wifi networks, enhancing flexibility for different usage scenarios.
• It supports 1080p/60fps video specifications via SDI and HDMI with a bitrate up to 20Mbps and minimum latency of as little as 35ms.
• Whether for small set-ups or larger installations, DJI SDR Transmission can be relied upon, owing to its transmission radius of 3km.
• With advanced features like automatic frequency hopping over 2.4GHz, 5.8GHz, and DFS frequency bands, the DJI SDR Transmission adeptly navigates challenging environments by switching to the optimum channel during interference.
• It also supports the metadata transfer from cinema cameras like ARRI and RED via SDI, giving directors, cinematographers, and DIT teams instant access to detailed real-time shooting data.
• Adding to this versatility, it comes with a USB-C port allowing you to connect the receiver to devices such as a smartphone or tablet. Hence, these devices can be used not only as a monitor but also remotely operate your camera, drone, or gimbal.
• The DJI SDR Transmission can be powered either through an NP-F battery, USB-C, or a DJI gimbal like the DJI RS 3/4 (Pro).

What's in the Box?

• DJI SDR Transmission Transmitter
• DJI SDR Transmission Receiver
• USB-A to USB-C Cable (43cm)
• TX Camera Mounting Adapter Plate
• TX Gimbal Mounting Adapter Plate
• Quick Start Guide
• User Guide
