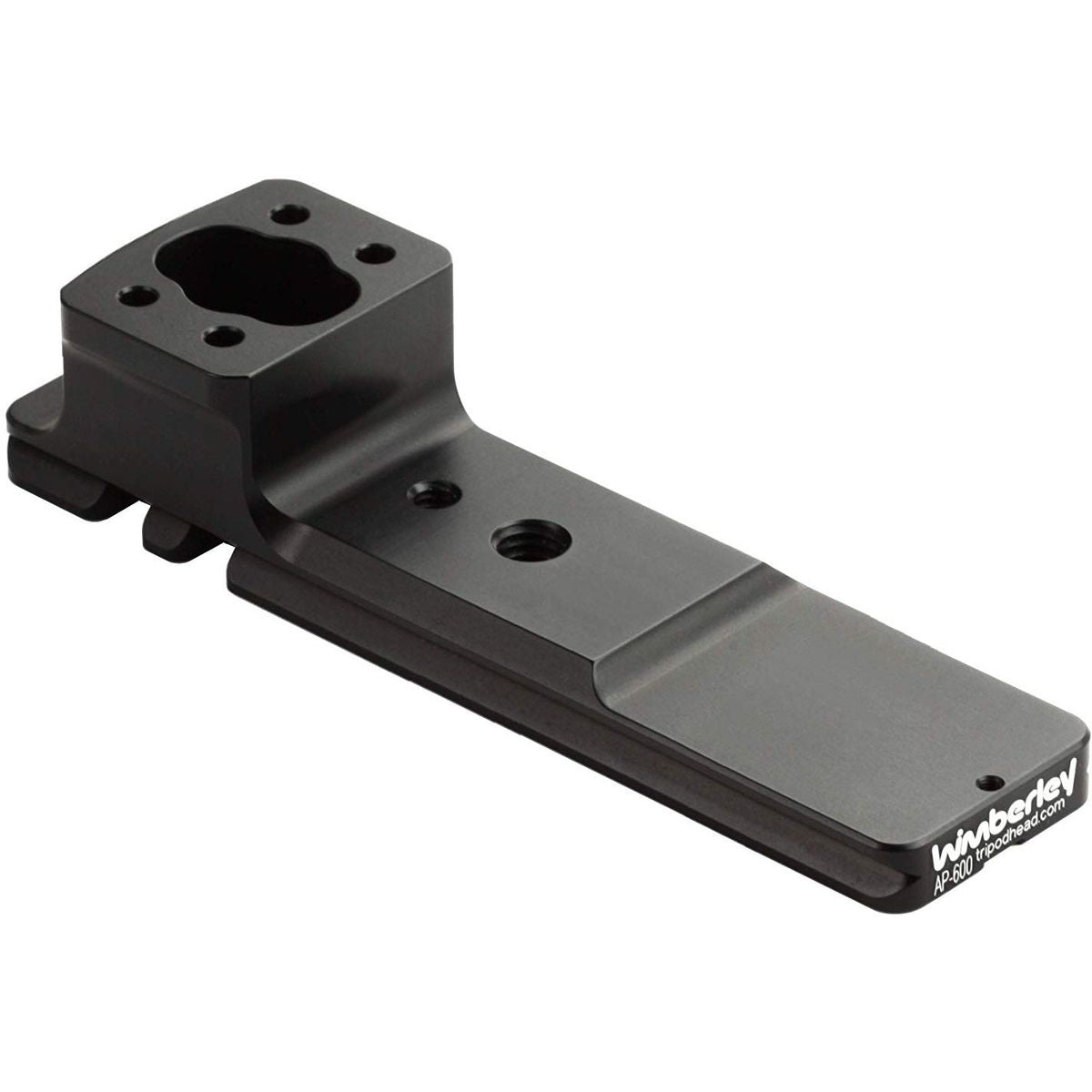

Wimberley AP-600

Wimberley AP-600 - A low-profile Arca-type lens foot

The low-profile shape of the Wimberley AP-600 brings a compatible Canon 600mm f/4 IS III lens closer to the tripod head, improving balance and reducing flex and vibration. Made from black-anodised 6061 aluminium, this replacement foot is for wildlife and bird photographers who use that lens on a tripod. Its Arca-type profile fits a compatible clamp, while the double dovetail rail accepts accessories from either the top or bottom of the foot. That gives you a direct way to position compatible accessories alongside the lens support, rather than relying on a single mounting face. The foot also has 1/4"-20 and 3/8"-16 threaded sockets, so it can attach to tripod heads that use those screw sizes instead of an Arca-type clamp. For long-lens work, the lower mounting position is the key difference from the foot supplied with the lens: it puts the support point closer to the lens and limits movement at the connection. The included safety stops add a further safeguard against the lens sliding out if a clamp is only partly closed. It's a purpose-specific upgrade for stable tripod support, with the mounting options and fittings clearly built around this lens.

A lower, steadier platform

• Replacement foot for the Canon 600mm f/4 IS III: This is a lens-specific part, rather than a general-purpose tripod plate. It replaces the foot supplied with the compatible lens.
• Low-profile construction: The lower position improves balance on a tripod head and reduces flex and vibration compared with the original foot.
• Arca-type dovetail: The foot mounts in a compatible Arca-type clamp, giving the lens a direct connection to a suitable tripod head.
• Double dovetail rail: The top and bottom faces accept accessories, so there are two mounting surfaces available on the foot.
• Threaded sockets: 1/4"-20 and 3/8"-16 sockets provide attachment options for tripod heads without a compatible Arca-type clamp.
• Safety stops: Two stops help prevent the lens from sliding out if the clamp is partly open, adding protection during mounting and adjustment.

What's Included

• Wimberley AP-600 Replacement Foot
• 4 × M4 × 14mm Allen bolts
• 2 × M3 × 6mm Allen bolts
• 3mm T-handle Allen key
• 2.5mm Allen key
• Wimberley AP-600 manual

Technical Specifications

• Brand: Wimberley
• Model: AP-600
• Type: Tripod accessory; replacement lens foot
• Compatible lens: Canon 600mm f/4 IS III
• Mounting profile: Arca-type compatible
• Material: 6061 aluminium
• Finish: Black anodised
• Threaded sockets: 1/4"-20 and 3/8"-16
• Dimensions: 13.72 × 4.32 × 3.05 cm
• Weight: 133.25 g
